Bengbu Doublecircle Electronics Group Co., Ltd.
China Manufacturer with main products: Thick Film Resistor, Metal Film Resistor, High Voltage DC Contactor, Precision Shunt, Motorcycle Resistor |

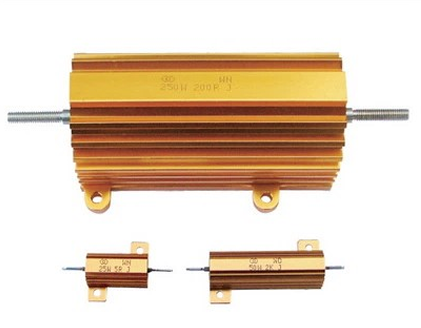

Aluminium Encased Power Wire-Wound Resistors
| FOB Price: | 15.00 - 30.00 USD/Unit |
|---|---|
| Payment Terms: | L/C, D/P, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Anhui in China |
Quick Details
- Resistance: 7.5W-300WN
- Package Type: Surface Mount
- Technology: Wirewound
- Type: Fixed Resistor
- Brand Name: DoubleCircle
- Operating Temperature: -55-+155
- Rated Power: 7.5-300W

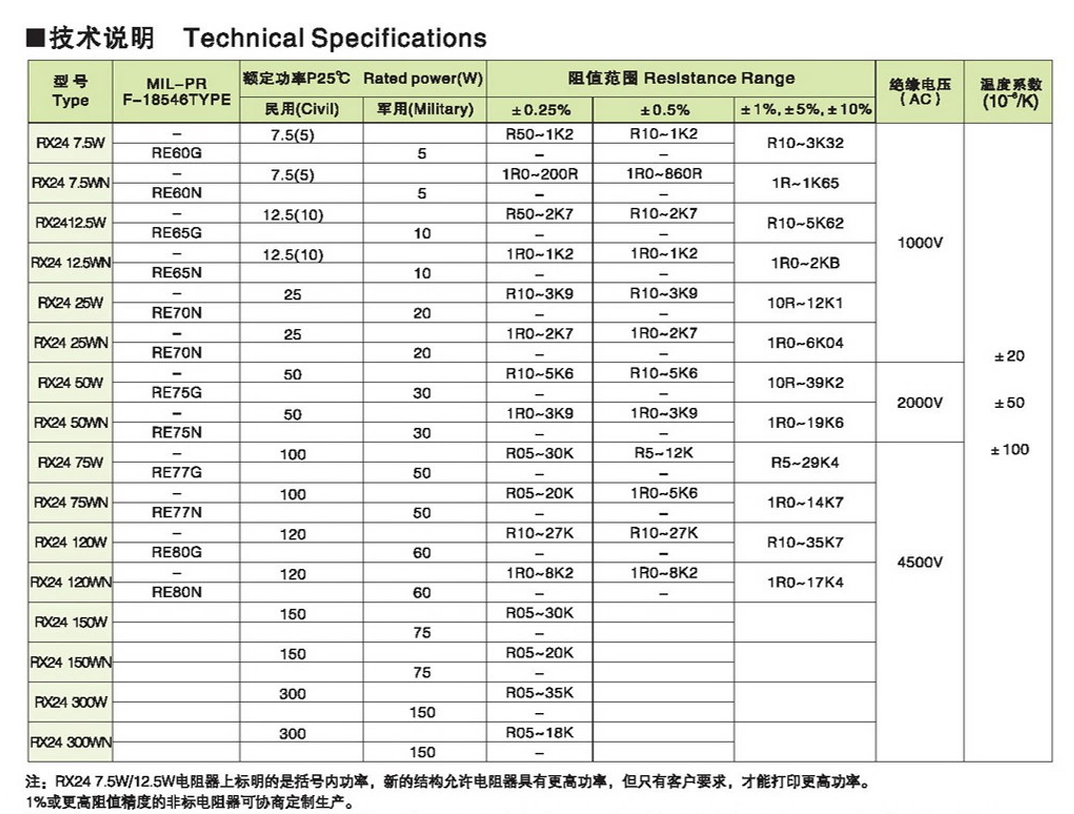

Specifications
the following example is for you reference.
Features:High power and rugged, shock-proofGood heat-sinkLow TCR,and good linearity.
Material Specifications
Element:Copper-nickel alloy or nickel-chromium alloy depending on resistance value
Core:Ceramic,steatite,depending on physical size
Encapsulant:Silico molded materials
Housing:aluminium with hard anodic coating
End Caps:stainless steel
Special Modifications
Some modifications one available on customer request the details as follow:
Terminal configurations and materials
Resistance values and tolerances
Low TCR LOW TCR
Housing contiguration
Thread ofmounting hole
Pre-processing and other additional testing

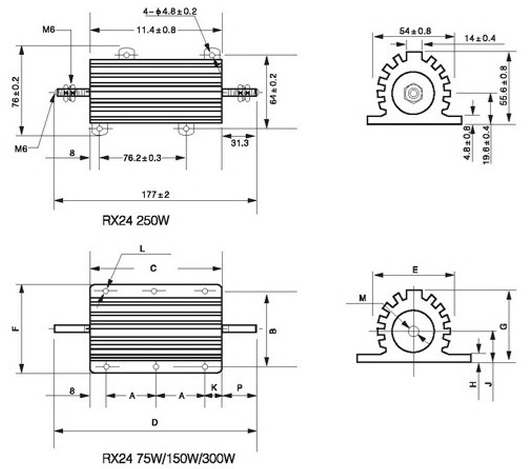

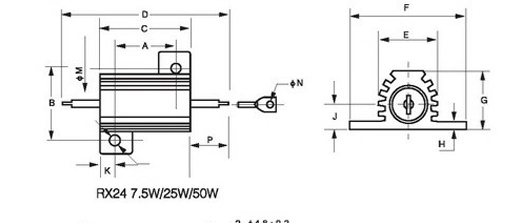

Stardard Terinals:Tinned Copperwires on RX24 7.5W CMEL
RX24 50W Threaded stainless steel terminals on
RX24 100W250W
Part Marking:VTM,Model,Wattage,Value,Tolerance,Date Code
