Tianjin Wenxin Energy Technology Co., Ltd.
China Manufacturer with main products: Casing Pipe, Coupling, Tubing, Pup Joint, Crossover, X-Over, Premium Connection, Tubular |

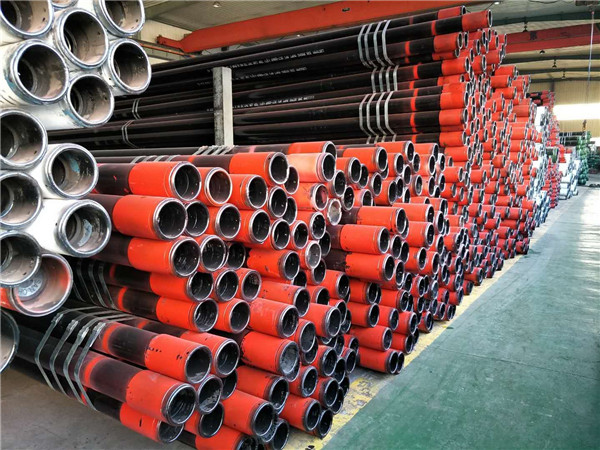

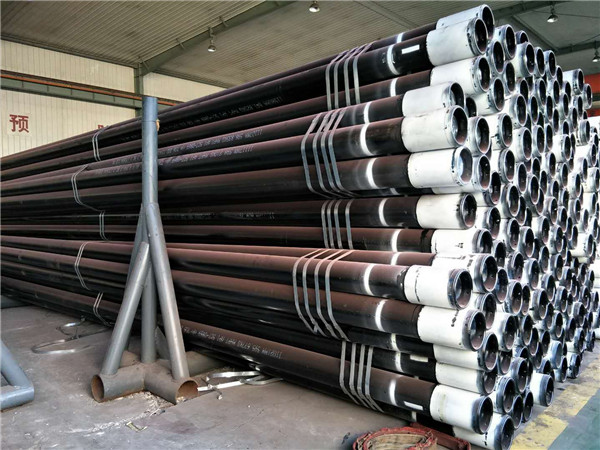

API 5CT 5-1/2 K55/J55/N80/L80/P110 BTC Casing Pipe
| FOB Price: | 1000.00 - 6000.00 USD/Ton |
|---|---|
| Supply Ability: | 100 Ton(s) per Month |
| Shipping: | Container vessel, bulk cargo ship, train, land transportation. |
| Payment Terms: | L/C, D/A, D/P, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Tianjin in China |
| Packaging Details: | Steel band baling,Bulking |
Quick Details
- Section Shape: Round
- Outer Diameter: 4-1/2-20 inch
- Thickness: 5.21-16.13 mm
- Grade: Cr-Mo alloy
- Grade: 12CrMo
- Standard: BS,JIS
- Standard: BS 1139,JIS G3454-2007
- Outer Diameter: 5-1/2"
- Alloy Or Not: Is Alloy
- Special Pipe: API Pipe
- Certification: API
- Technique: Hot Rolled
- Application: Oil Pipe
- Secondary Or Not: Non-secondary
- Material: J55/K55/L80/P110/L8013CR
- Thread Type: BTC/LTC/STC
- Length: R3
Specifications
Introduction
Oil Casing pipe is a type of steel pipe that
Is typically used to Oil well protection tubing.Casing and tubing strings are
the main parts of the well construction. All wells drilled for the purpose of
Oil or gas production (or injecting materials into underground formations) must
Be cased with material with sufficient strength and functionality.
Specification
Size |
4-1/2" ~20" |
Material Grade |
J55\K55\N80\L80\P110\Q125\L80-3Cr\L80-9Cr\L80-13Cr |
Thread Type |
STC\LTC\BTC\Premium Connection |
Length |
R3(10.36-14.63m) |
Product Description
Size |
Outside Diameter(mm) |
Wall Thickness(mm) |
4-1/2" |
114.30 |
5.21-8.56 |
5" |
127.00 |
5.59-12.7 |
5-1/2" |
139.70 |
6.20-22.22 |
6-5/8" |
168.28 |
7.32-12.06 |
7" |
177.80 |
5.87-22.22 |
7-5/8" |
193.68 |
7.62-19.05 |
7-3/4" |
196.85 |
15.11 |
8-5/8" |
219.08 |
6.71-14.15 |
9-5/8" |
244.48 |
7.92-20.24 |
10-3/4" |
273.05 |
7.09-20.24 |
11-3/4" |
298.45 |
8.46-14.78 |
13-3/8" |
339.72 |
8.38-13.06 |
16" |
406.40 |
9.53-16.66 |
18-5/8" |
473.08 |
11.05 |
20" |
508.00 |
11.13-16.13 |
Used
Used in oil well drilling.It is mainly used for Drilling process and after completion of borehole wall support, to ensure that the drilling process and the whole Wells after completion are normal running.
Advantage
1. Our company has specialized in this line
for many years;
2.We can produce the oil Casing and tubing as customers requirement;
3.Unique packing according to customer.
4. Strict quality control and competitive price;
5. Fast delivery;
6. 24hours email reply and good after-sales service.
Package&Delivery
Packade |
Steel band baling,Bulking |
Delivery |
Within 15-120 days(Based on actual Quantity) |
Shippment |
by sea,by air |
