Tianjin Wenxin Energy Technology Co., Ltd.
China Manufacturer with main products: Casing Pipe, Coupling, Tubing, Pup Joint, Crossover, X-Over, Premium Connection, Tubular |

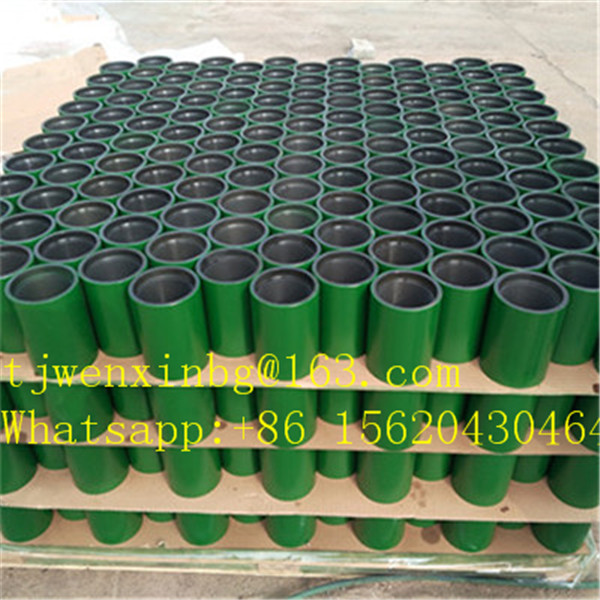

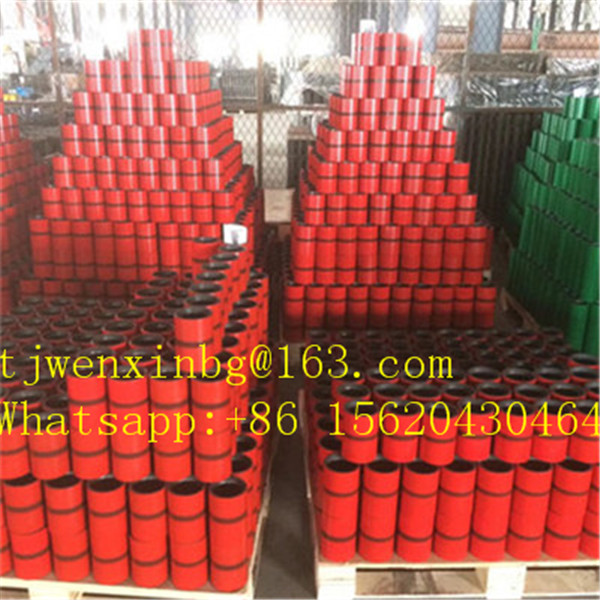

API 5B 2-7/8 J55/K55/N80/L80/13CR Tubing Coupling
| FOB Price: | 6.00 - 100.00 USD/Piece |
|---|---|
| Supply Ability: | 10,000 Piece(s) per Month |
| Shipping: | Container vessel, bulk cargo ship, train, land transportation. |
| Payment Terms: | L/C, D/A, D/P, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Tianjin in China |
| Packaging Details: | In Fumigation-free wooden cases,Wooden pallet packaging |
Quick Details
- Section Shape: Round
- Outer Diameter: 1.05-4-1/2 inch
- Thickness: 2.87-16 mm
- Grade: A53-A369
- Grade: A106(B,
- Standard: GB
- Standard: GB 13296-2007
- Outer Diameter: 2-7/8"
- Alloy Or Not: Is Alloy
- Special Pipe: API Pipe
- Certification: API
- Technique: Hot Rolled
- Application: Oil Pipe
- Secondary Or Not: Non-secondary
- Material: J55/K55/N80/L80/P110/L8013CR
- Thread Type: NUE/EUE/Premium Connection
- Size: API 5CT/API 5B
Specifications
Introduction
NUE Thread Couplings are short lengths of
Pipe used to connect 2 joints of tubing.They come with painted colour codes on
Their external surface to indicate their grades.Couplings are manufactured
According to API 5CT and 5B specifications.
Specification
Size |
1.050" ~4-1/2" |
Material Grade |
J55\K55\N80\L80\P110\Q125\L80-9Cr\L80-13Cr |
Thread Type |
NUE |
Product Description
Size |
Outside Diameter(mm) |
Weight(kg) |
1.050" |
33.35 |
0.23 |
1.315" |
42.16 |
0.38 |
1.660" |
52.17 |
0.59 |
1.900" |
55.88 |
0.56 |
2-3/8" |
73.02 |
1.28 |
2-7/8" |
88.90 |
2.34 |
3-1/2" |
107.95 |
3.71 |
4" |
120.65 |
4.35 |
4-1/2" |
132.08 |
4.89 |
Main Feature
1.High Precision in Size and shape
2.Good Corrosion resistance
3.High Collapse strength
4.Excellent Comprehensive mechanical properties
5.High Connection strength and salability
6.Constant Mechanical properties at high temperature
Advantage
1.Full-set Quality control
2.Strict Quality inspection
3.Tight Tolerances
4.Technology Support
5.as International standard
6.Good quality and prompt delivery
Package&Delivery
Packade |
in Fumigation-free wooden cases,Wooden Pallet packaging |
Delivery |
Within 15-75 days(Based on actual quantity) |
Shippment |
by sea,by air |
