RF Connectors MMCX Female SMT-6 for PCB Cable

FOB Price:	0.20 - 0.50 USD/Piece
Payment Terms:	T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Quick Details

Product Specification

1, Product Description

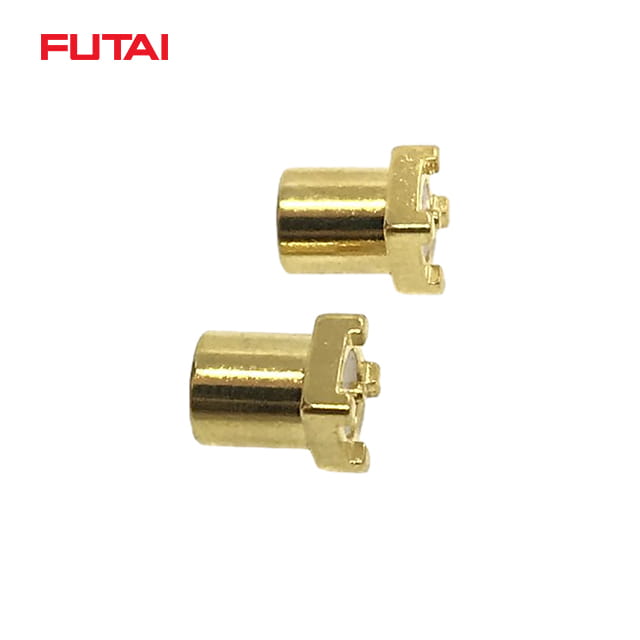

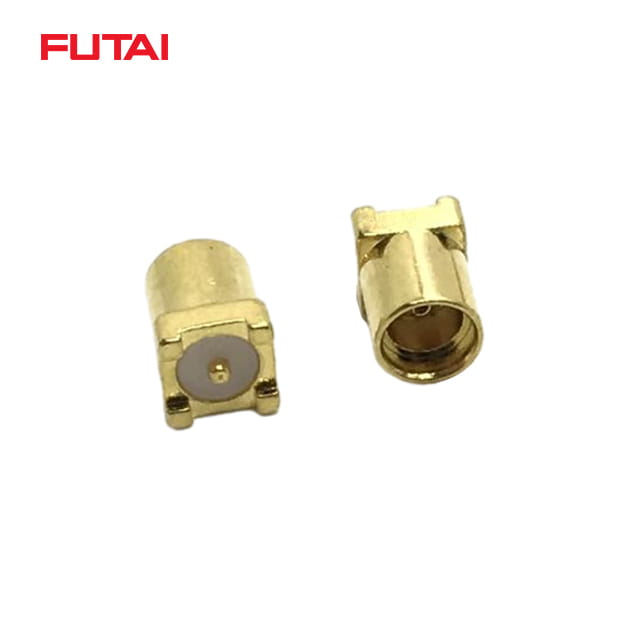

Connector Name: MMCX Female

Mount Method: PCB

2, Electrical

Frequency Range: DC~6GHz

V.S.W.R:≤1.25

Impedance:50Ω

Insertion Loss:≤0.15dB

Centre Conductor Retention Range: ≥0.25 N

Coupling nut Retention Force:≥180 Nq

Durability(mating):≥500(cycles)

Max. Input Power (W):50

3, Material & Plating

Center pin conta: Brass Berylliumcopper/ Gold Plating

Outer contact & Body: Brass H59-1/ Gold Platin

Dielectric Insulator:PTFE

4, Material & Plating

Operating Temperature:-40℃ to +85℃

Storage Temperature:-40℃ to +85℃

Substance Compliance:RoHS

Weight:35g

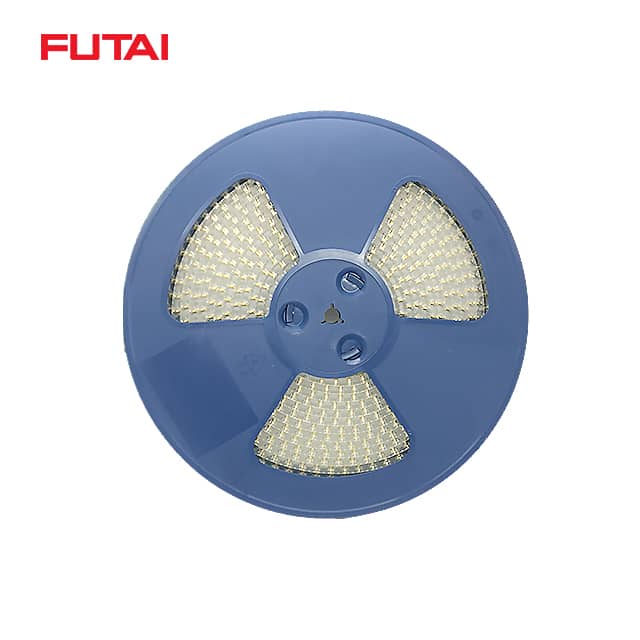

Package Type: 5000PCS RF Connectors MMCX Female SMT6 for PCB Cable
