>Products Catalog > WH-HX Serious Impact Crusher Tire Type Mobile Crushing & Screening Machine for Mining & Gravel with High Output
WH-HX Serious Impact Crusher Tire Type Mobile Crushing & Screening Machine for Mining & Gravel with High Output
| FOB Price: | 10000.00 - 60000.00 USD/Set |
|---|---|
| Supply Ability: | 999 Set(s) per Year |
| Shipping: | dalian f FOB/CIF |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Liaoning in China |
Quick Details
- After-sales Service Provided: Overseas third-party support available
- Brand Name: willsmachine
- COLOR: all
- name: mpact crusher tire type mobile crushing and screening machine
- Weight: 23t
- Model Number: WM-HX938F1210,WM-HX938F1214,WM-HX11
Specifications
Products Description:

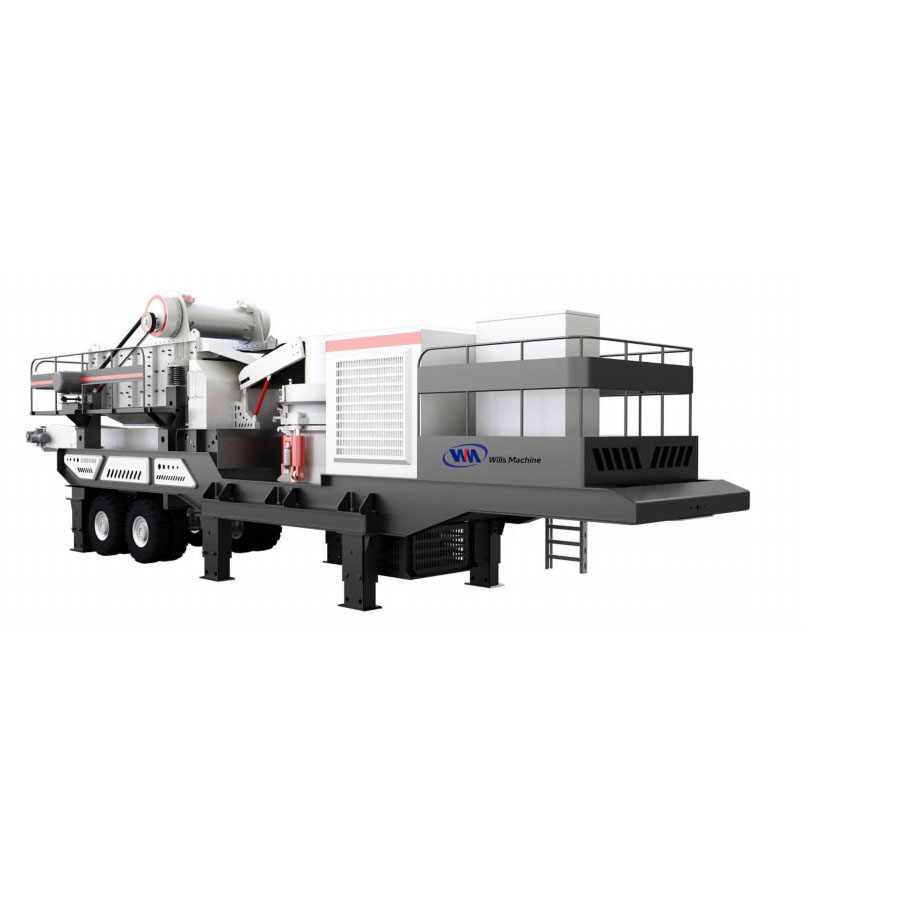

WH-HX series Innovative Tire Mover surpasses traditional equipment by being fully truck-mounted, dramatically reducing the transportation and installation process, ensuring that production can start quickly on site and maintaining a clean and orderly project environment. Its unique truck-mounted chassis design eliminates the need for a concrete base, and on-site installation requires only a power supply to start production. Moreover, the mobile station can be quickly and flexibly transferred to various terrains and flexible layouts to enhance operational efficiency.
WH-HX series tire type mobile production line comprehensively covers the application field of hard rock, soft rock and construction waste treatment with the processing demand of 100-300 tons per hour. the overall shape of the mobile station is beautiful, fine workmanship, equipped with new technology host, stable and reliable performance, high output....
We believe that WH-HX serious tire type mobile crushing and screening machine offers an unbeatable combination of quality, performance, and value. If you have any questions about this product or would like to learn more about how it can benefit your business, please don't hesitate to contact us. We are dedicated to providing excellent customer service and helping our customers achieve their business goals.
Thank you for considering WH-HX serious tire type mobile crushing and screening machine. We look forward to the opportunity to work with you and help you achieve success.
Product Parameters:
| Model | WM-HX938F1210 | WM-HX938F1214 | WM-HX1149F1315 | WM-HX938F1110 | WM-HX1349F1315 |
| Transportation lenght(mm) | 12000 | 12000 | 13900 | 15450 | 15450 |
| Transportation Width(mm) | 2550 | 2550 | 2900 | 2950 | 2950 |
Transportation Height(mm) |
3900 | 3900 | 4450 | 4500 | 4500 |
| Maximum Lenght(mm) | 12500 | 12500 | 13900 | 15450 | 15450 |
Maximum Width(mm) |
3250 | 3260 | 3250 | 3250 | 3250 |
Maximum Height(mm) |
5100 | 5200 | 5200 | 5200 | 5200 |
Weight (t) |
39 | 44 | 54 | 62 | 62 |
Impact crusher |
PE-1210 | PE-1214 | PF-1315 | HD1110 | HD1315 |
| Maximum Feeding Size(mm) | 350 | 350 | 500 | 400 | 700 |
Capacity (t/h) |
70-130 | 100-180 | 130-250 | 112 | 280 |
Vibrating Feeder |
ZSW950x3800 | ZSW950x3800 | ZSW110x4900 | ZSW130x4900 | ZSW130x4900 |
Main Belt Conveyor |
B800x8.5M | B800x8.5M | B1000x9.5M | B800x11M | B1200x11M |
S de-opening Belt conveyor(optional) |
B500x3.2M | B500x3.2M | B650x4M | B650x4M | B650x4M |
Genset(Optional) |
320KW | 320KW | 400KW | 320KW | 440KW |
Iron separator(optional) |
RCYD(C)-8 | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-8 | RCYD(C)-12 |
