Ruihai Chiler Co., Ltd.
China Manufacturer with main products: Industrial Chillers, Air Cooled Chillers, Scroll Water Chillers, Screw Water Chillers, Water Cooled Chillers, Cooling Towers, Laser Chillers |

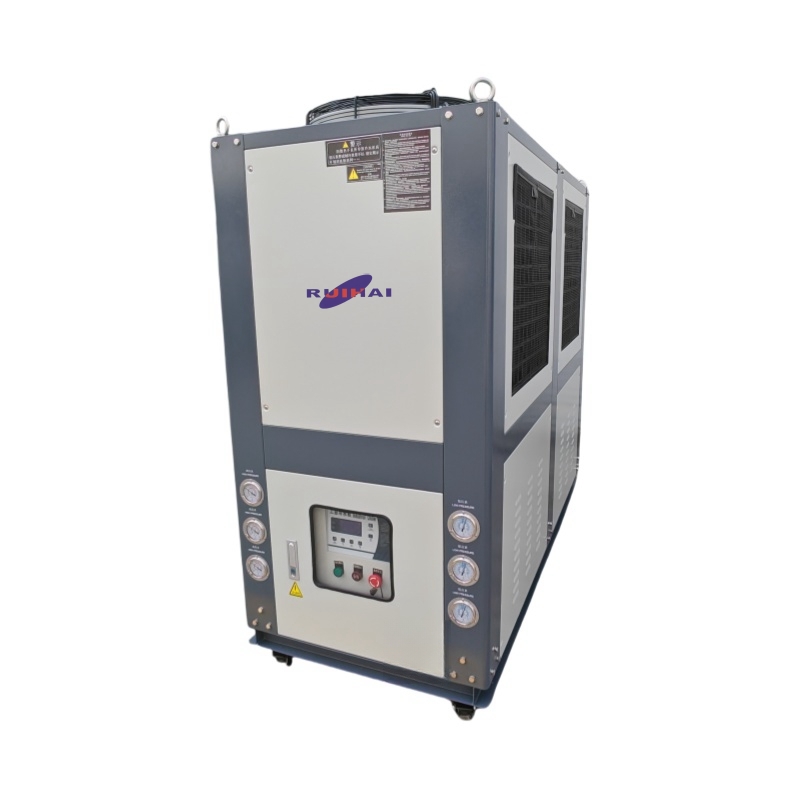

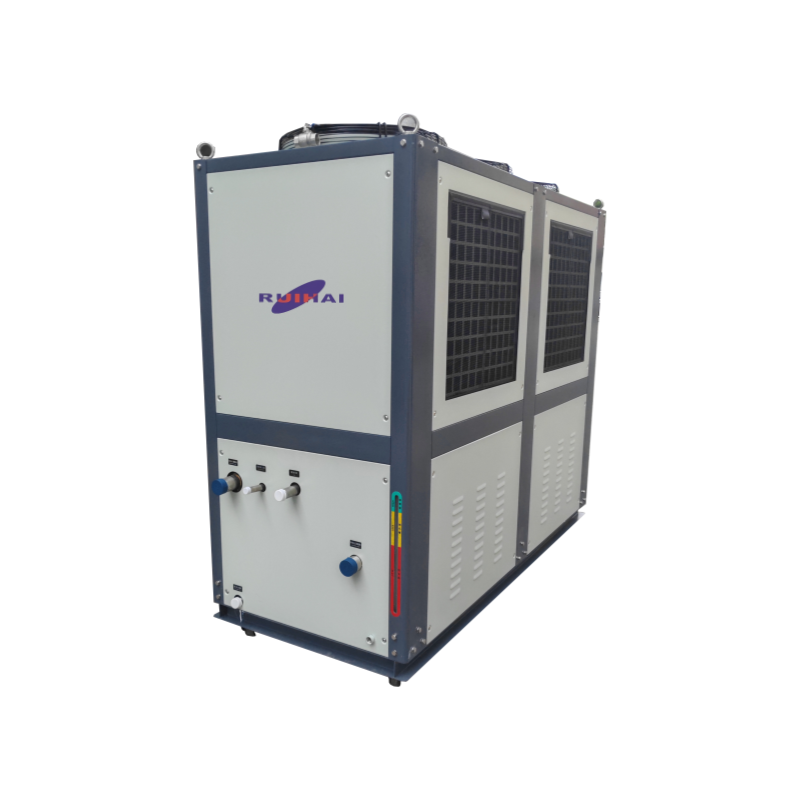

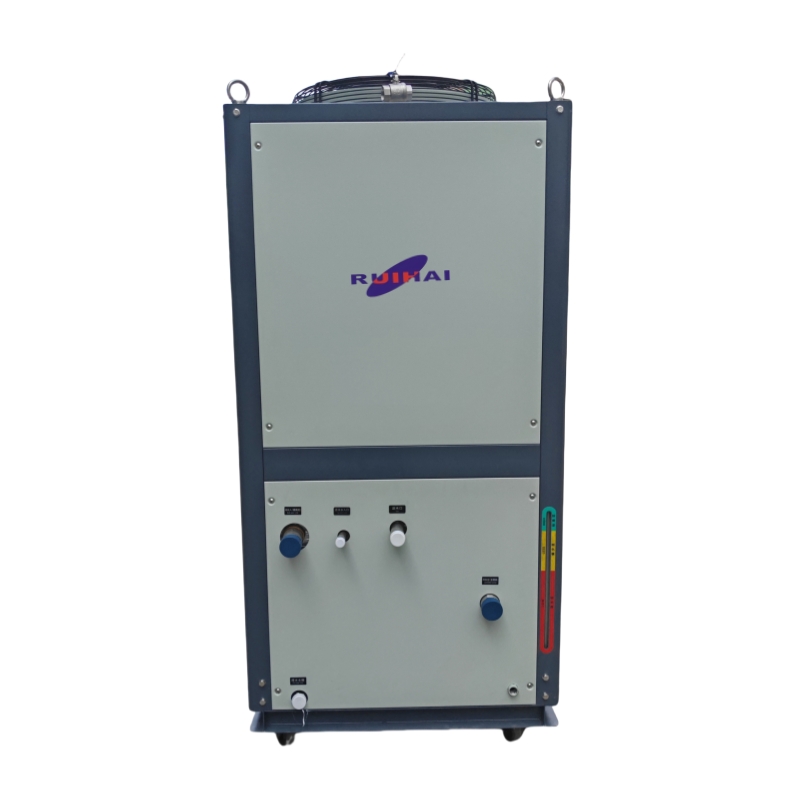

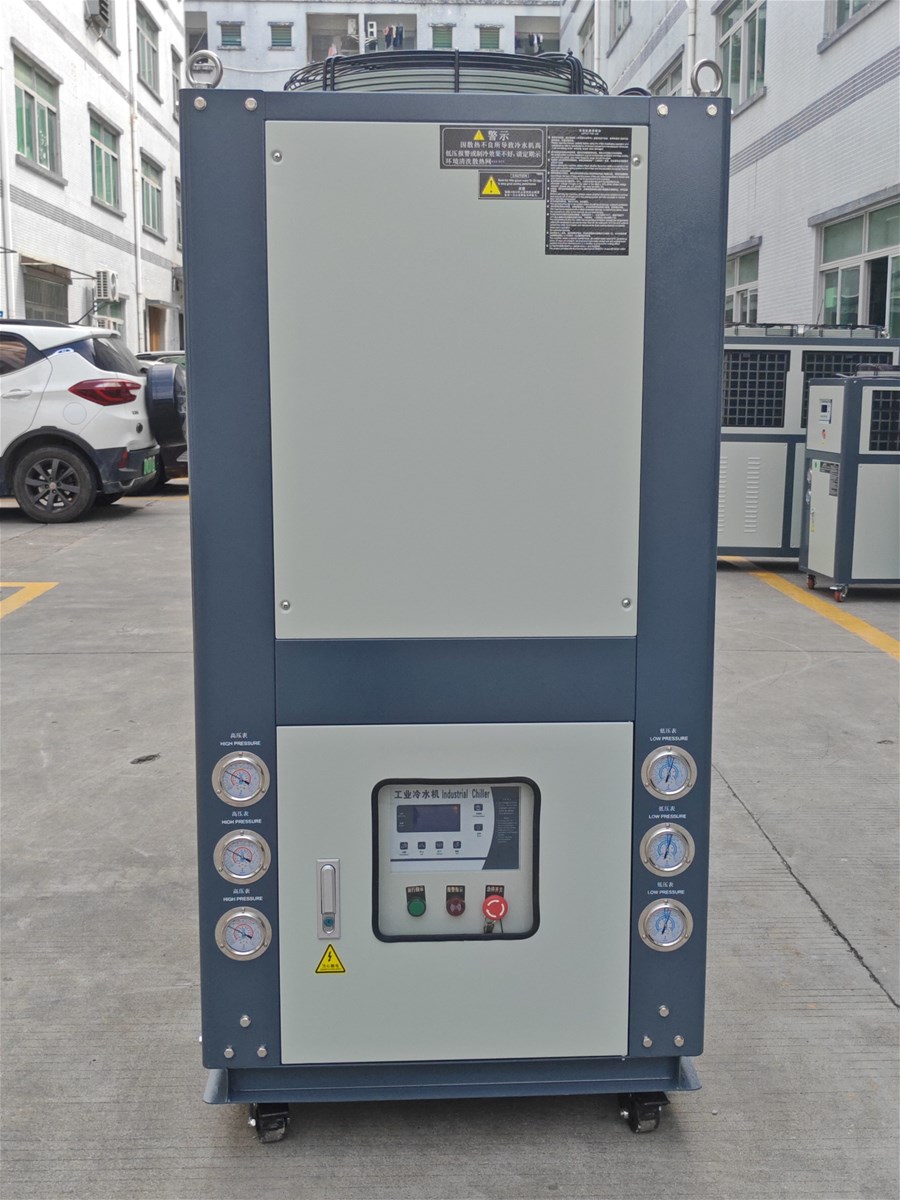

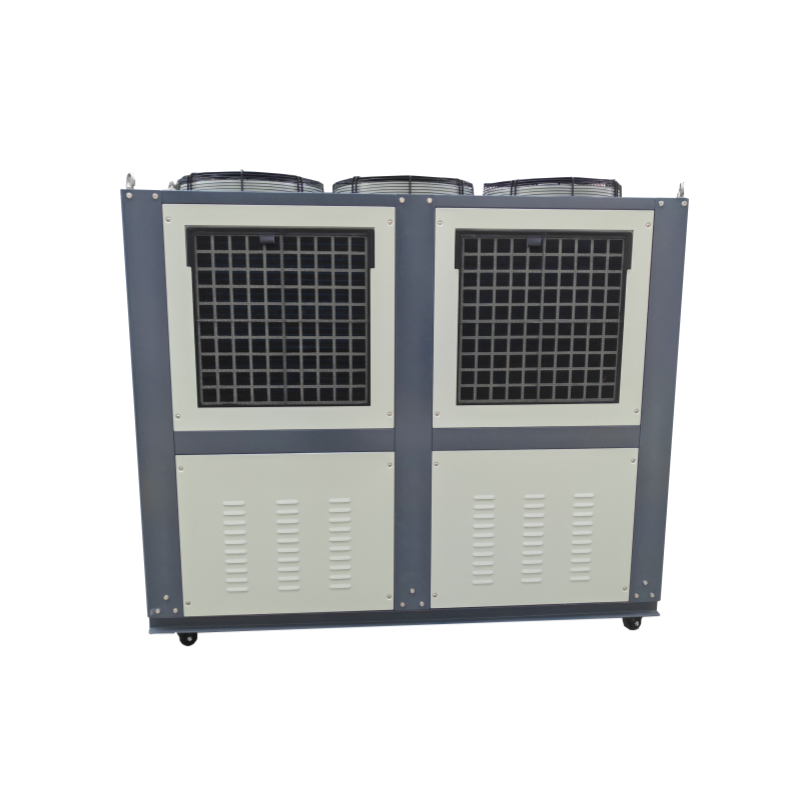

Industrial Air Cooled Type Water Chiller.
| FOB Price: | 1.00 - 4450.00 USD/Piece |
|---|---|
| Supply Ability: | 3,000 Piece(s) per Month |
| Shipping: | ship/air |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Plywood Case |
Quick Details
- After-sales Service Provided: Overseas third-party support available
- Certification: CE
- Voltage: 3Phase-380V-50Hz
- Cooling Capability(kw): 44.15kw
- Brand Name: Ruihai
- Warranty: 12 months
- Weight: 520kg
- Dimension(L*W*H): L1750 x W750 x H1620 mm
- Model Number: RHP-15A
- Type: Air-Cooled
- Condition: 5-35
Specifications
Technical Parameters
Model No. |
RHP-15A | |
Refrigeration Capacity |
44.15kw | |
Temp. Control Range |
5℃~35℃ | |
Power Supply |
380V-3Phase-50Hz | |
Total Power Consumption |
13.7kw | |
Refrigerant |
Type |
R407C |
Control |
Thermal Expansion Valve | |
Compressor |
Brand |
Panasonic |
Type |
Hermetic Scroll or Piston Type | |
Power |
5.6kw x 2 | |
Condenser |
Type |
Efficient copper aluminum Fin & Low Noise Fan |
Cooling Air Flow |
15000m3/h | |
Fan Power |
0.6kw x 2 | |
Evaporator |
Type |
Tank Coils |
Chilled Water |
7.6m3/h | |
Tank Volume |
210L | |
Inlet/Outlet Pipe |
Dia.2" | |
Water Pump |
Power |
1.5kw |
Max Flow Rate |
25.2m3/h | |
Lift |
21.5m | |
Controller |
PLC | |
Protector Device |
Compressor overheating protection, over current protection, high and low pressure protection traffic protection, phase sequence/phase loss protection, low level protection, frost protection over temperature protection | |
Size |
L1750 x W750 x H1620 mm | |
Weight |
520kg | |
Work Condition
1. above cooling capacity is based onChilled Water Inlet=12°C &Outlet=7°C, Ambient Temp.=35°C
2. Power Supplier Options: 220V-3Phase-50Hz/60Hz,380V-3Phase-50Hz/60Hz, 415V-3Phase-50Hz/60Hz
3. Refrigerant Options: R22, R407C, R134A, R404A
