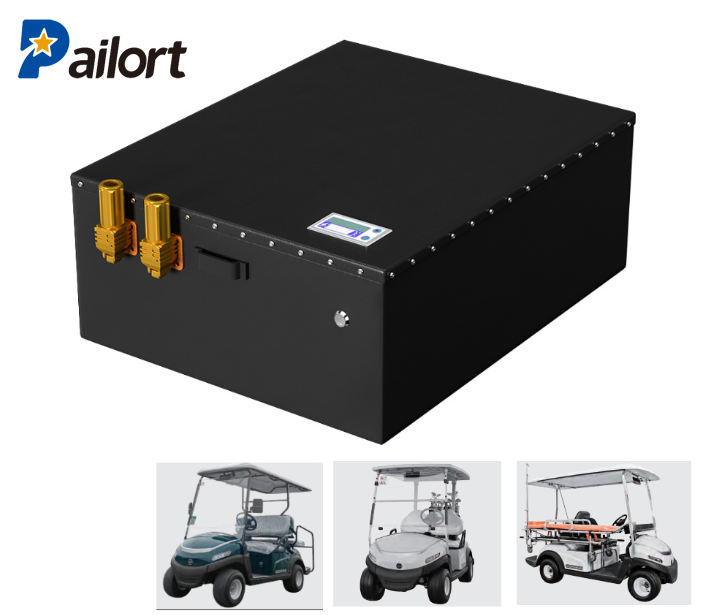

Lithium Battery Pack for 2-3 Wheels Electric Vehicle Golf Cart Low Speed Vehicle
| Payment Terms: | L/C, D/A, D/P, T/T |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
Quick Details
- Application: golf cart
- Nominal Capacity: 150Ah
- Voltage: 48V
- Type: LiFePO4
- Brand Name: Pailort
Specifications
the BMS (Battery Management System) is like an electronic card that can efficiently manage, precisely control, and comprehensively protect the operation of lithium batteries. It enables intelligent and adaptive management of batteries during the charging and discharging stages.
Our BMS is the result of years of continuous research and development plans and integrated feedback. It is completely independently developed internally, with high adaptability and modular characteristics, and can effectively meet the specific needs of customers. Our BMS can monitor, calculate, and control hundreds of advanced parameters in real time, effectively ensuring that the battery achieves the expected performance.
the BMS ensures a permanent balance between batteries. to optimize this balance, the BMS uses its unique charging and discharging rules to closely supervise each battery it controls. Therefore, balance management is not only carried out at the end of charging (unlike most competing batteries), but is continuously carried out at every moment during the charging and discharging stages, so as to permanently maintain the uniformity of the battery pack.
with this advanced management method, there are two outstanding advantages: one is to achieve the best availability of battery pack capacity, and the other is to better control the battery aging process.
Product model |
/ |
Product specification |
48V150Ah |
Nominal voltage |
48V |
Nominal capacity |
150Ah |
Cell type |
LiFePO4 |
Maximum cell voltage |
3.65V |
Minimum cell voltage |
2.5V |
Max charging voltage |
58.4V |
End-off voltage |
40V |
Display |
LCD(optional) |
Communication interface |
RS485/RS232/CAN(optional) |
Cycle life |
≥3000(80%DOD) |
Charging temperature range |
0℃-45℃ |
Discharging temperature range |
-20℃-60℃ |
Dimensions |
L(520mm)*W(370mm)*H(270mm) |
Weight |
60kg |
Installation method |
Built in |
Incorporated in 2015, Our Group has steadily expanded to approximately 63 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers, and own four professional production base.
with more than 9 years experience, advanced technology and equipment, PAILORT dedicates in the design, development and production of high quality lithium battery for various market including Low speed vehicle, E-bike, E-motor, Marine etc. Its market covers nearly 58 countries and regions.
PAILORT is competent at ODM and OEM orders according to customers real-time request.
