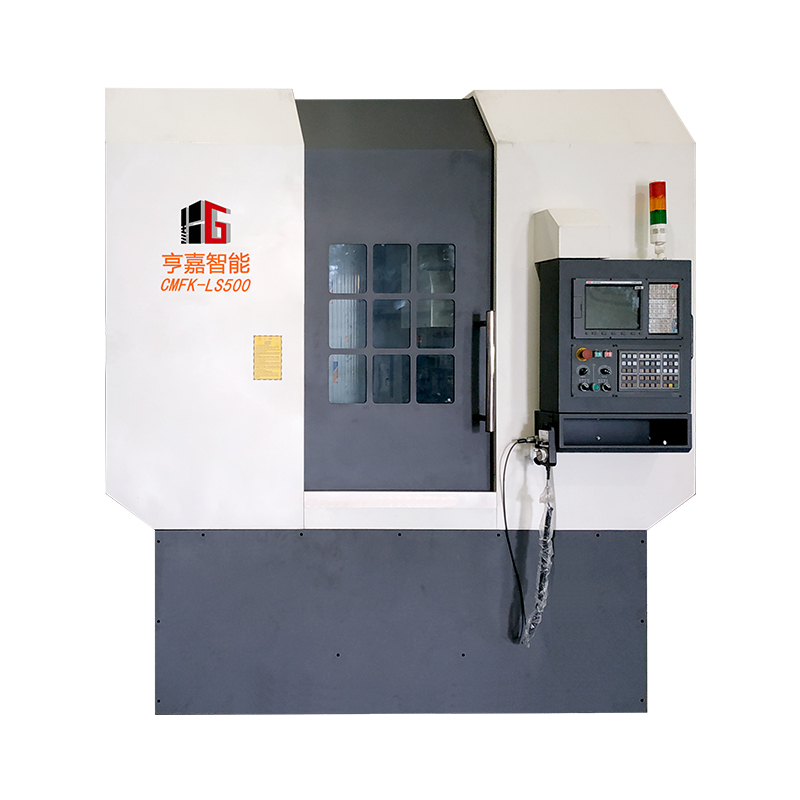

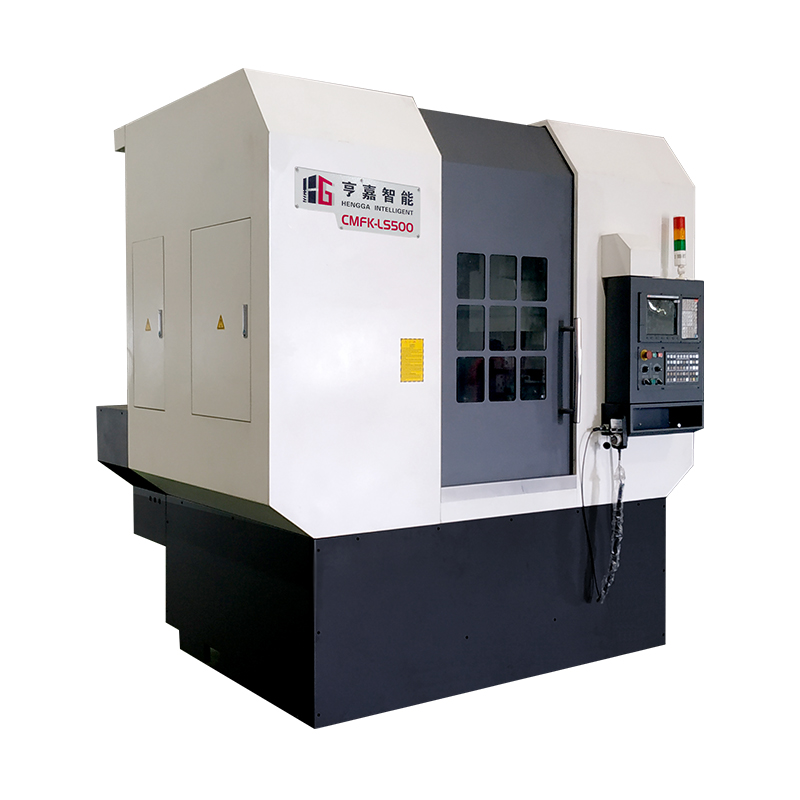

Brake Disc Vertical CNC Grinding Machine (LYV-LS500)

FOB Price:	65000.00 - 68000.00 USD/Set
Supply Ability:	10 Set(s) per Month
Shipping:	QINGDAO PORT
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	wooden box package

Quick Details

Weight: 8500kg
Brand Name: HenggaCNC
CNC or Not: CNC
Type: Surface Grinding Machine
Condition: New
After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE
Dimension(L*W*H): 2500mm*2100mm*3000mm
Power(W): 26kW
Voltage: 380V
Model Number: LS500
Max. Grinding Length: 500mm
Max. Grinding Diameter: 500mm

Specifications

1. Brief Introduction

Longkou Hengga Intelligent Equipment Co., Ltd. Presents the CMFK-LS500 CNC dual-feed vertical turning and grinding machine, specifically tailored for the machining of various disc and shell components. this machine boasts dual turrets and a high-power design, making it capable of performing operations such as turning, internal circle grinding, end face finishing, and inverted face processing simultaneously. It is widely used in the production of automotive brake discs, hubs, brake hubs, flywheels, clutch pressure plates, bearing rings, gears, and other parts requiring both rough and finish machining, as well as grinding processes.

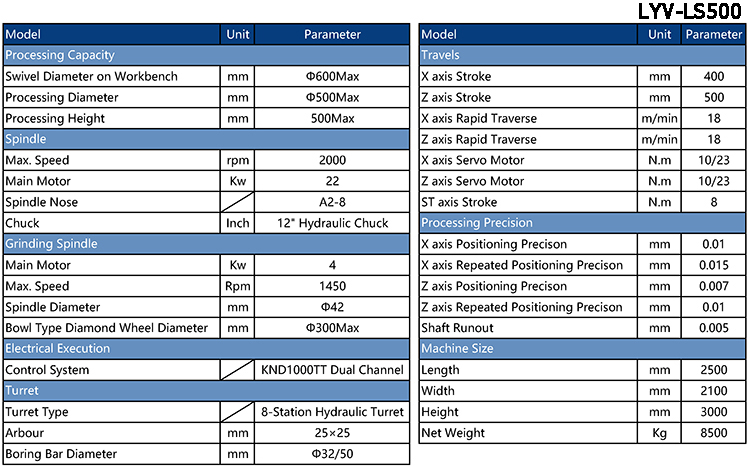

2. Technical Parameters

Model: LYV-LS500
Material: Cast iron
Weight: 8.5 tons
Rotating Diameter of Workpiece: 500mm
Delivery Date: 40 Days

3. Performance Features

High Processing Efficiency: the dual-feed configuration allows for concurrent turning and grinding operations, significantly enhancing processing efficiency by up to 4 to 6 times that of conventional lathes.
Excellent Surface Quality: the machine supports high-speed turning, which not only improves processing efficiency but also enhances the surface quality of the workpieces.
Strong Rigidity: with a weight of 8.5 tons, the LYV-LS500 Brake Disc CNC Grinder offers stronger rigidity, ensuring stable and accurate machining.
Versatile Applications: this machine can process a wide range of products, making it suitable for high-precision and automatic mass production of brake discs/drums and other components.
Customized Solutions: as a specialist in the vertical machining of brake discs, Hengga collaborates closely with customers to develop customized, turnkey manufacturing solutions tailored to their specific needs.

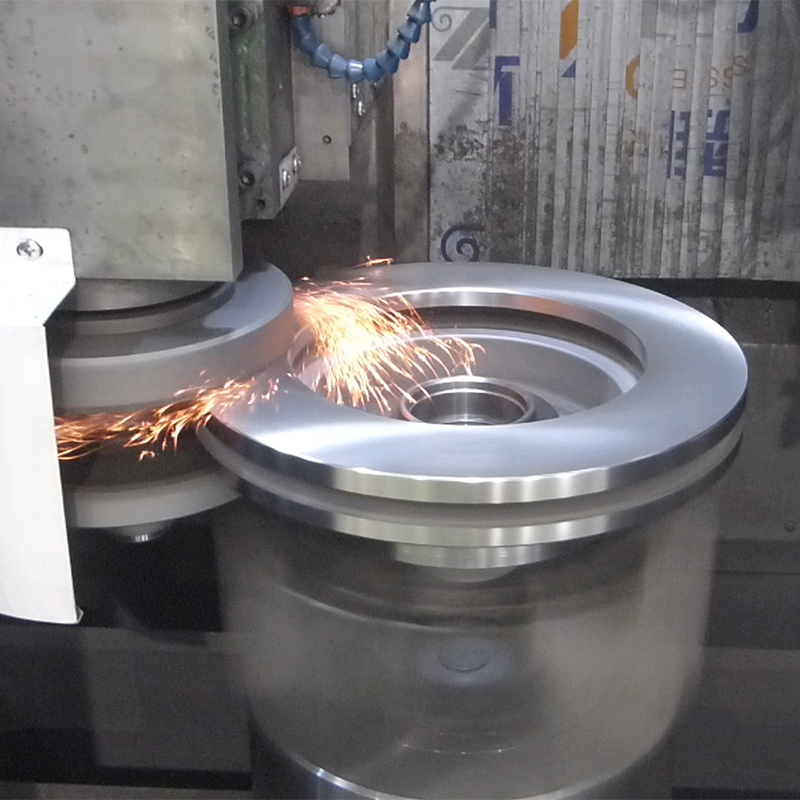

for a detailed view of the LYV-LS500 brake disc CNC grinder in action, please visit the processing video case on our website.
