Mobile Mini Power Distribution Equipment Compact Transformer Substation

FOB Price:	10000.00 - 60000.00 USD/Set
Supply Ability:	30 Set(s) per Month
Shipping:	By sea
Payment Terms:	T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe

Quick Details

Brand Name: Ximai
Rated Voltage: 10kV
application: Power distribution system
Material: Copper
name: Substation
Model Number: YB-12/0.4

Specifications

Mobile Mini power distribution equipment compact transformer substation

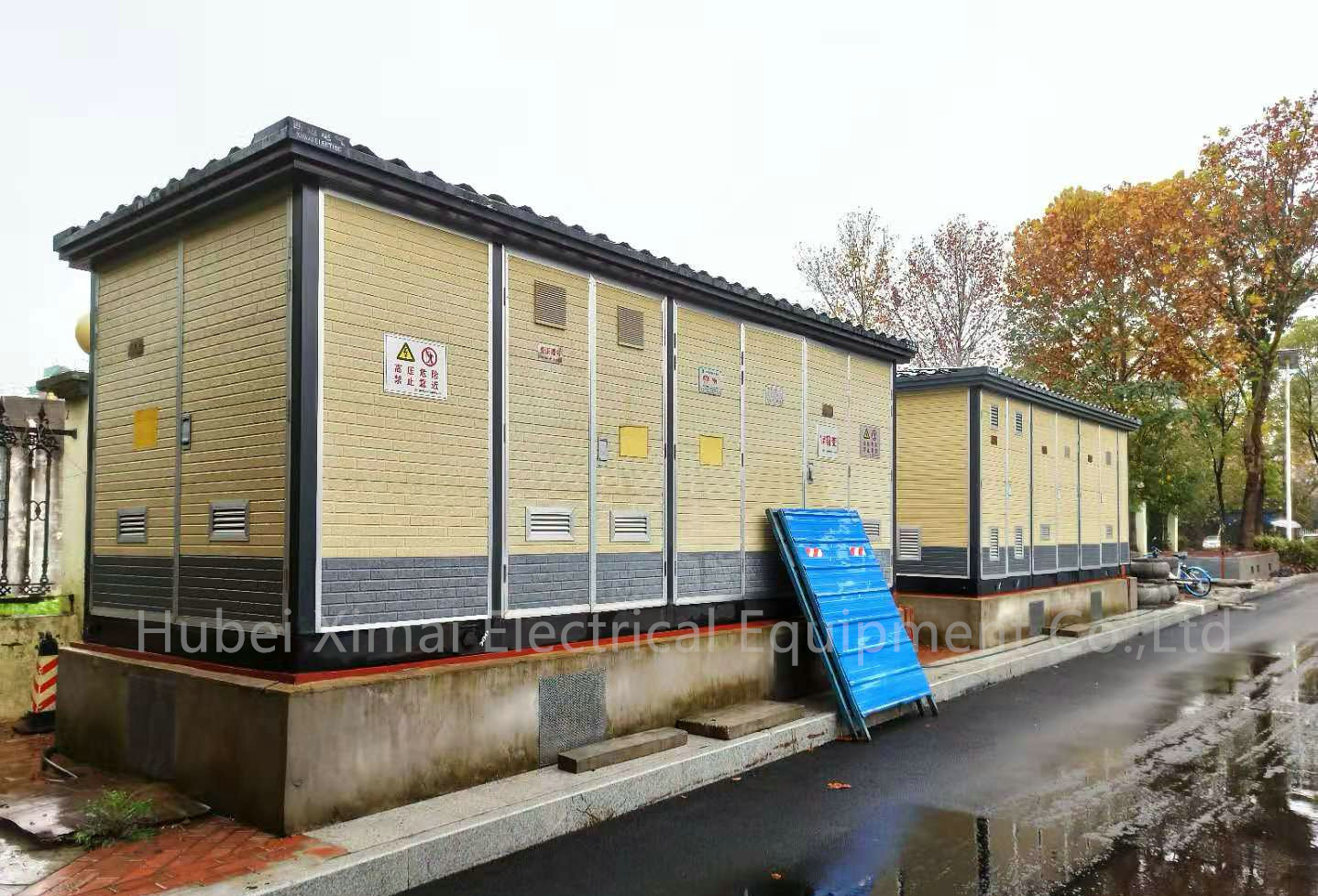

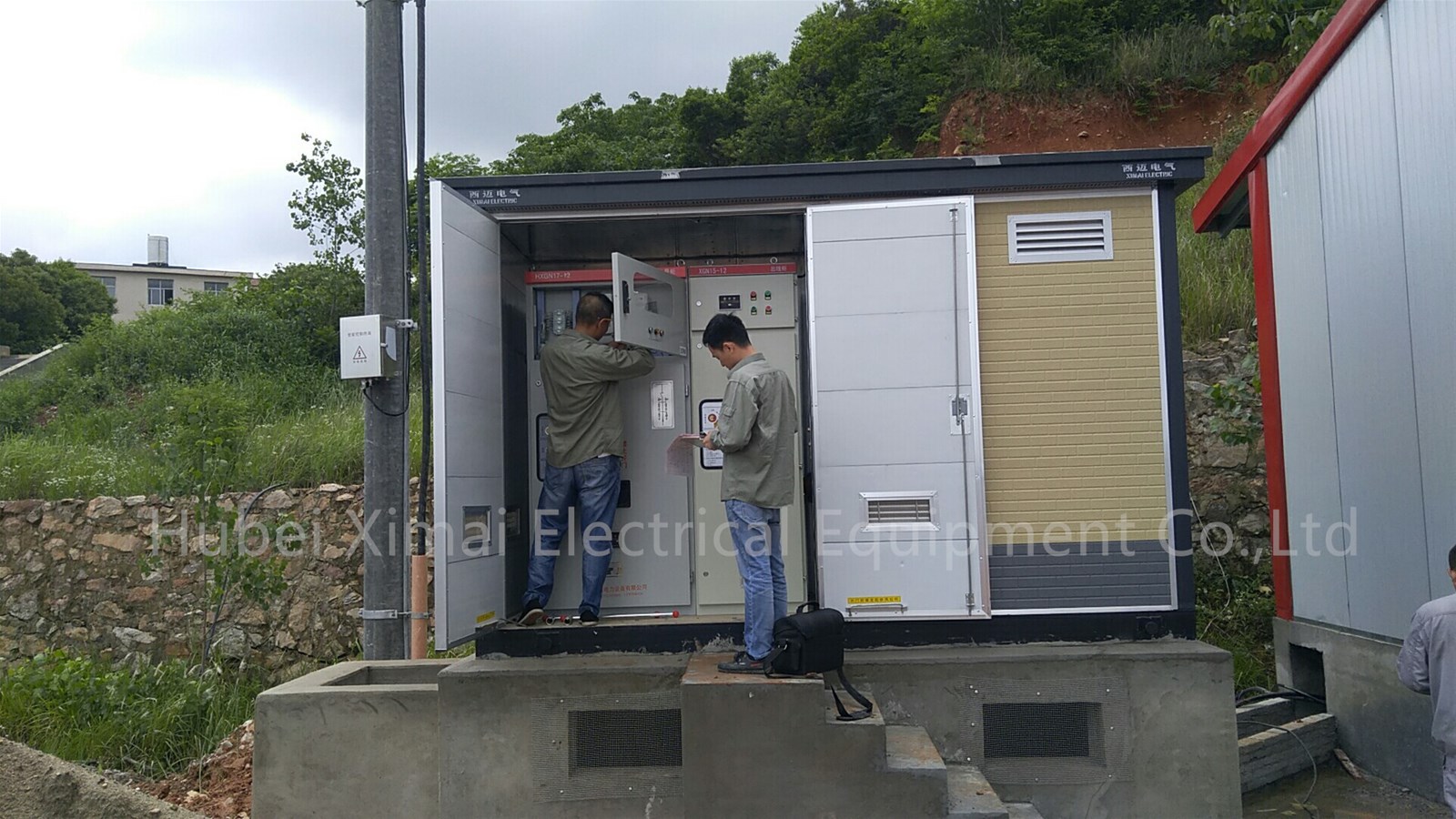

this YB series prefabricated substation can be used in ring network power distribution system, and can also be used as radial grid terminal power supply. It is widely used in urban network recondition, high buildings, residential quarters, hotel, schools, hospitals, airports, wharves, city public power distribution, industry zone, industrial and mining enterprises, tourism spots, expressways, temporary facilities and etc.
Mobile Mini power distribution equipment compact transformer substation

Detail of Substation

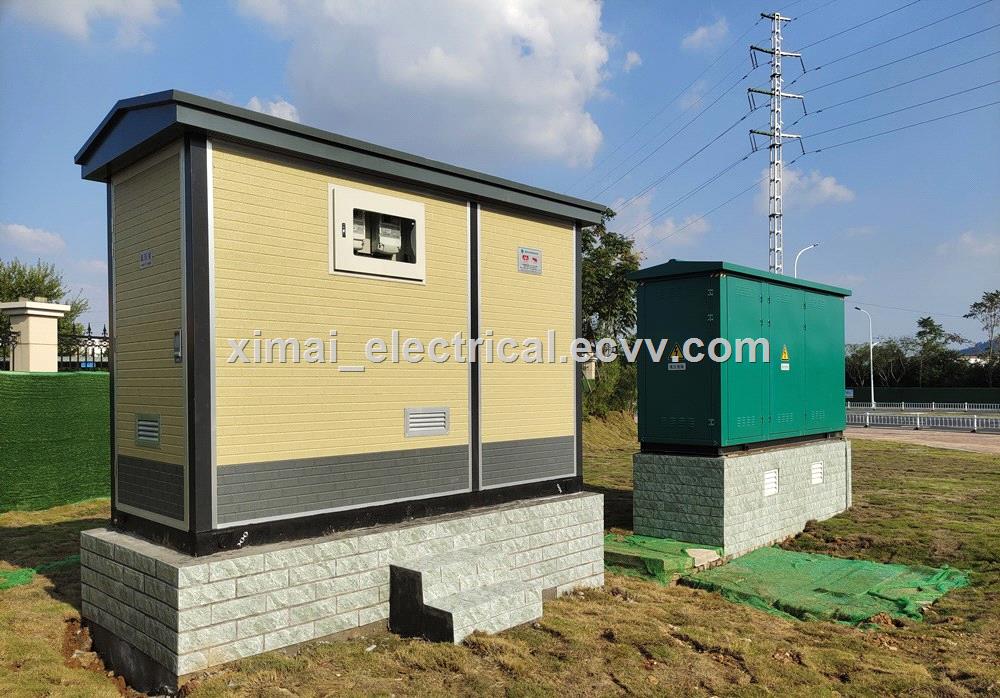

Outside Enclosure:
the enclosure is double layer structure and between the layers is filled with foam. There are independent boards in HV and LV room, and in the transformer room will install auto thermal controller heater and cooling equipment.

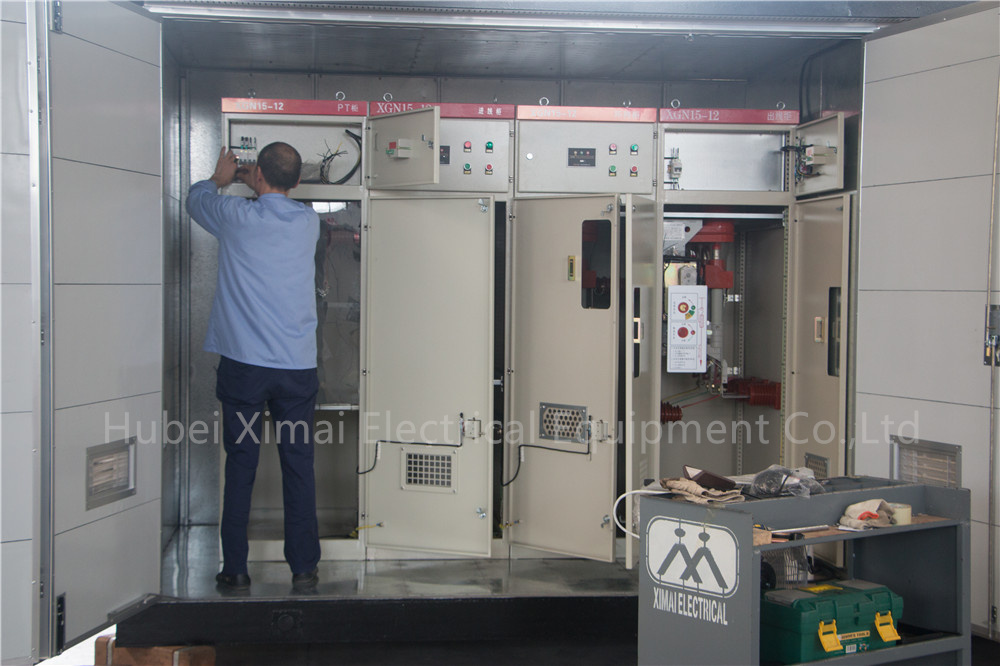

High voltage compartment:
the HV side use charge switch or vacuum circuit breaker.
HV switchgear type: SF6 RMU,FZN series air insulated vacuum RMU or terminal switchgear.
Mobile Mini power distribution equipment compact transformer substation

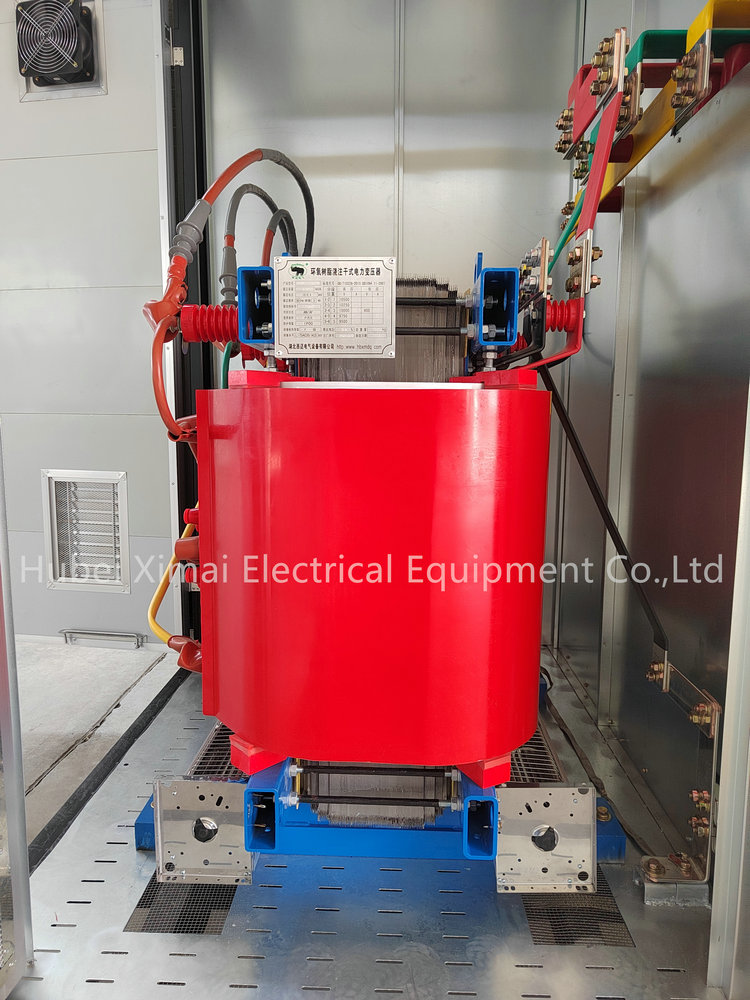

Transformer compartment:
about the transformer, there are dry type and oil type two kind.
Transformer capacity general range from 30-2000kVA. this part can be made based on client's requirement.

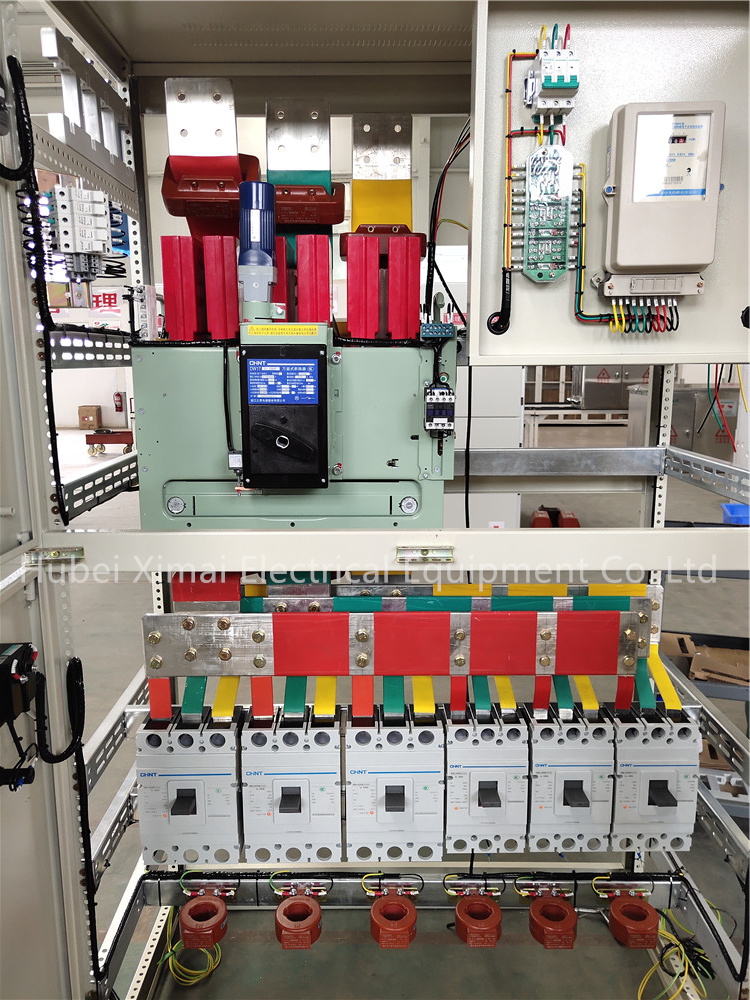

Low voltage compartment
Low voltage compartment can adopt low voltage switch box, like GGD, GCK.
this switchgear divides into measuring room, isolation switch unit, capacitance compensation unit. Switch brand can use imported brand or domestic brand (like CHNT), it depends on client's requirement.
Mobile Mini power distribution equipment compact transformer substation
