Zhenjiang Baierde Electronic Co., Ltd.
China Manufacturer with main products: SMA, SSMA, MCX, MMCX, SMP, SSMP, N, BNC |
Home
>Products Catalog > BRD 0986 High Frequency MCX Female Jack RF Coaxial Connectors with Brass Body Phosphor Copper Contact Pin & PTFE

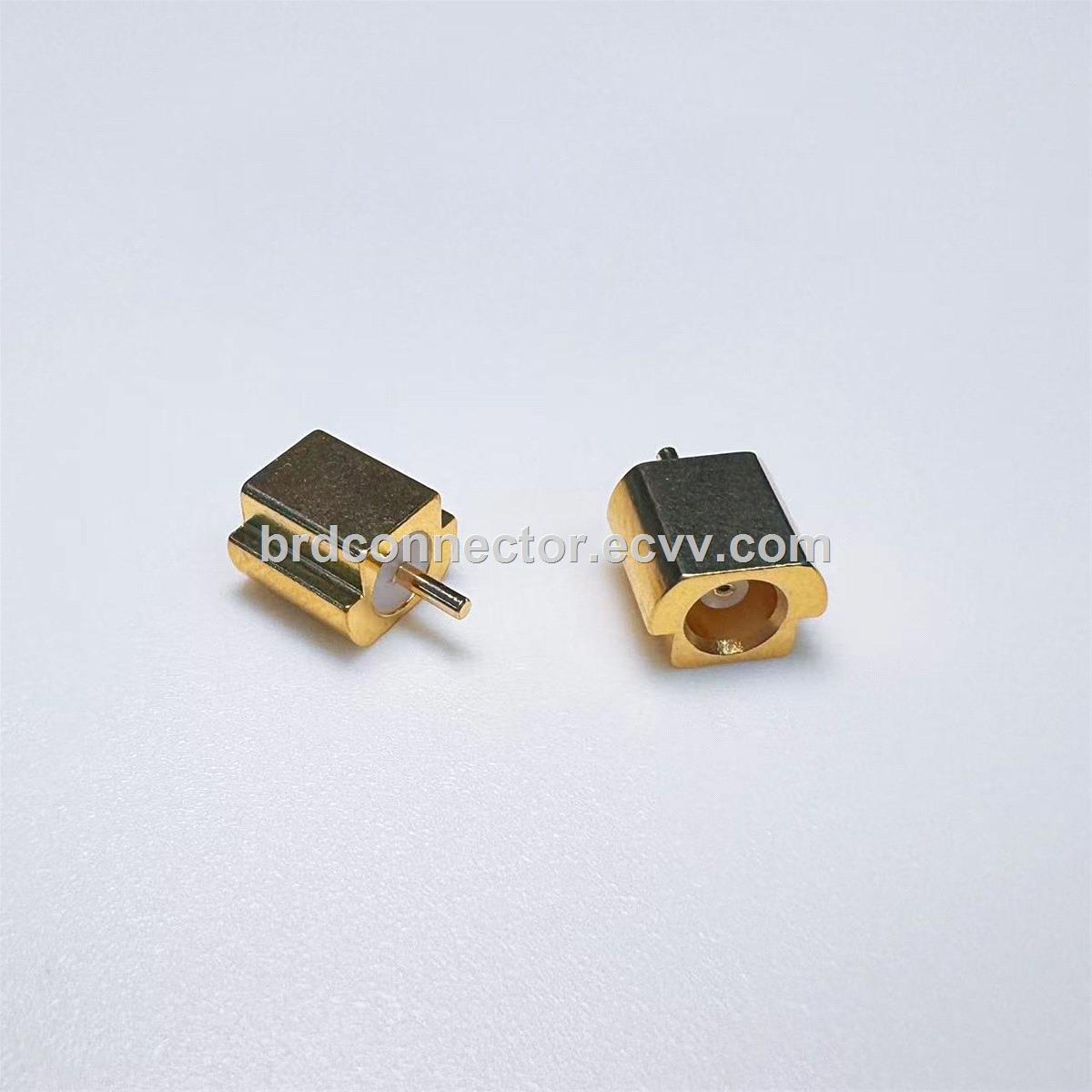

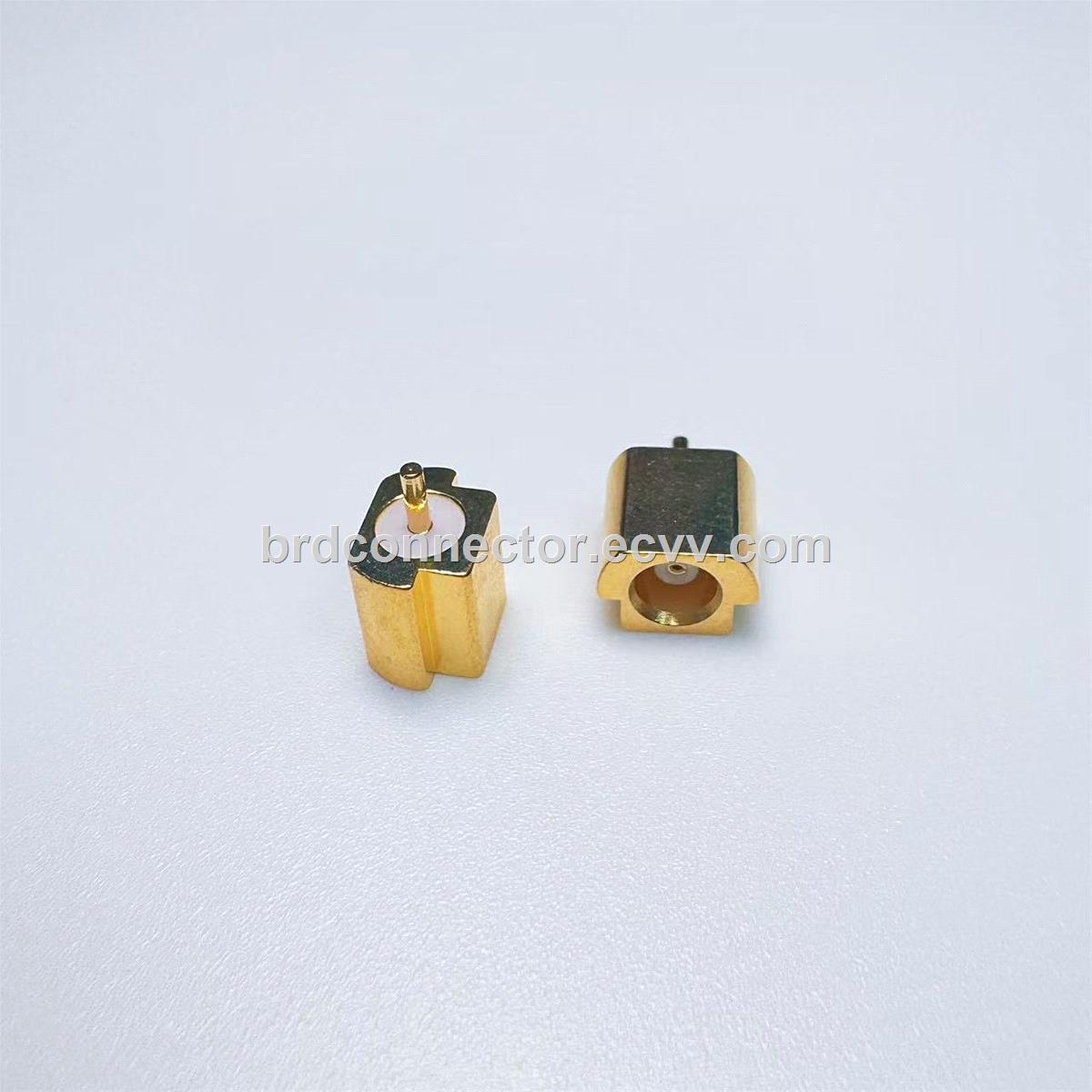

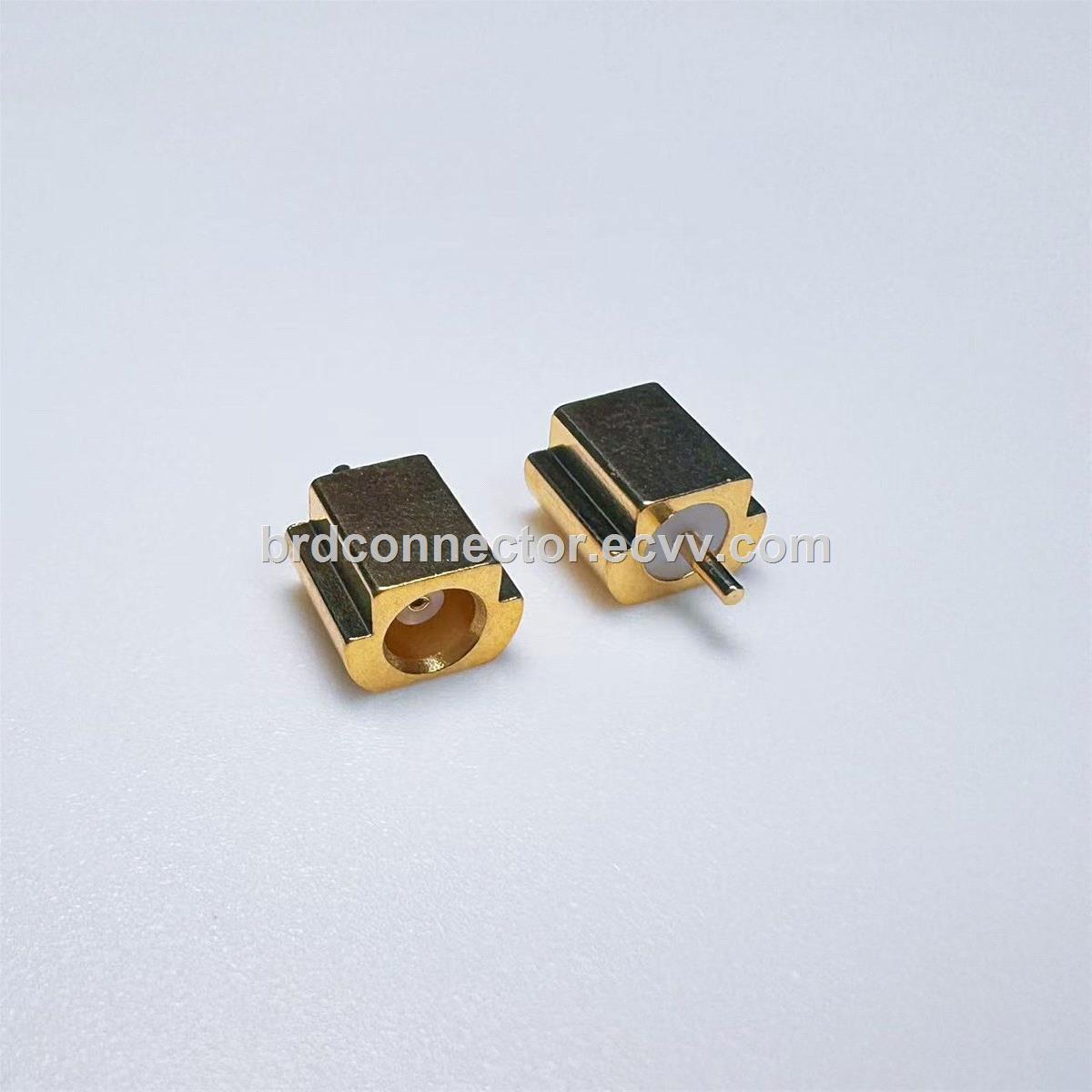

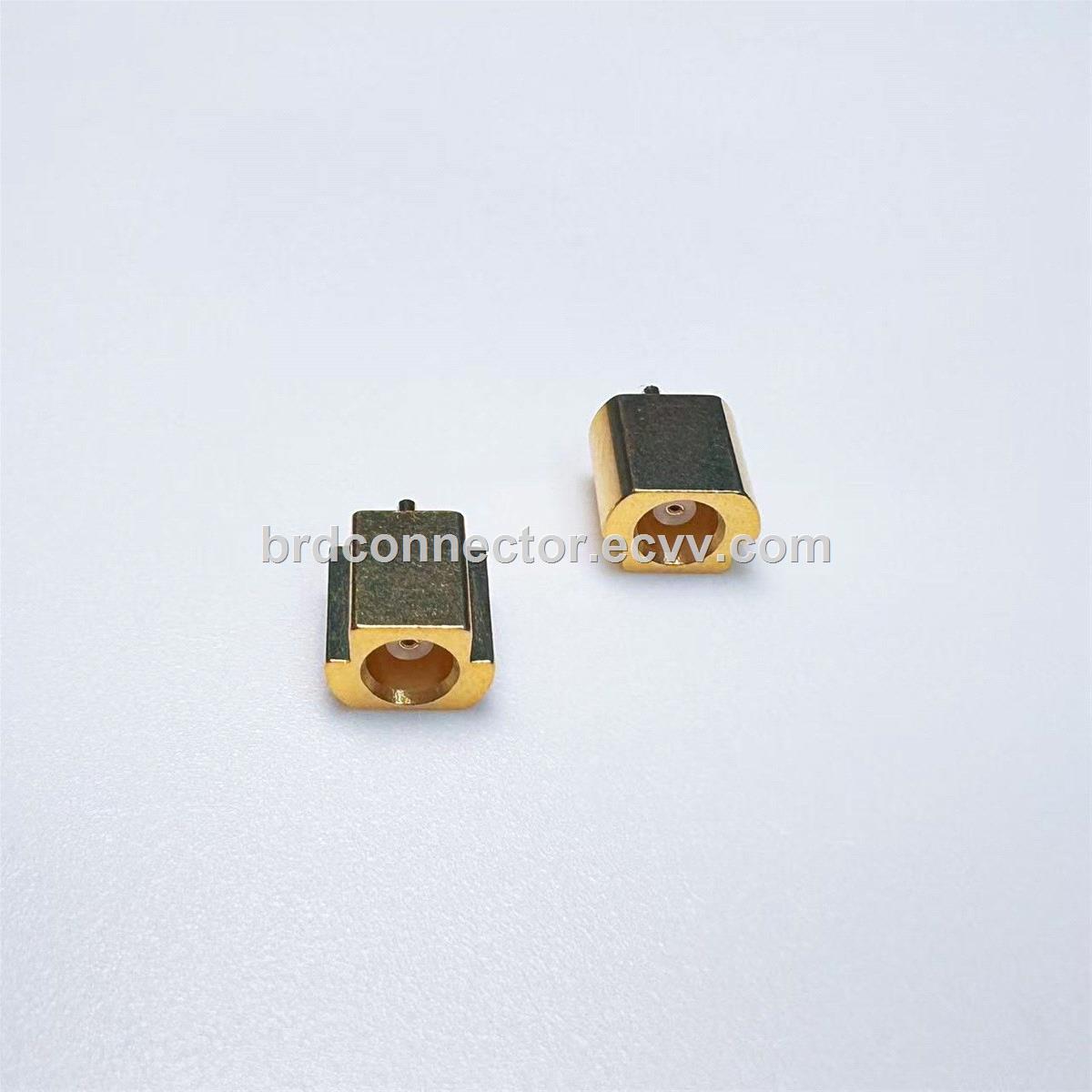

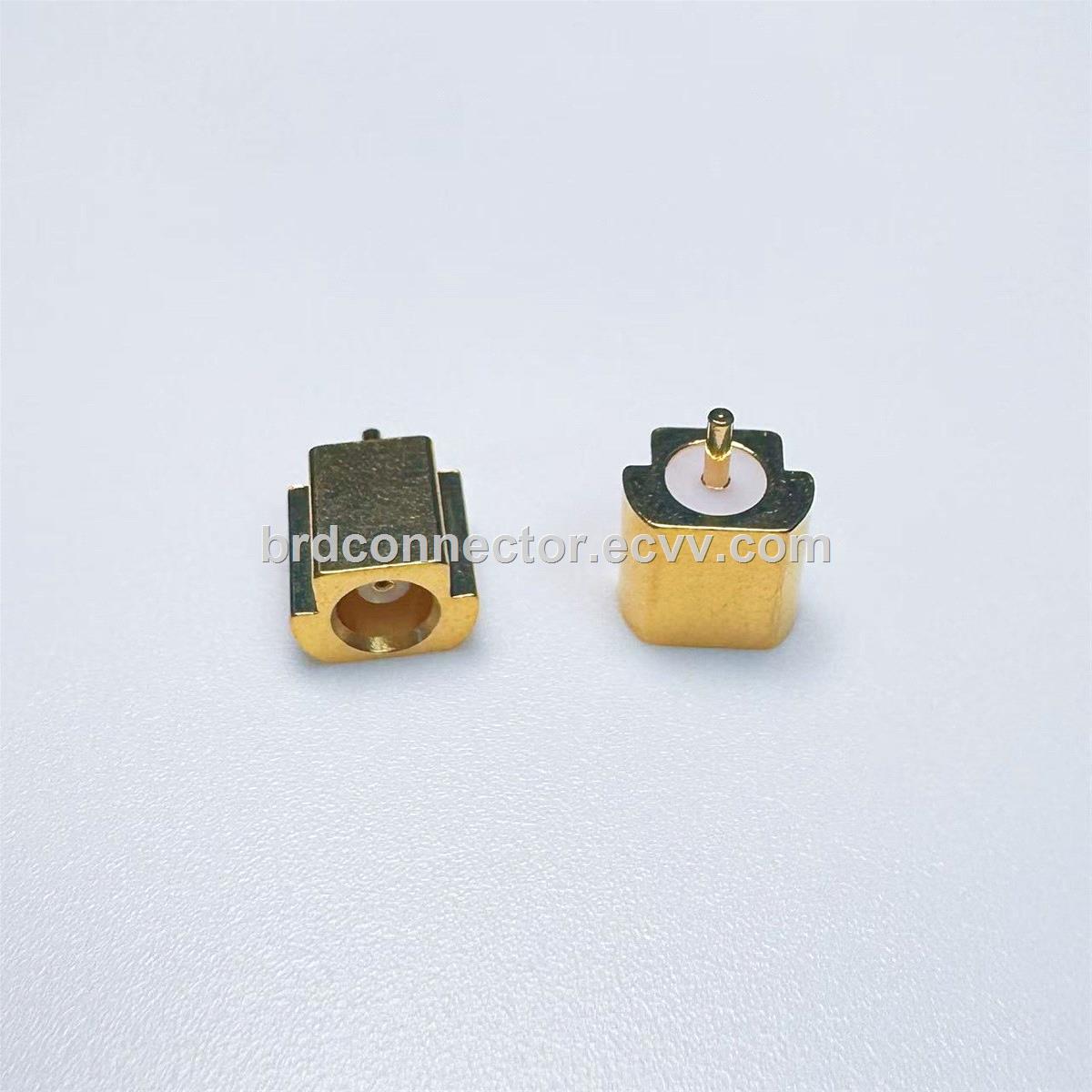

BRD 0986 High Frequency MCX Female Jack RF Coaxial Connectors with Brass Body Phosphor Copper Contact Pin & PTFE
| FOB Price: | 0.50 - 5.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000,000 Piece(s) per Month |
| Shipping: | by sea, by air, by EXPRESS, by road |
| Payment Terms: | T/T, Western Union, MoneyGram |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | carton |
Quick Details
- Gender: Female
- Type: MCX
- Brand Name: BRD
- Color: Gold
- Model Number: BRD 3.655.0986
Specifications
BRD 3.655.0986 MCX-KEF RF Coaxial Connector
Technical Parameters:
Characteristic Impedance:50 ohms
Temperature Range: -40~125 degree
Frequency Range:0~6GHz
Voltage Rating: 250V
Contact Resistance: less than 0.005 ohm (center conductor); less than 0.0025 ohm (outer conductor)
Insulation Resistance: more than 1000Mohms
Dielectric Withstanding Voltage: 750V
VSWR: less than 1.20
Insertion Loss: 0.1dB at 1GHz
Durability: 500 cycles

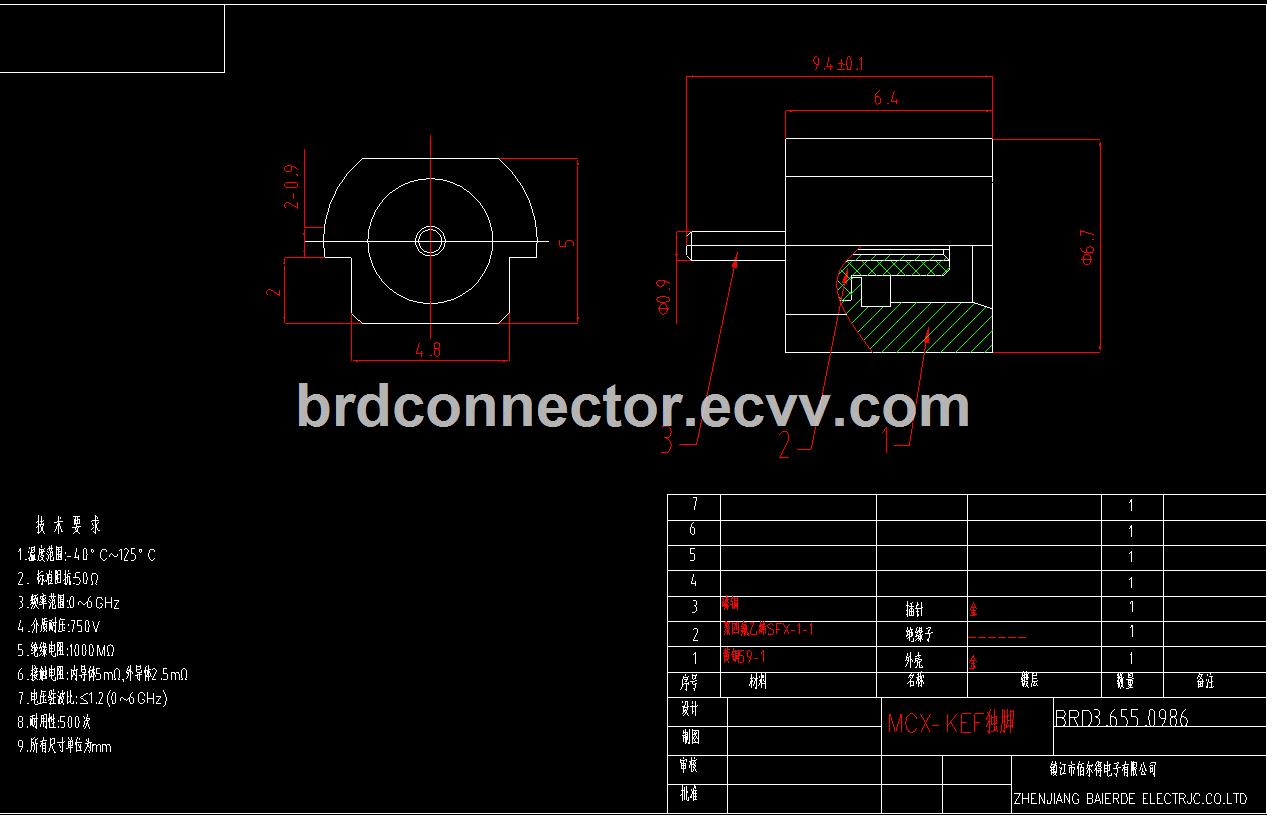

Specific drawing will be provided immediately for confirmation upon request
