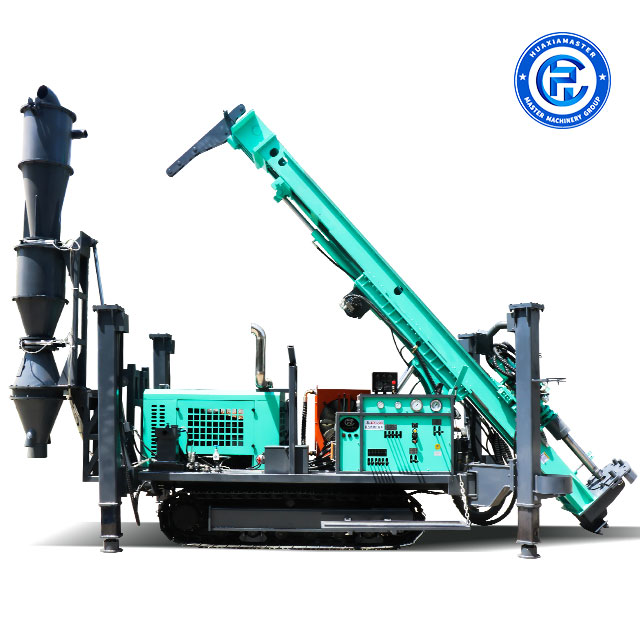

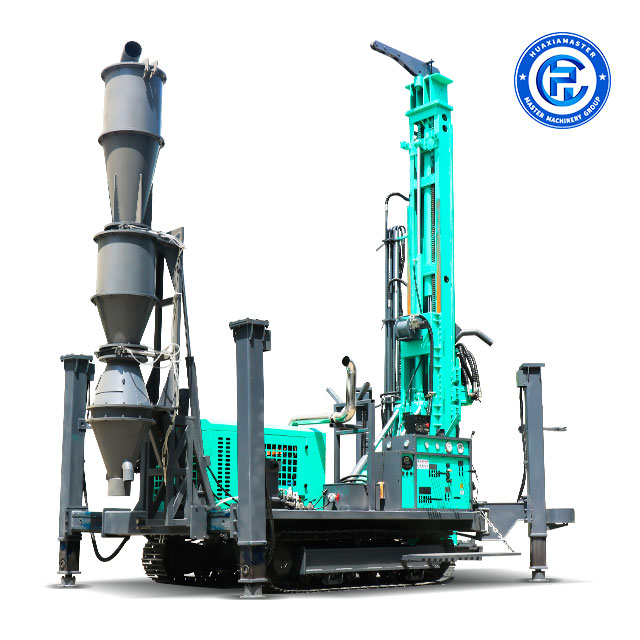

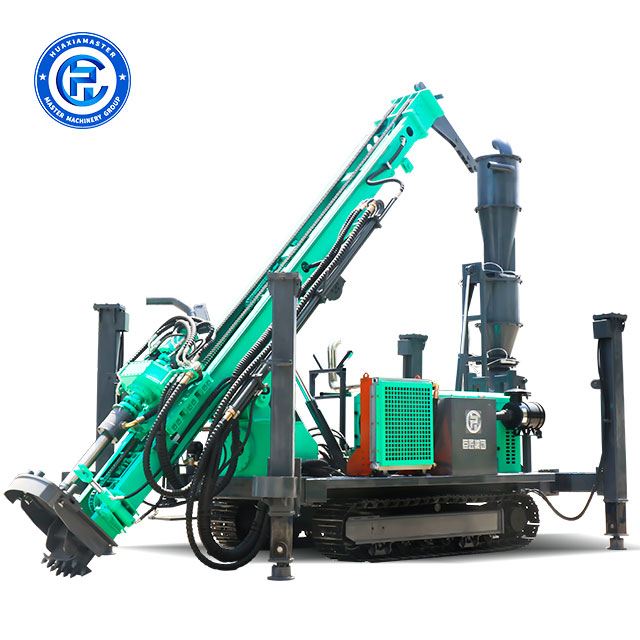

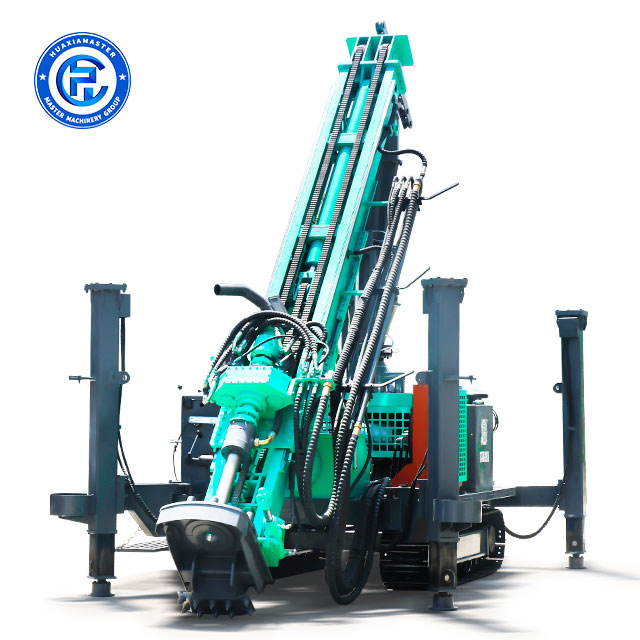

ARC Series Air Reverse Circulation Drilling Rig

FOB Price:	10000.00 - 30000.00 USD/Set
Supply Ability:	10,000 Set(s) per Year

In Stock

Inquiry Now Start Order

Related products from verified members

Quarry Drilling Rig Hot Sale Mine Driling Rig H...

Price:100000.00 USD/Set

Min. Order:1 Set
Rotary Drilling Rig

Price:

Min. Order:1 Set
Rock Drill Accessories

Price:

Min. Order:100 Pieces
Cheap Price & Good Condition Used Kobelco R...

Price:50,000.00-55,000.00 USD/Set

Min. Order:1 Set
drilling rig

Price:

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Brand Name: HUAXIAMASTER
Power Type: Diesel
Type: Core Drilling Rig
Condition: Used
Certification: ISO9001
Weight: 23T
Dimension(L*W*H): 11500*2250*3400mm
Power(W): 220kW
Model Number: ARC-1200
Drilling diameter: 105-800mm
Drilling depth: 1200m

Specifications

ARC Series Air Reverse Circulation Drilling Rig

1.Brief Introduction:

ARC series air reverse circulation drilling rig is a new, efficient and environmentally friendly geological drilling equipment. It uses the latest air reverse circulation drilling technology from Master Research Institute, compressed air is used as the circulating medium to quickly discharge, the cuttings from the bottom of the hole through reverse circulation. Rock cuttings and dust are effectively collected and sorted through dust collectors, avoid sample contamination, ensure the accuracy of sample data. the drilling rig is mainly used in mineral exploration, hydrogeological exploration, engineering geological exploration and other fields, suitable for various geographical environments, including complex environments such as thin air at high altitudes, thick permafrost, and abundant groundwater. It is the preferred equipment for geological exploration drilling and other deep hole operations.

2.Techincal parameters:

2.1 Efficient drilling: the air reverse circulation drill uses a closed circulation system to quickly discharge cuttings, reduce repeated crushing, and significantly increase drilling speed.

2.2 High sample quality: the rock chip dust samples obtained through air reverse circulation drilling are free from contamination, easy to classify and track, and can accurately locate the mineralization location.

2.3 Green and environmentally friendly: Using compressed air as the circulating medium, compared with traditional mud drilling rigs, it does not require a large amount of water and chemicals during the construction process, reducing pollution to the environment.

2.4 Full hydraulic operation: drilling rig lifting, power head rotation and feeding, drill rod connection and unloading and other actions are all realized by the hydraulic system, which greatly reduces labor intensity and improves construction efficiency.

2.5 Low maintenance cost: the air reverse circulation drilling rig has a simple structure, and key components are made of high-strength materials with strong wear resistance and corrosion resistance, which reduces the replacement frequency of wearing parts and has low maintenance costs.

2.6 Reliable power: adopt big brand diesel engine, strong power, stable performance and perfect after-sales service.

3.Performance features:

Drilling rig model		ARC-200	ARC-300	ARC-500	ARC-800	ARC-1200
Machine parameters	Vehicle weight	6T	7.5T	9.5T	17T	23T
	Shipping dimensions	600017502350mm	675022002550mm	675022002650mm	1050022503300mm	1150022503400mm
	Chassis	Engineering steel tracks Hydraulic walking chassis	Engineering steel tracks Hydraulic walking chassis	Engineering steel tracks Hydraulic walking chassis	Engineering steel tracks Hydraulic walking chassis	Engineering steel tracks Hydraulic walking chassis
	Track ground length	2150mm	2500mm	2500mm	7000mm	8000mm
	Track chassis width	1700mm	1800mm	1800mm	2250mm	2250mm
	Hydraulic high outriggers	4	4	4	4	4
	Machine power	Yuchai four-cylinder diesel engine	Yuchai six-cylinder diesel engine	Cummins six-cylinder diesel engine	Weichai six-cylinder diesel engine	Weichai six-cylinder diesel engine
	Host power	77.3kW	110kW	132kW	176kW	220kW
Technical parameters	Applicable rock strength	F=6~20	F=6~20	F=6~20	F=6~20	F=6~20
	Drill pipe diameter	Φ89/Φ102	Φ89/Φ102/Φ114	Φ89/Φ102/Φ114	Φ102/Φ114/Φ127	Φ102/Φ127/Φ146
	Drilling diameter	95-254mm	95-350mm	95-350mm	105-550mm	105-800mm
	Drilling depth	200m	300m	500m	800m	1200m
	Drill pipe length	1.5/2/3m	1.5/2/3m	1.5/2/3m	3/6m	6m
	One-time advancement length	3.6m	4m	4m	6m	6m
	Footage efficiency	10-35m/h	15-35m/h	15-35m/h	10-35m/h	10-35m/h
	Rotary torque	5300-7600N.M	6200-8500N.M	8500-12000N.M	9000-18000N.M	12000-24000N.M
	Power head lifting force	15T	22T	22T	47T	57T
	Winch lifting force	1T	2T	2T	2.5T	2.5T
	Climbing angle	30°	30°	30°	21°	21°
	Walking speed	2.5km/h	2.5km/h	2.5km/h	5km/h	6.4km/h
