High Precision Micro PCD Drill
| FOB Price: | 4.00 - 12.00 USD/Piece |
|---|---|
| Supply Ability: | 10,000 Piece(s) per Month |
| Shipping: | We'll dispatch your order via international shipping in 7-15 days. |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram, Other, PayPal |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
Quick Details
- Brand Name: Moresuperhard
- Color: black
- material: Polycrystalline Diamond
- Shape: Standard and Non-standard
- tolerance: 0.002mm
Specifications

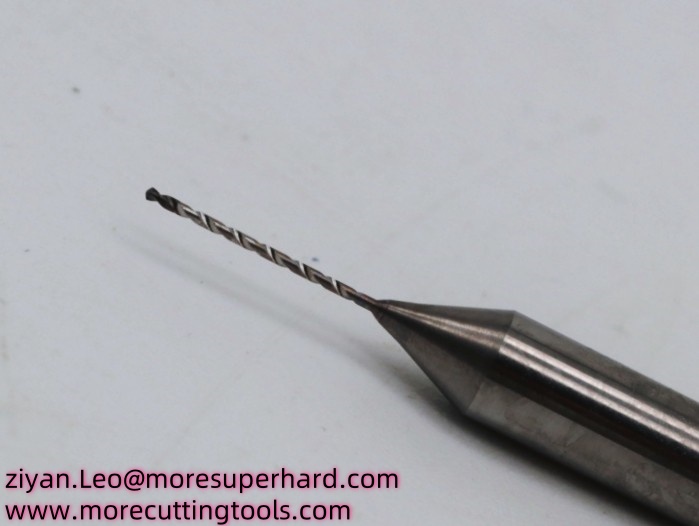

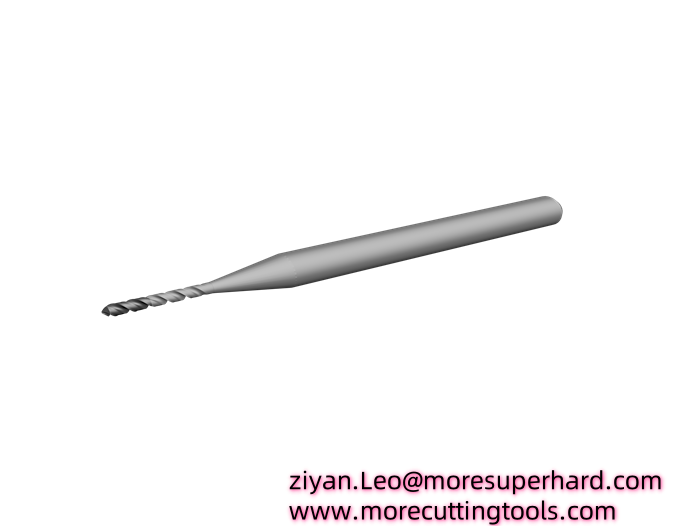

PCD Micro Drill, High precision PCD micro drill
PCD Micro Drill is used in the Semiconductor industry, National defense field, Aerospace, Chip&Communication electronics, Automotive, electronics, and High-end medical equipment...
Specification

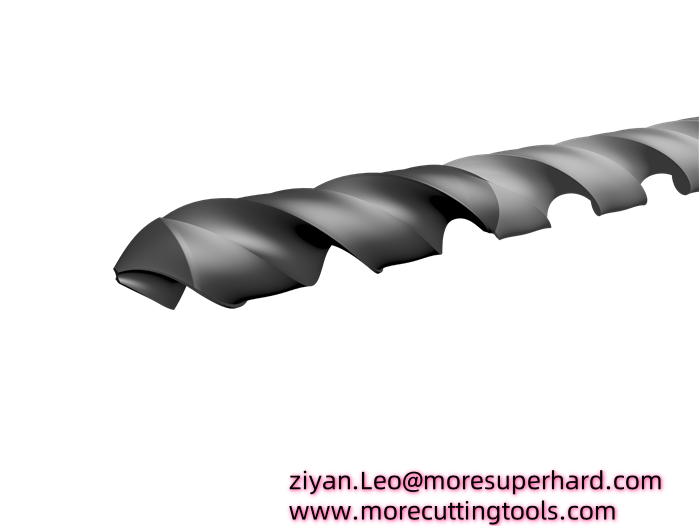

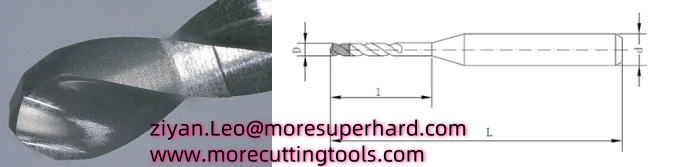

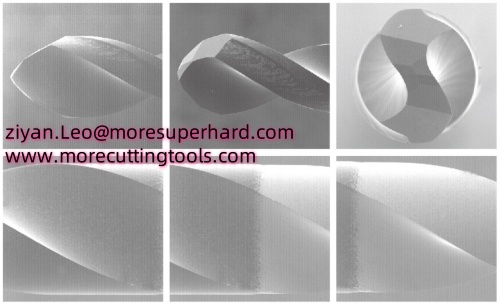

PCD MICRO DRILL SLOT STRUCTURE and DRILL TIP
1. the grinding groove is smooth and the chip removal is excellent;
2. the edge surface is polished and the main edge is sharp;
3. the tip rotates stably and the hole position is accurate.
the Micro Drilling products cover semiconductor materials, metals, ceramics and polymers. Each product has laser and beam delivery design optimized for a specific application, and can be configured for manual or automatic operation, allowing customers to buy exactly the application solution they need.
PCD MICRO DRILLS FEATURES
1. PCD micro drill has characteristics of high hardness, wear resistance, and relatively long service life compared with traditional alloy microdrill;
2. PCD micro drill is widely used in addition to processing metal materials, and can also be used for inorganic non-metallic material processing, with high processing precision;
3. PCD micro drill, compared with traditional alloy micro drill, can process hole walls with better quality.
Improved Tool Life
Improved Productivity
Improved Hole Quality
Reducing Your Machining Time

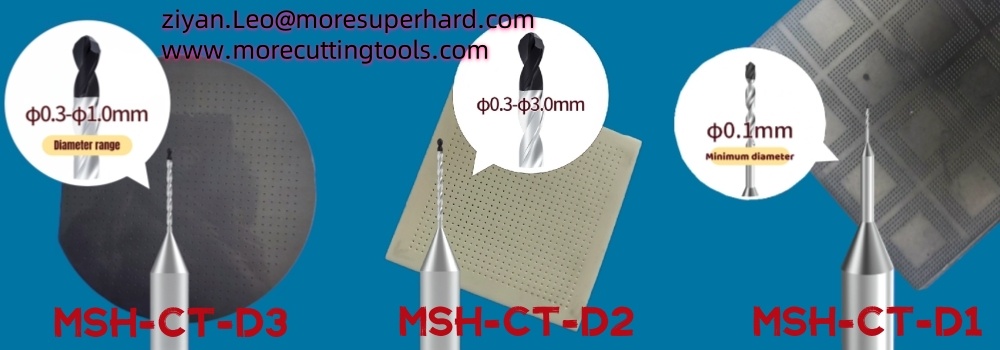

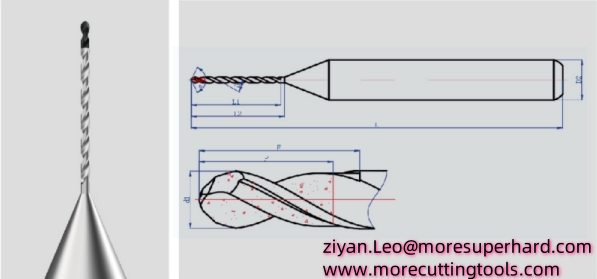

PCD MICRO DRILLS STANDARD
Highest technology laser manufactured micro PCD drills.
Micro PCD drills are used in the semiconductor industry for monocrystalline applications such as cleaning and inspection jigs.
They are also used for the graphite electrode manufacturing for EDM and drilling very hard to machine materials in the die & mold industry.
Designed with superb surface quality and edge sharpness.
Multiple scale tool life as compared to standard carbide coated micro drills.
Other dimensions are available per request.

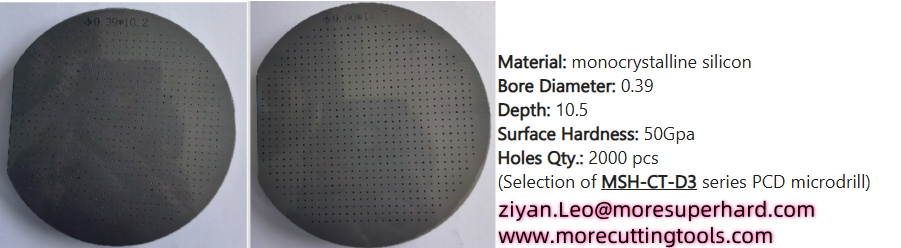

Monocrystalline Silicon Processing Case 1

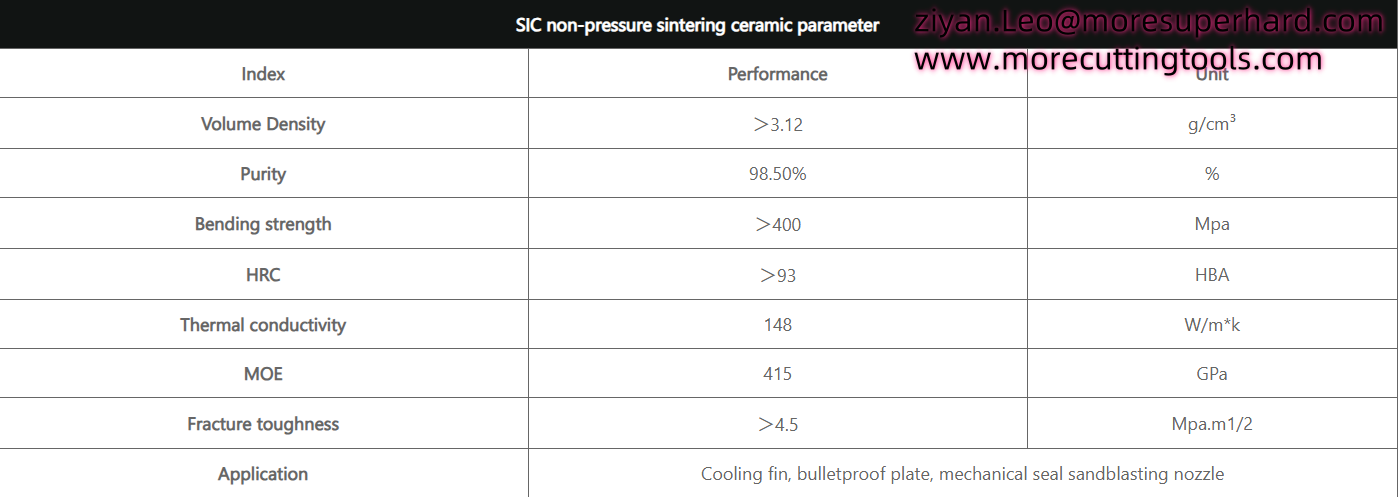

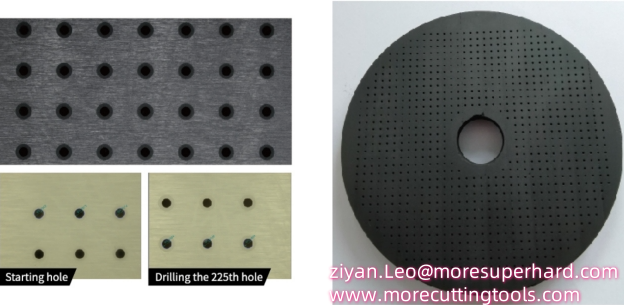

SIC Atmospheric Pressure Sintered Ceramic Processing Case - Φ0.45

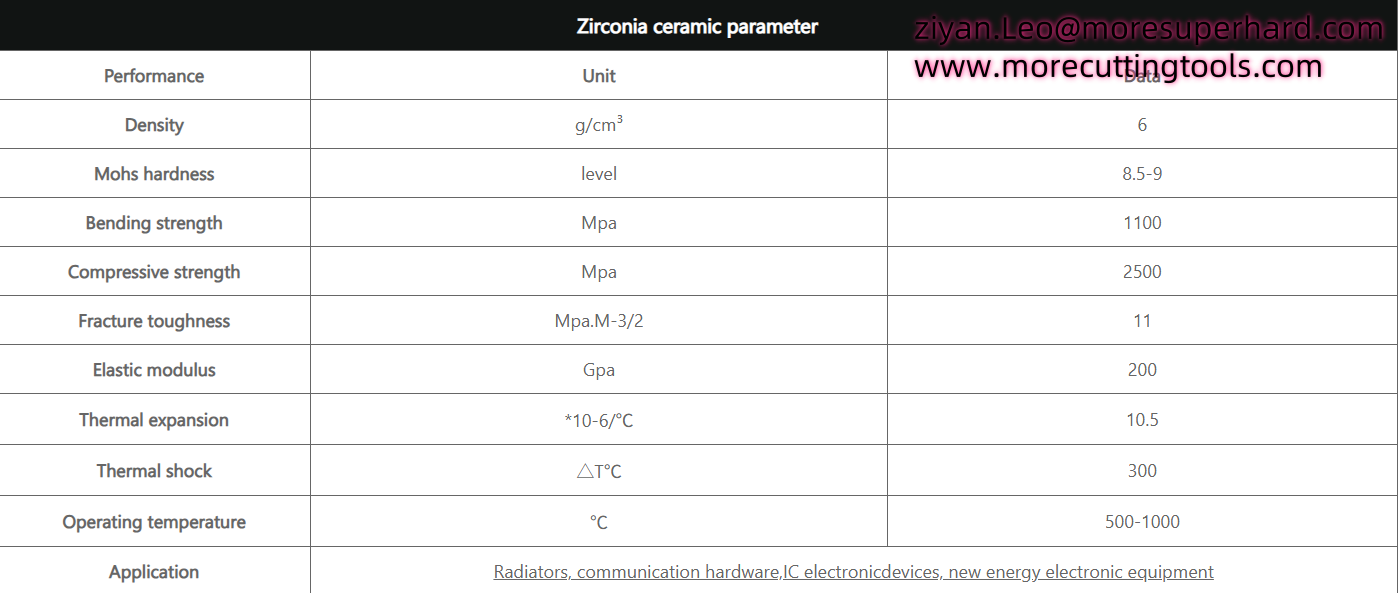

ZIRCONIA PROCESSING CASE-Φ0.451

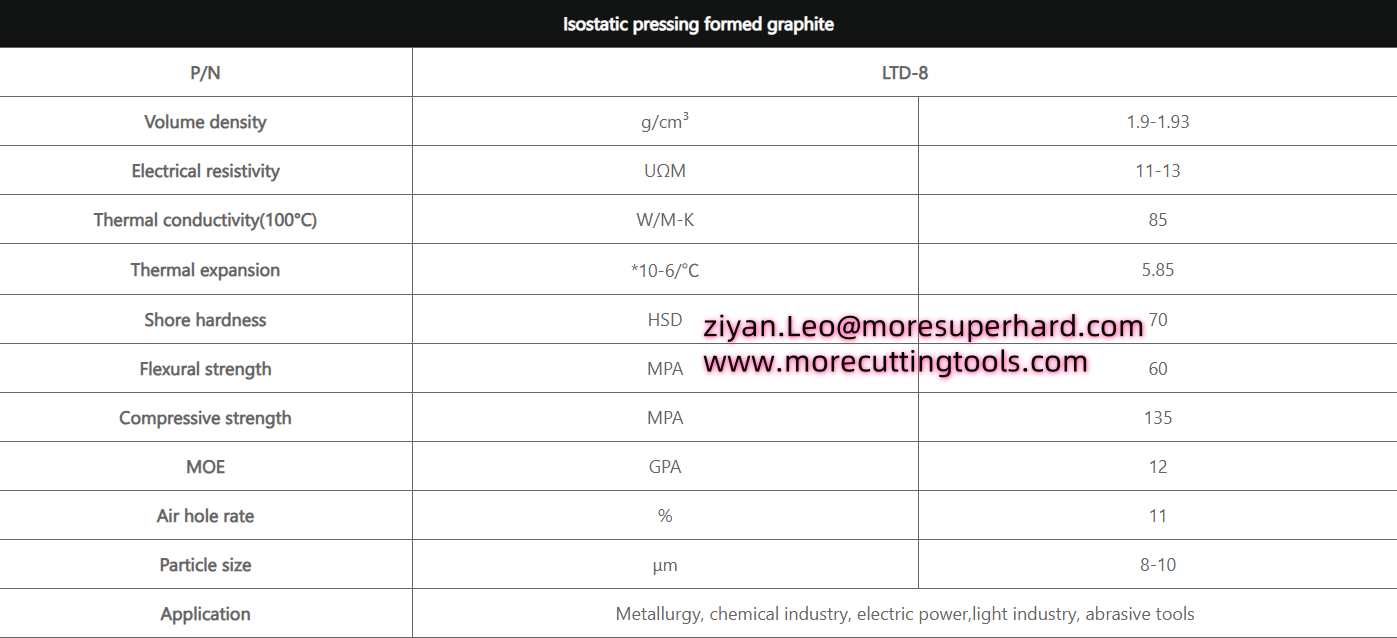

GRAPHITE PROCESSING CASE-Φ0.798
