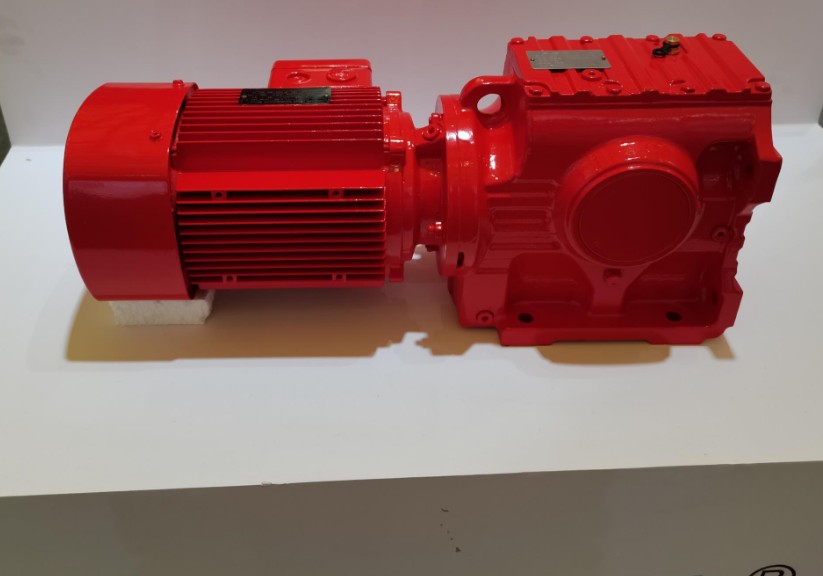

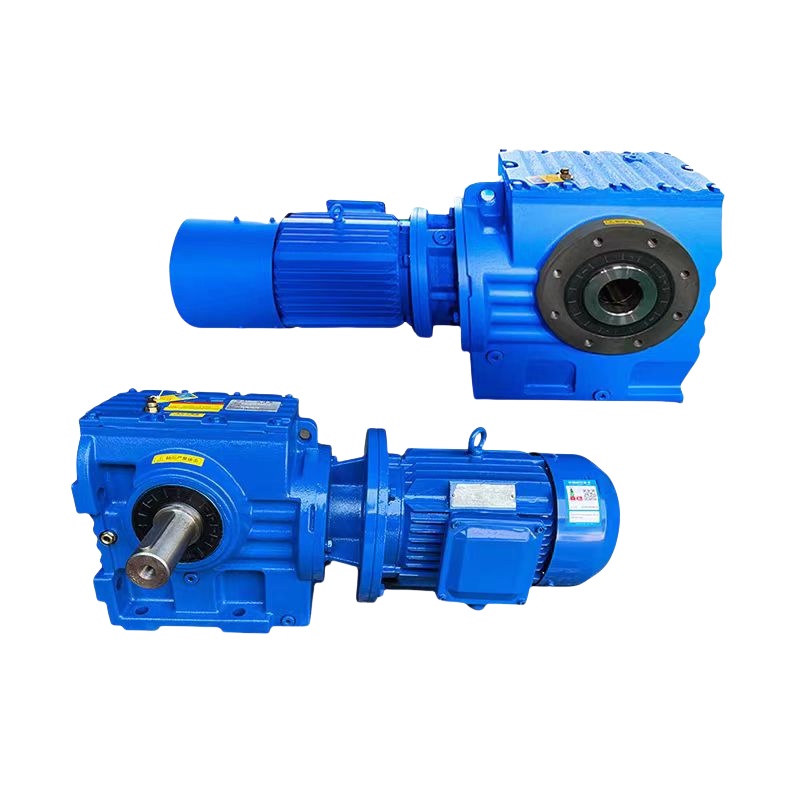

Manufacturer's Drawing Structure of Reducer Model, S Worm Gear Helical Gear Reducer Motor, NORD Brand

FOB Price:	100.00 - 500000.00 USD/Unit
Supply Ability:	100,000 Unit(s) per Month
Shipping:	Sea and air freight,DHL
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy, Other

In Stock

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

After-sales Service Provided: Overseas service center available
Condition: New
Brand Name: Hu Xing
Weight: 1kg-50000kg
color: blue

Specifications

Performance characteristics of Huxing gear reducer:
1. the combination of helical gears and worm gears has a compact structure and a large reduction ratio.
2. Installation methods: Foot installation, hollow shaft installation, flange installation, torsion arm installation, small flange installation.
3. Input methods: motor direct connection, motor belt connection or input shaft, connection flange input.
4. Average efficiency: the reduction ratio of 9.5-69.39 is 99%; 90.43-288 is 62%; the GS/R combination is 59%.
5. Combining with the R series can result in a larger speed ratio.
Technical parameters of Huxing GS series gear reducer:
Speed ratio range: Basic model 9.96-244.94, GS series/R series combination model can reach 8608
Torque range: 43-4200 Nm
Power range: 0.18-22 kW

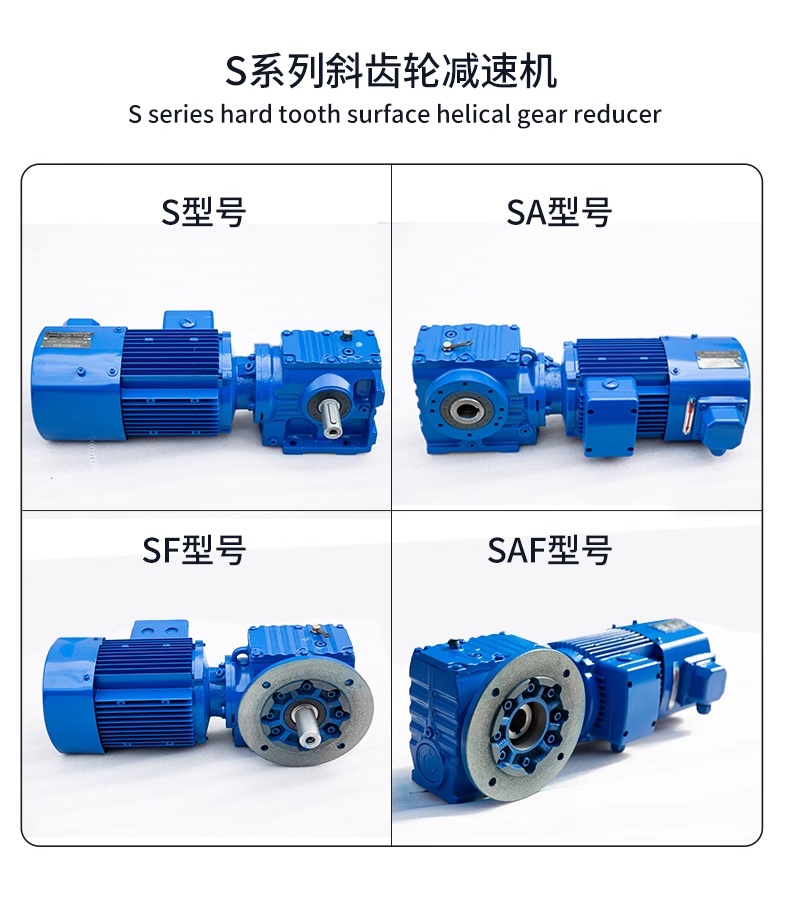

Structural form:
GS axial extension connection GSF axial extension, flange installation
GS... GS - represents shaft input GSA - shaft mounted connection
GSAF - shaft mounted, flange mounted
Basic model:
Solid shaft output foot installation types: GS39, GS49, GS59, GS69, GS79, GS89, GS99

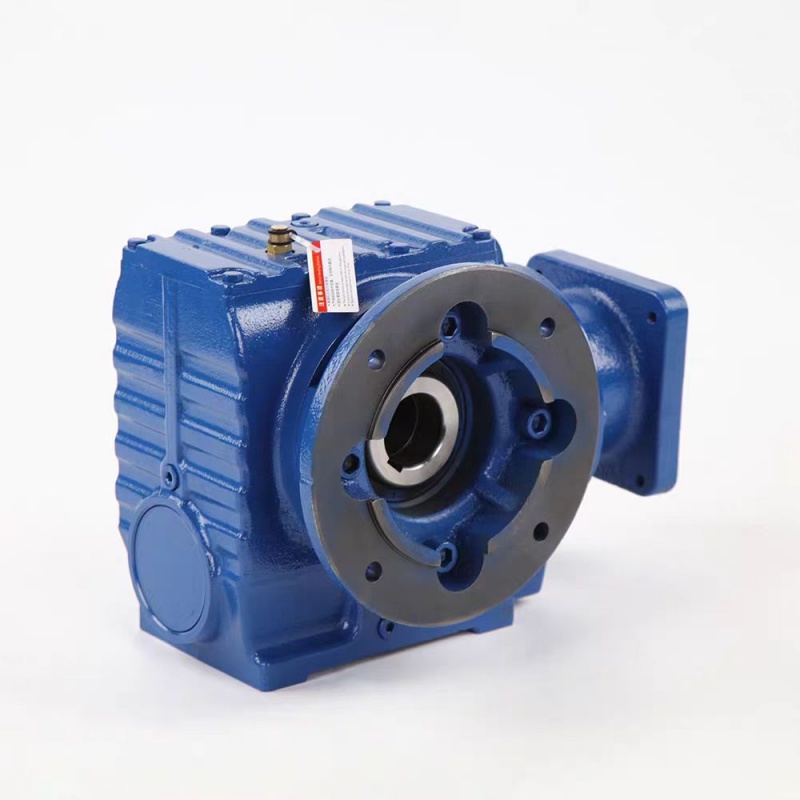

Solid shaft with output flange installation types: GSF39, GSF49, GSF59, GSF79, GSF99, GSF89, GSF99

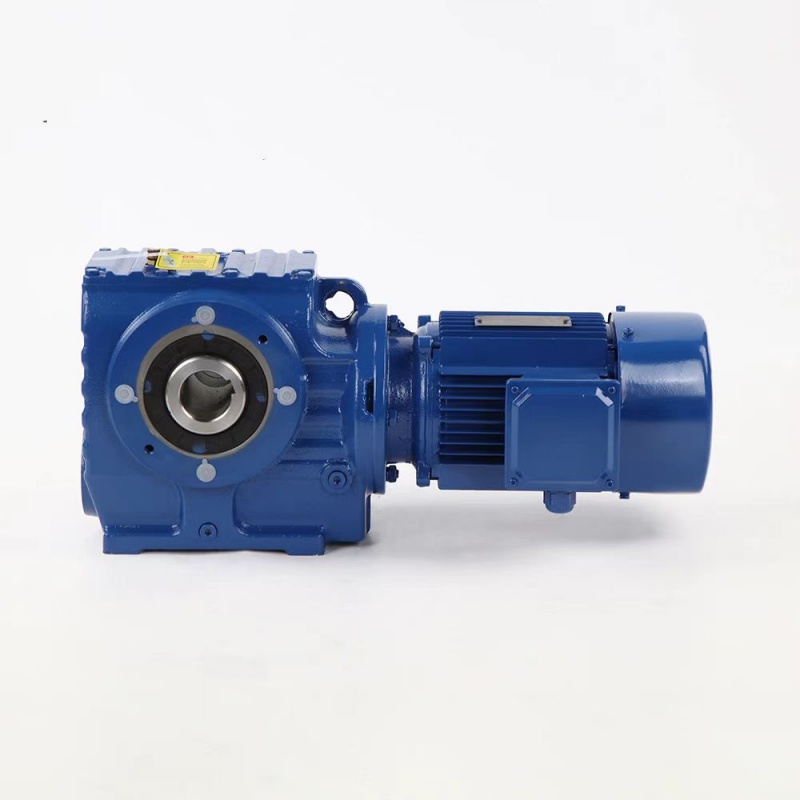

Output hollow shaft installation types: GSA39, GSA49, GSA59, GSA69, GSA79, GSA89, GSA99

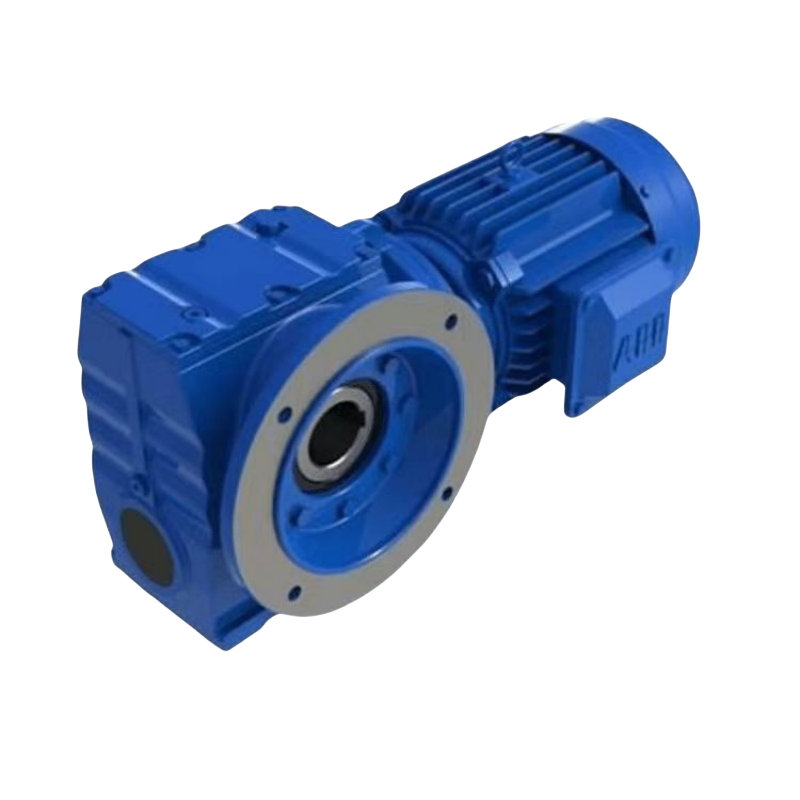

Output hollow shaft with output flange installation types: GSAF39, GSAF49, GSAF59, GSAF69, GSAF79, GSAF89, GSAF99
Output hollow shaft with torsion arm installation types: GSAT39, GSAT49, GSAT59, GSAT69, GSAT79, GSAT89, GSAT99
Output hollow shaft with small flange installation types: GSAZ39, GSAZ49, GSAZ59, GSAZ69, GSAZ99, GSAZ89, GSAZ99

Solid shaft input foot installation types: GSS39, GSS49, GSS59, GSS69, GSS99, GSS89, GSS99
Solid shaft output foot installation combination type: GS39R19, GS49R19, GS59R19, GS69R39, GS99R39, GS89R59, GS99R59
Hollow shaft input foot installation types: GSAS39, GSAS49, GSAS59, GSAS69, GSAS99, GSAS89, GSAS99
Solid shaft output foot installation combination type: GSA39R19, GSA49R19, GSA59R19, GSA69R39, GSA99R39, GSA89R59, GSA99R59
Solid shaft input flange output installation types: GSFS39, GSFS49, GSFS59, GSFS69, GSFS99, GSFS89, GSFS99
Output with flange foot installation combination: GSF39R19, GSF49R19, GSF59R19, GSF69R39, GSF99R39, GSF89R59, GSF99R59
Solid shaft input with flange installation types: GSAFS39, GSAFS49, GSAFS59, GSAFS69, GSAFS99, GSAFS89, GSAFS99
Output hollow shaft with output flange combination type: GSAF39R19, GSAF49R19, GSAF59R19, GSAF69R39, GSAF99R39, GSAF89R59, GSAF99R59
Output hollow shaft with small flange installation types: GSAZS39, GSAZS49, GSAZS59, GSAZS69, GSAZS99, GSAZS89, GSAZS99
Output hollow shaft with small flange installation combination type: GSAZ39R19, GSAZ49R19, GSAZ59R19, GSAZ69R39, GSAZ99R39, GSAZ89R59, GSAZ99R59
