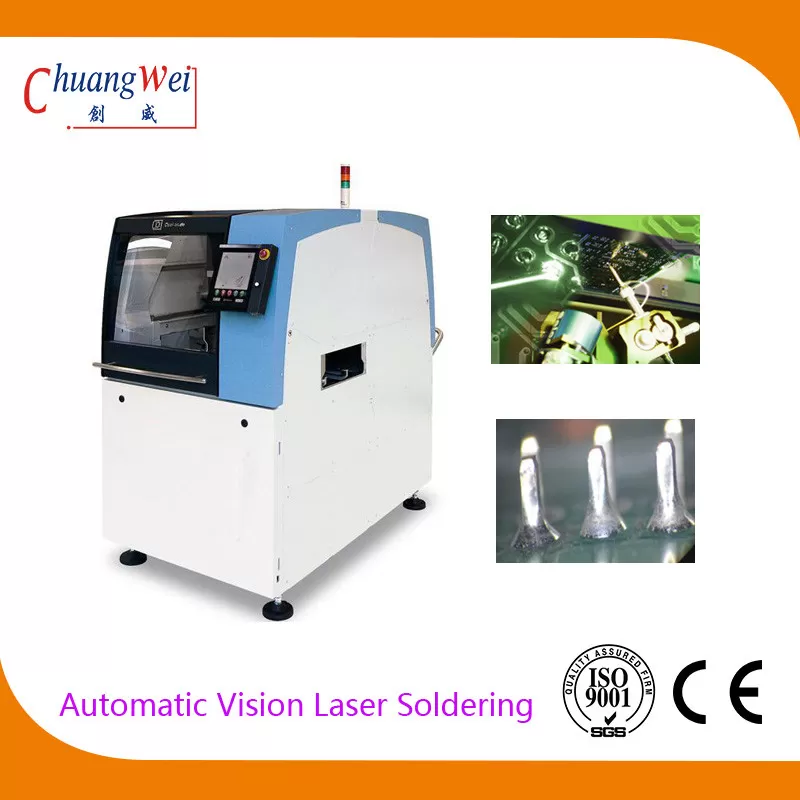

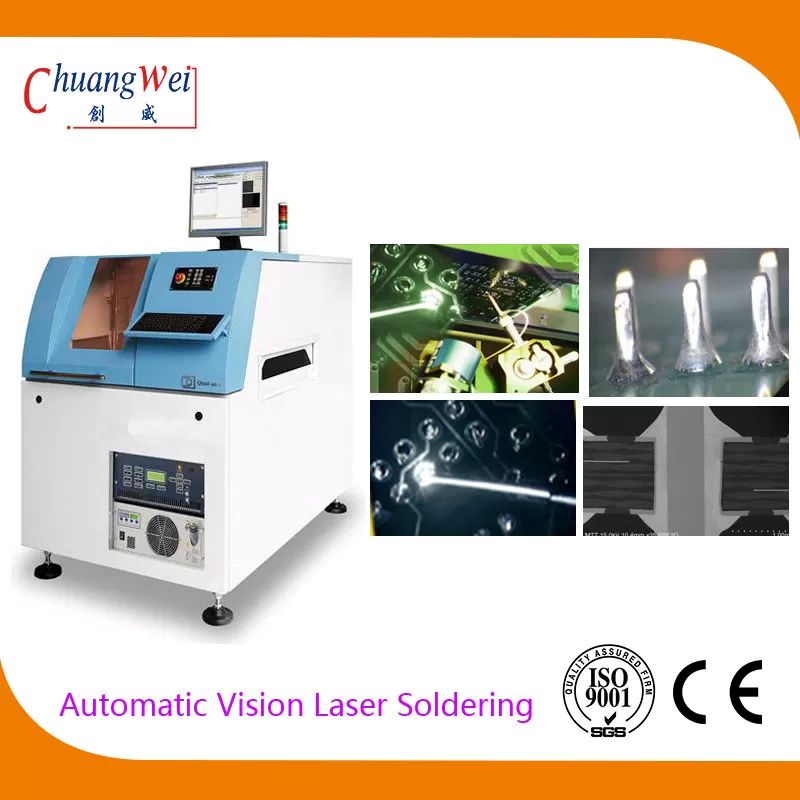

Laser Hot Bar Soldering Machine with CCD Coaxial Positioning Automatic Vision

FOB Price:	1.00 - 99999.00 USD/Set
Payment Terms:	L/C, T/T, Other, Western Union

In Stock

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE
Usage: Positioning Automatic Vision
Brand Name: SMT fly
Voltage: 2P 220V 50HZ
Laser Hot Bar Soldering: in line

Specifications

Product Details:

Place of Origin:	China
Brand Name:	ChuangWei
Certification:	CE ISO9001
Model Number:	CWLS-V

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	Negotiable
Packaging Details:	Plywood case
Delivery Time:	15days
Supply Ability:	10sets

Color:	White & Blue	Power Interface:	2P 220V 50HZ
Laser Power:	60W	Spot Size:	0.3mm
Wave Length:	808mm	Positioning Way:	CCD Coaxial Positioning
Temperature Monitors:	Infrared Temperature Measurement (coaxial Temperature Measurement)	Work Range:	300mm*300mm
Total Power:	2KW	Size:	120012001700mm
Weight:	180KG	Name:	Automatic Visual Laser Top Layer Soldering System
Highlight:	PCB welding machine, PCB soldering machine

the product flows from the track into the welding station. after CCD photography, the tin wire drawing mechanism sends the tin wire to the site to be welded, and the laser laser tin completes the welding.

Special Features

1.Soldering product with lead or without lead, causing no pollution and saving tin for transiting tin with a certain quality No need to change tin wire

2.There is no need to add prefluxing, without full heating, low energy consumption, the perfect solution to surface warping problem.

3.Suitable for large and small size, less solder joints, solder joints are difficult to approach, the inner layer of high difficulty products.

4.Top delivery tin and bottom delivery tin two kinds of models, optional from top to top welding, no need to turn plate, solve labor cost and fixture complex problem.

5.Efficient heat application and solder supply enables stable soldering automation

6.It enables soldering in narrow confines on high-density board assembly.

7.High maintainability

Product Parameter

SUbject	TEchnical Parameters
Name	Laser Top Layer Soldering System
Power Interface	2P 220V 50HZ
Laser Power	60W
Spot Size	0.3mm
Wave Length	808nm
Positioning Way	CCD Coaxial positioning
Temperature Monitors	Infrared temperature measurement (coaxial temperature measurement)
Work Range	300mm*300mm
Total Power	2kw
Size	120012001700
Weight	180kg

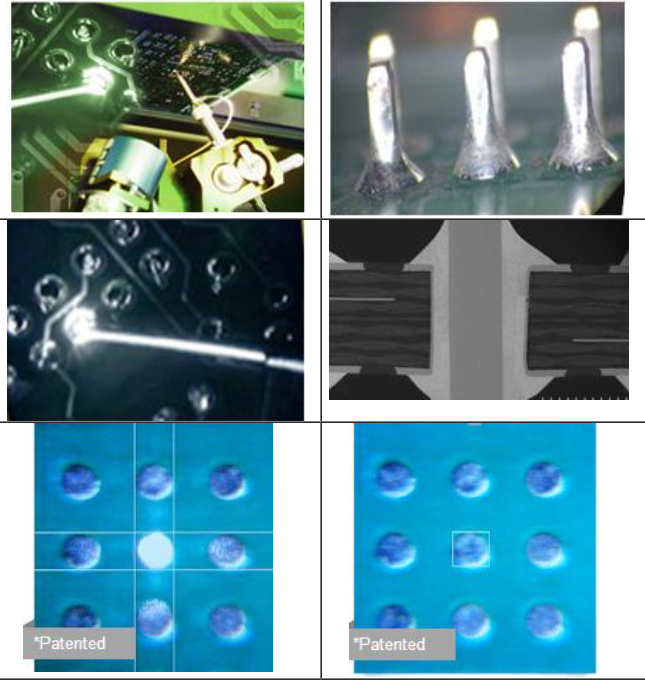

the most important characteristic of laser soldering is its non-contact soldering ability, and there is no contact at all with either the PCB or the component. There is no physical load placed on the PCB, only laser light and the solder supply. Laser's great advantages are in its ability to efficiently apply pinpoint heat, to apply light to confined spaces where a tip cannot fit, and to handle tightly-spaced assemblies, by changing the light angle and taking other steps. Maintenance work can also be reduced.
