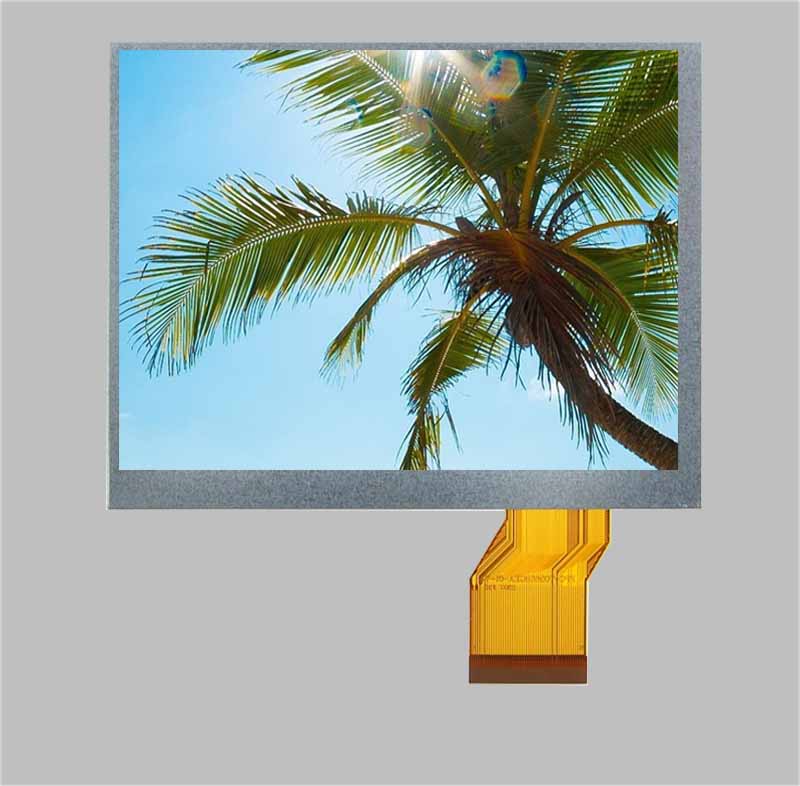

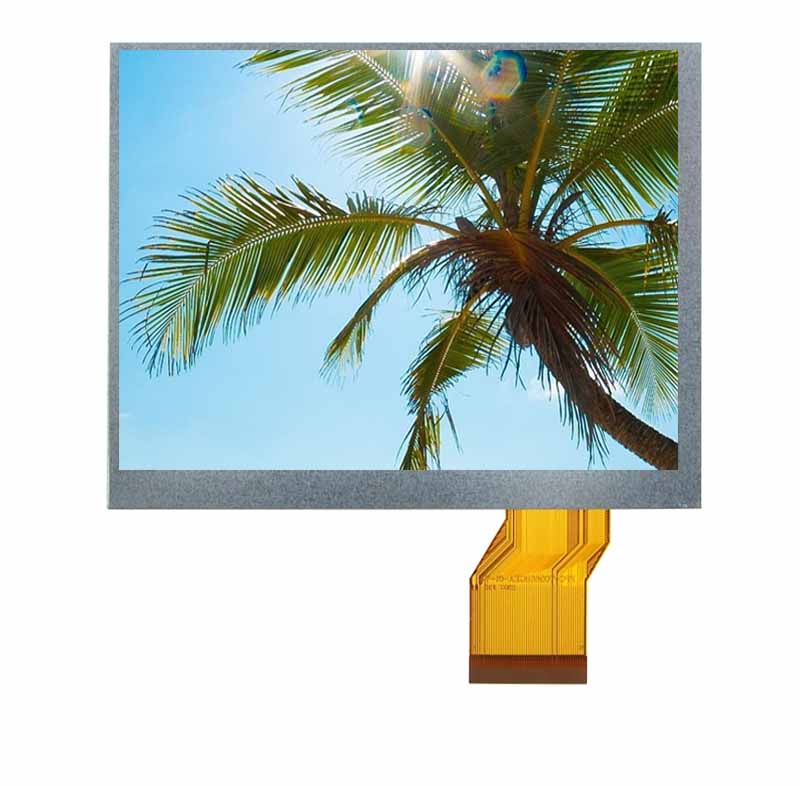

5.6 Inch TFT LCD Display 640x480 TTL MLT056V50-5 Replacing AT056TN12
| FOB Price: | 19.00 - 25.00 USD/Piece |
|---|---|
| Shipping: | EXW shenzhen |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- Type: TFT
- Brand Name: Maclight
- Interface Type: RGB
- Resolution: 640x480
- application: industrial
- Model Number: MLT056V50-5
Specifications
5.6 inch TFT display module introduction:
TFT LCD display 5.6 inch is a color TFT LCD Display panel which is made with 640RGBx480 resolution. It is compatible to Innolux AT056TN12 V.3 in outline dimensions and interface, the hardware has no need to change for replacing AT056TN12 V.3.
the MLT056V50-5 could be long term supplied in coming 10 years.
the 5.6'' TFT LCD panel MLT056V50-5 is composed of a TFT-LCD panel, driver IC, FPC, a backlight unit.
this 5.6 TFT LCD Screen is IPS display, free viewing, It supports RGB interface.
the display area of MLT056V50-5 is 5.65 inch, 640x480 pixels, 4:3 aspect ratio, 50 pins RGB(TTL) 24 bits interface. with JD9168 IC driver. ROHS compliance.
5.6'' TFT display module key parameters:
Display Size |
5.6 inch TFT (Diagonal) |
Resolution |
640(RGB)X480 |
Module Dimension |
126.50(W)x 100.00(H)x5.7(T) mm |
Active Display Area |
115.2 (W)86.4 (H) mm |
Viewing Direction |
All |
LED Backlight Color |
White LED |
Driver IC |
/ |
Interface |
RGB |
Luminance |
450 nits |
Touch screen |
with CTP/RTP optional |
LCD Interface:
Pin No. |
Symbol | I/O | Function |
1-2 |
VLED+ |
P |
LED back light(Anode) |
3-4 |
VLED- |
P |
LED back light(Cathode) |
5 |
GND |
P |
Ground. |
6 |
NC |
No connection. | |
7 |
VCC |
P |
Digital Power Supply Voltage. |
8 |
NC |
No connection. | |
9 |
DE |
I |
Data enable pin. |
10 |
VS |
I |
Frame sync signal. |
11 |
HS |
I |
Line sync signal. |
12-19 |
B7-B0 |
I |
Blue data bus. |
20-27 |
G7-G0 |
I |
Green data bus. |
28-35 |
R7-R0 |
I |
Red data bus. |
36 |
GND |
P |
Ground. |
37 |
DCLK |
I |
Data clock. |
38 |
GND |
P |
Ground. |
39 |
L/R |
I |
Left/right scan direction on panel module. |
40 |
U/D |
I |
up/down scan direction on panel module. |
41 |
NC |
No connection. | |
42 |
NC |
No connection. | |
43 |
VPP(NC) |
No connection. | |
44 |
RESET |
I |
Global reset. |
45 |
NC |
No connection. | |
46 |
NC |
No connection. | |
47 |
SCL |
I |
Serial interface clock.Fix to VDDI or VSS when not in use. |
48 |
SDA |
I |
SPI interface data input /output pin. Fix to VDDI level when not in use. |
49 |
CS |
I |
Chip select input pin ("Low" enable). |
50 |
STBYB |
P |
STBYB=1 Normal Mode. STBYB=0 Standby Mode |
If the luminance is not enough for your requirement, please feel free to contact us, we could custom make the backlight to upgrade the brightness up to 1,000 nits.
Want to know more products and price details, Contact us now!
