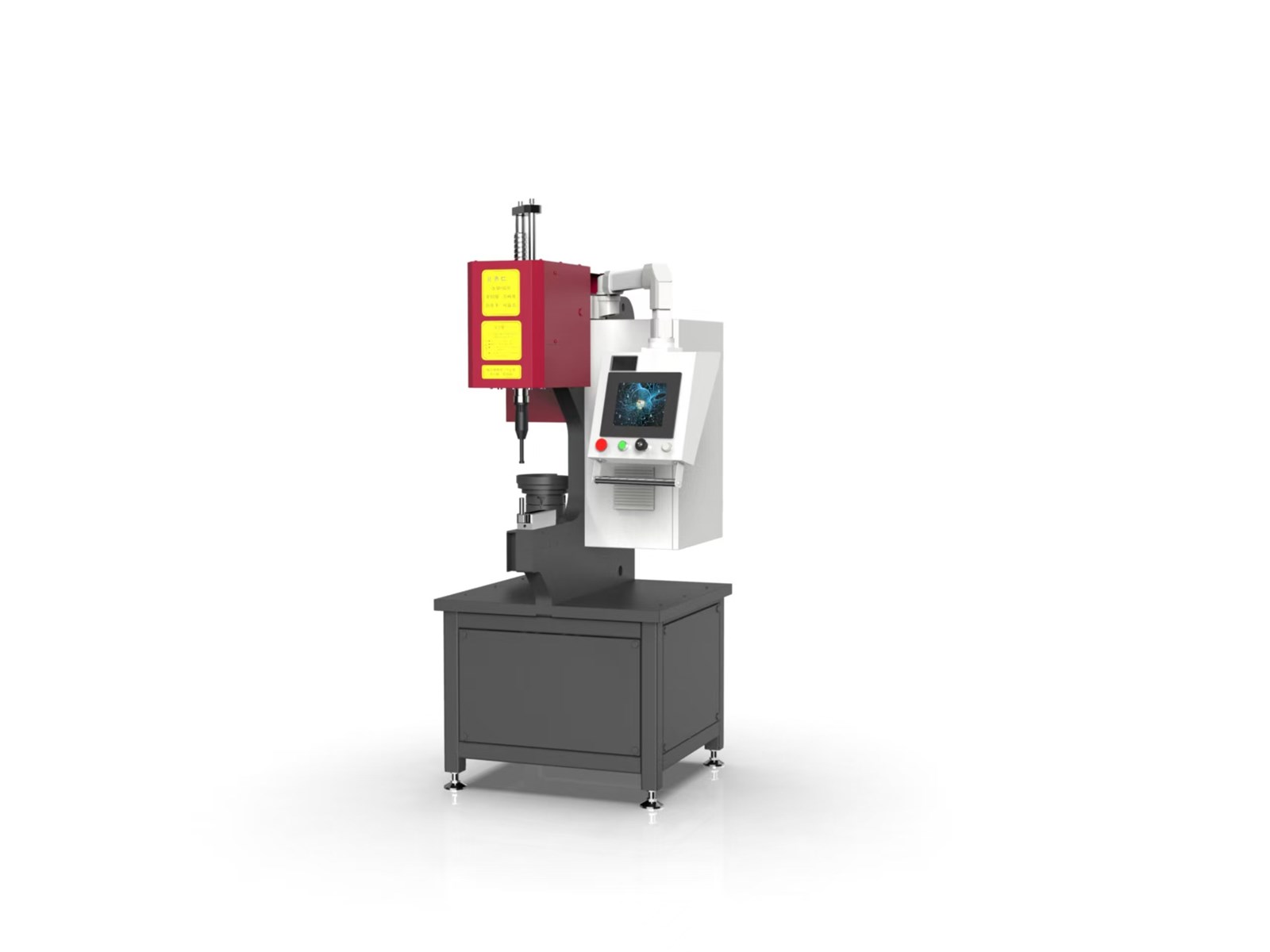

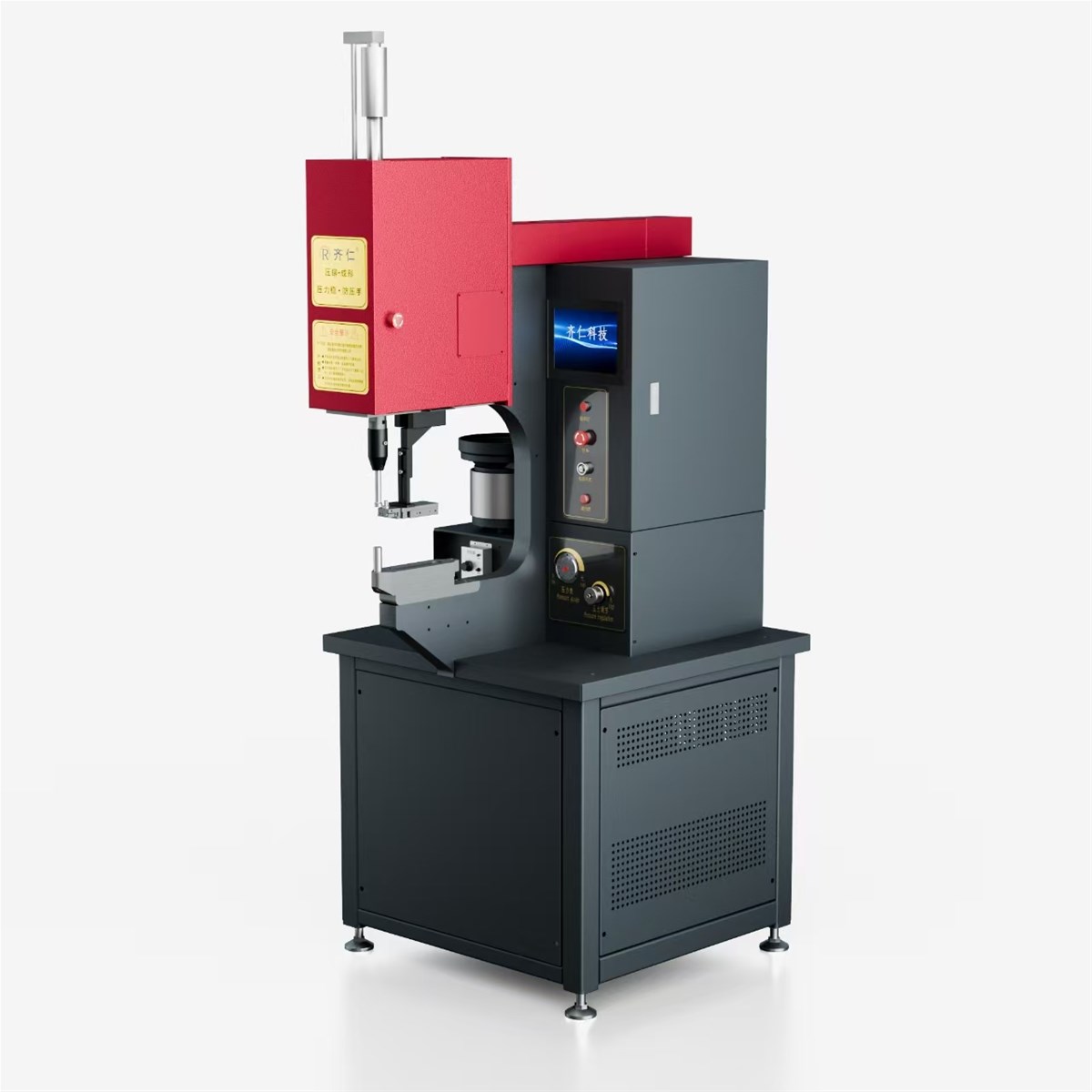

10T Cold Pressing Equipment Riveting Machine
| FOB Price: | 3000.00 - 5000.00 USD/Set |
|---|---|
| Supply Ability: | 40 Set(s) per Month |
| Shipping: | EXW |
| Payment Terms: | L/C, D/A, D/P, T/T, Safebuy, Other, cash |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
Quick Details
- After-sales Service Provided: No overseas service provided
- Condition: New
- Brand Name: Inch2
- Weight: 1050kg
- color: RAL 7016&3001
- Model Number: 1024
Specifications
Detail PLS add Wechat
You can Factory inspection by video
Drive principle:Hydraulically powered, featuring mature technology and consistently stable and reliable performance.
Hand Crush Prevention Safety System:Photoelectric induction type, conductive detection and control.
PLC control:7-inch touchscreen
User-friendly and straightforward operation.
Prevent missing&Count:Prevent missing rivets. Auto-counter technology, output statistics.
Forward limit:
LCL prevent indentation on the material surface,Adjustable range of 0-100mm.
Upstroke:Photoelectric switch sensing prevents the oil cylinder from rising to the
Limit position, reduces oil circuit power consumption, and smooth-going.
Automatic feeding system (optional):Suitable for various types of M3-M6 rivet screws and nuts, automatic feeding is 2-3 times more efficient than traditional manual feeding.
Forming:Flanging and grinding teeth, stamping convex hull, sinking hole extrusion, no riveting connection.
4-station lower mold &
Avoiding J-shaped hook (optional):4-station suitable for various rivet usage conditions of single workpiece,J-shaped hook is suitable for riveting and avoiding positions of U-shaped parts.
Pressure range:6T,8T,10T,customize products according to the customers'requirement.
C Type throat depth:STANDARD EQUIPMENT 6T-450mm,8T-500mm,10T-600mm,customize products according to the customers'requirement.
Power:6T-3.5KW 8T-5.5KW,380VAC,50Hz
