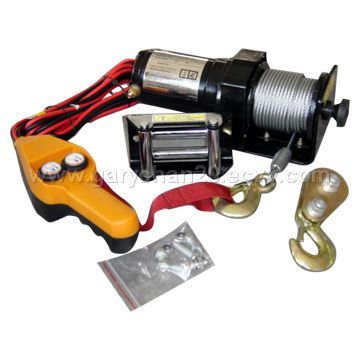

2000lbs winch

Inquiry Now

Specifications

Specifications: 1) Performance: 12V DC 2) Rated line pull (single line): 2,000lbs (907kg) 3) Motor: 0.71hp 4) Gearing: differential planetary 5) Gear ratio: 153:1 6) Free spooling clutch pull and turn 7) Braking: dynamic 8) Wire rope: 5/32" x 49 (4mm x 15.2m) 9) Drum diameter: 1.25" (31.75mm) 10) Dimensions (L x D x H): 285 x 105 x 105mm Layer of cable Rated line pull Total rope on drum 1 2,000lbs 2.0m 2 1,630lbs 4.3m 3 1,380lbs 6.8m 4 1,190lbs 9.5m 5 1,050lbs 12.5m 6 940lbs 15.2m Outer packing: 4pcs/ctn Carton dimensions: 47 x 33 x 34cm N.W.: 21.0kg G.W.: 23.0kg
