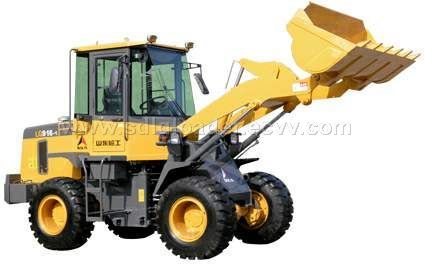

Shandong Lingong Construction Machinery Co.,Ltd
China Manufacturer with main products: Machinery |
Related products from verified members
Specifications
ENGINE Model ------------cummins B3.3(made in Japan) Rated power-----------------------------------60kW Rated speed-------------------------------2200r/min exhaust-----------------------------0.020in/0.50mm TRANSMISSION SYSTEM Type----------------Single phase 3 elements single turbo hydraulic converter Torque ratio--------------------------------------3.43 Inlet oil pressure-------------------0.49~0.59Mpa Outlet oil pressure-------------------0.2~0.3Mpa Operating pressure-------------------1.3~1.6Mpa Traveling speed Forward---1st: 0~10km/h, 2nd 0~26.5km/h Reverse---1st: 0~9.6km/h, 2nd 0~25km/h DRIVING AXLES AND MAIN DRIVE Main drive Type--------------------single stage, spur gear Gear ratio------------------------------------5.833 Final reducer Type----------------single stage planetary shift Gear ratio----------------------------------------3.9 BRAKING SYSTEM Braking pressure-------------------0.68~0.78Mpa Service brake---Air over hydraulic disc on 4 wheels Parking brake------------internal expansion type
