shandong weichai group
China Manufacturer with main products: single cylinder, multiple cylinder diesel engine, diesel generator, tractor, agricultural machinery |
Related products from verified members
| Place of Origin: | Shandong in China |
|---|---|
| Packaging Details: | WOODEN CASE |
Specifications

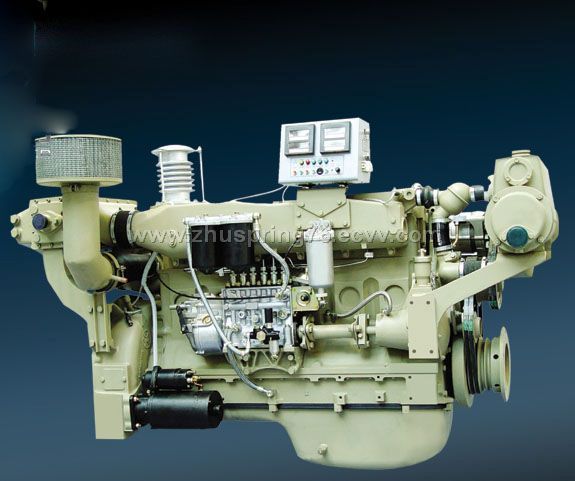

20~30 HP marine diesel engine set TECHNICAL SPECIFICATIONS Type 2-cylinder, Water-cooled, vertical, 4-stroke Model CA-15 (15kW/600rpm after 3.5:1 gearbox) Engine Model 295C/SD2100C Bore/stroke 95-100/115 mm Rated Output 22.4-30hp / 1800-2200rpm Fuel consumption 173.8-186 g/hp. hr. Net Weight 295-320kg (without gearbox) 550-600kg (with gearbox) Application For inlandand inshore fishing / harbor boats and etc. 40~100 HP marine diesel engine set TECHNICAL SPECIFICATIONS Type 4/6-cylinder, Water-cooled, vertical, 4-stroke Engine Model 495C/R4105C(C1)/R6105C(C1) Bore/stroke 95/100/105mm Rated Output 43.5/48(58.7)/71(88.5) hp/1500(2000) rpm Fuel consumption 170-185g/hp. hr. Net Weight 320/430/530kg (without gearbox) Application For inlandand inshore fishing / harbor boats and etc. 190~440 HP marine diesel engine set TECHNICAL SPECIFICATIONS Type Steyr WD615/618 series 6-cylinder, Water-cooled, vertical, 4-stroke, direct injection Engine Model WD615.61C/67C/68C, WD618C Bore/stroke 126/130, 126/155mm Rated Output 190-440hp/1800-2350rpm Fuel consumption 143-160g/hp. hr. Net Weight 1500-2000kg Application For transport ship, fishing boats, harbor boats, authority boats (navy, customs, police) and etc. 400~680 HP marine diesel engine set TECHNICAL SPECIFICATIONS Type 6-cylinder, Water-cooled, vertical, 4-stroke Engine Model X6170Z Bore/stroke 170/200mm Rated Output 400-680hp/1000-1500rpm Fuel consumption 150-154g/hp. hr. Net Weight 7000kg Gearbox MB320Z, HC400, 2:1~4:1 Application For transport ship, fishing boats, tug boats and etc. 500~2500 HP marine diesel engine set TECHNICAL SPECIFICATIONS Type 5-18-cylinder, Water-cooled, vertical, 4-stroke Model MAN-B&W L+V20/27 Bore/stroke 200/270 mm Rated Output 500-2500hp/720-1000rpm Fuel consumption light diesel oil, heavy diesel oil (marine heavy oil) Net Weight 4700-15200kg(+600-700kg/cyl.) Gearbox GWC, 2:1~6:1 or flexible shaft coupling Application Prime engine set for transport ship, fishing boats, tug boats and etc. 3060 HP marine diesel engine set TECHNICAL SPECIFICATIONS Type 12-cylinder, V-type Water-cooled, vertical, 2-stroke Model 12VE230ZC-C Bore/stroke 230/300 mm Rated Output 3060hp/750rpm Fuel consumption 154.4+5% g/hp. hr. Net Weight 1000kg (without gearbox and propeller) Application Prime engine set for transport ship, fishing boats, tug boats and etc.
