Automatic Can Feeding,Filling and Packaging Machin

Specifications

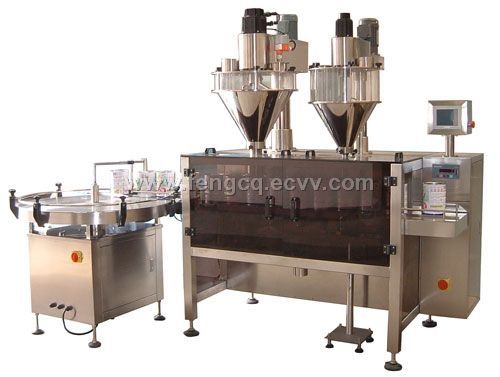

DCS-2B-II is new-design can packing machine after spurring original turnplating can feeding machine based on long-term practice in power can can feeding fields. Master & autiliary 2- header filling system and first-creation can filling system, which guarantee high accuracy and remove the shortage of inconvenient cleaning turnplating can feeding machine. DCS-2B-II could complete feeding, weighing, filling and waste discharge tasks. It also could be equipped with other equipments for whole set can packing pipeline which is suitable to the powder and granular materials( easily fluid or fluidity is weak). For example, milk powder, rice flour, albumen powder , cacao powder, powder leechdom, additives, sugar, dye, essence & flavors and so on. Metering Mode :2- header filling system Container Size :30 ~ 160mmH: 50 ~ 350mm Filling Weight :10 ~ 2000g Packaging Accuracy:package weight < 100g,with an error < 2% 100 ~ 500g,with an error<1%, > 500g,with an error < 0.5% Packaging Rate:20 ~ 40 cans per minute Power Supply :3P / 220V ~ 415V Total Power:2.2KW Total Weight :350Kg Overall Dimensions 1735?020?050mm Hopper Volume 45L(main) 35L(complementarity) Independent design, using can or bottle feeding, filling. Except of motor, electronics in the whole machine, other parts are stainless steel. Packed mode transparent hopper, beautiful and clear, loading and unloading without toolings. It is convenient to be cleaned. Servo motor driving screw is characteristics of no easy abrasion, high-precision orientation, setup rotate speed, stable performance PLC control system is characteristics of stable working, anti-jamming, high precise weighing. Weighing feedback proportion tracer function that conquer the shortage: packing weight is various from material proportion is different. Overweight alarm, elimination equipment automatically eliminate the unqualified which could guarantee each qualified in pipeline. No need separate in the end of working procedure. Touch screen controller show clearly working status, operation sign, fault state and production statistics. Operation is simple and intuitionistic. Replacing screw parts which could be fixed super thin powder and small granula various materials. Holding can and control of dust equipments make feeding mouth and container airproof during feeding. Protection the dust from prolutions.
