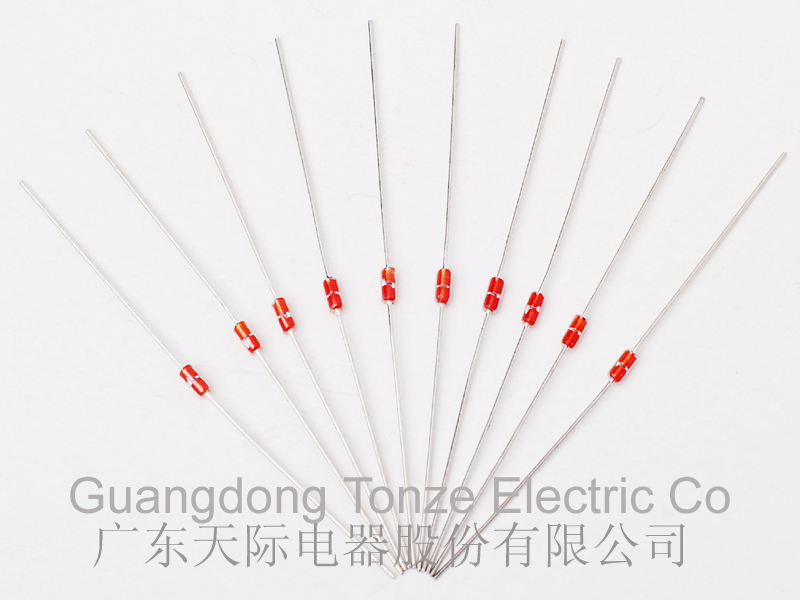

NTC Thermistor MF58

Specifications

MF58 series are purified glass wrapped diode thermistors with two terminals extending axially, processed with the combination of ceramic and semiconductor techniques.

Features:

· Purified glass encapsulated NTC thermistor with radial lead extending.

· Wide range of resistance & Beta value with high resistance precision.

· Usable in high-temperature and high-moisture environments due to the glass wrapping.

· Small, light, firm structure and convenient for automation mounting on PCB.

· Quick response to thermal sensing with high sensitivity.

· High working stability and reliability.

Applications:

· Temperature compensation and detection of household appliance (e.g. induction cooker, microwave ovens, electric fans, electric heaters, etc.)

· Temperature compensation and detection of office automation facilities (e.g. copiers, printers, etc.)

· Temperature compensation and detection of the industrial, medical, environmental protection, weather and food processing equipment.

· Liquid level display and flow rate measurement.

· Mobile phone battery.

· Temperature compensation of apparatus coils, integrated circuits, quartz crystal oscillators and thermocouples.

Specification:

· The range of resistance under the rated zero power (R25℃): 0.1 ~ 1000 KΩ

· The allowable tolerance of R25℃: ±0.5%, ±1%, ±2%, ±3%, ±5%, ±10%

· The range of B value (B25/50℃): 3100 ~ 4500K

· The allowable tolerance of B value: ±0.5%, ±1%, ±2%

· The range of operating temperature: -40℃ ~ +250℃

· Dissipation factor: ≥2mW/℃ (In Still Air)

· Thermal time constant: ≤20S (In Still Air)

· Encapsulated: Axial Lead

· Dimension: Glass: 2*4mm max.; Lead wire: ?0.5mm; Total length: 58mm
