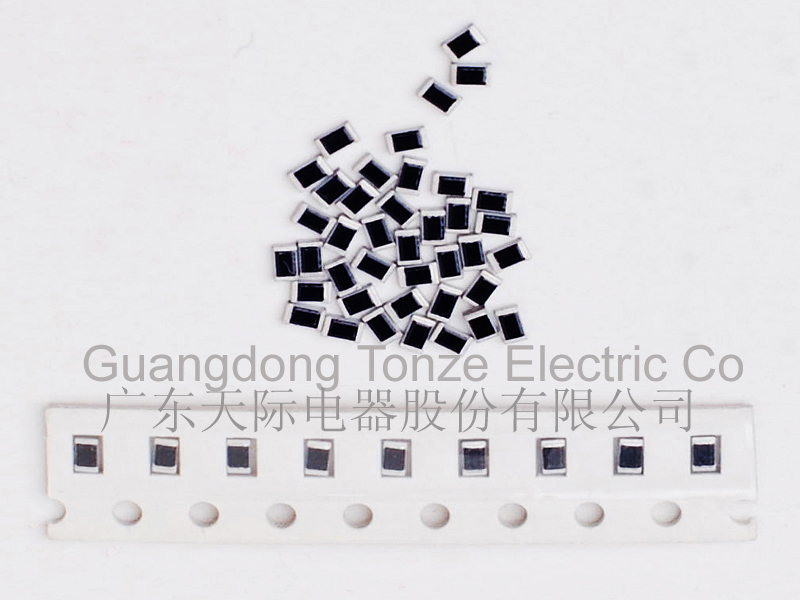

Chip NTC thermistor SMD
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- Brand Name: TONZE
- Model Number: SMD
- Type: Thermal Resistor
- Technology: Metal Oxide
- Package Type: Surface Mount
- Resistance: 470K
- Resistance Tolerance: 5%
- Operating Temperature: -30~125C
Specifications
· Miniature size, no down-lead, and ideal for high-density surface mounting requirement
· Ideal for wave and refold soldering
· Superior solder ability and resistance to soldering heat and impact
Application:
· Temperature compensation of semiconductor integrate circuit, LCD, transistor, crystal oscillator of mobile communication equipments
· Temperature detection of rechargeable batteries and CPU
· Temperature compensation of diversified circuits
Specification:
· The range of resistance under the rated zero power (R25℃): 0.1~1000KΩ
· The allowable tolerance of R25℃: ±1%, ±2%, ±3%, ±5%
· The range of B value (K): 3100～4500K
· The allowable tolerance of B value: ±1%, ±2%, ±3%, ±5%
· The range of operating temperature: -40℃ ~ +125℃
· Dissipation factor: ≤1.5mW/℃ (In Still Air)
· Thermal time constant: ≤5S (In Still Air)
· Encapsulated: Chip type
· Dimension: SMD0402, SMD0603, SMD0805
