Home  >Products Catalog > Press_Semi Automatic > Large Format Screen Printing Machine

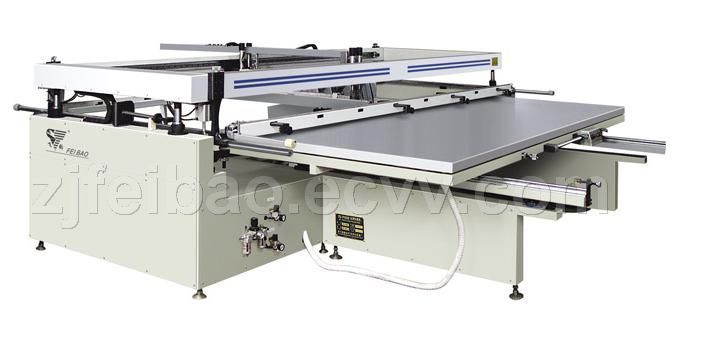

Large Format Screen Printing Machine SafeBuy Supplier Member

Supply Ability: 2 Set/Sets per Month
Shipping: 30 days
Payment Terms: L/C, T/T
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Zhejiang in China
Packaging Details: Wooden case

Specifications

Specifications and Model:       FB-2800                FB-2500

Max. printing size (mm):          1300x2800            1200x2500

Max. screen plate size (mm): 1700x3000            1800x3200

Printing Table Size (mm):       1500x3000             1400x2800

Printing thickness (mm):            0-50                      0-50

Formal dimension (l*w*h) (mm): 3740x3100x1200    3540x2800x1200

Power:                                      3P4N 380V 50Hz  3.8kw

Pressure (mpa):                     0.4-0.6mpa

Weight (kg):                                1700kg                      1900kg

It have been widely used for printing UV frosted or frost-flower wine box, cigarette case, cosmetics case, tea box, shirt box, the Chinese character of Happiness, decal Paper, decal paper for daily and artistic porcelain use, circuit Board, undried glue label, watermark and Ultraviolet counterfeit-avoiding printed matters, decal paper for PVC, automobile, motorcycle, indoor and outdoor advertisement and various of planar printed matters.

CHARACTERISTICA: This machine with large print area, vertical-type screen frame, double-track type printing parts and guideway in-and-out type working table, the machine can save labour and ensure that's planeness.

The latest designed working table positioning system can obviously improve printing accuracy.
