Home  >Products Catalog > Press_Semi Automatic > High-Precision Screen Printing Machine (A1 Series)

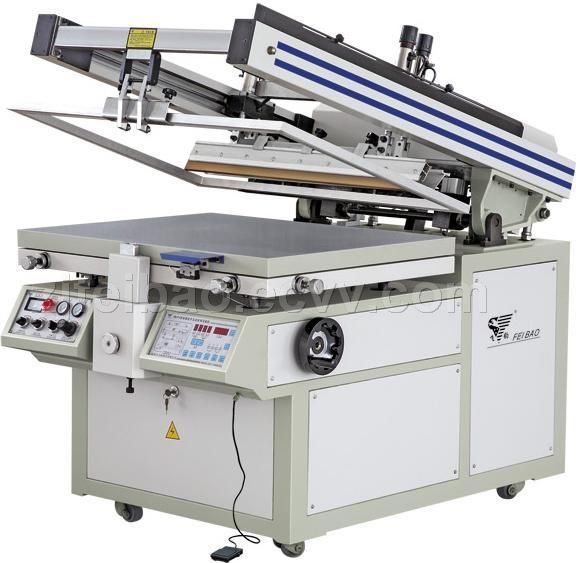

High-Precision Screen Printing Machine (A1 Series) SafeBuy Supplier Member

Supply Ability: 5 Set/Sets per Month
Shipping: 30 days
Payment Terms: L/C, T/T
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Zhejiang in China
Packaging Details: Wooden case

Specifications

Characteristic of High-Precision Screen Printing Machine (A1 Series):

1. By servo motor control printing itinerary (high viscosity ink for printing);
2. Immediately from the network structure and operation of synchronous scraper in the same time, not too demanding Screen can get high precision printing;
3. Pneumatic locking net frame;
4. Unit allocation security protection devices;
5. Aluminum ramps arm.

MODEL FB-8060A1 FB-9060A1 FB-12060A1
FB-12080A1
MAX. PRINTIGN SIZE 800x600mm 900x600mm 1200x600mm 1200x800mm
WORKTABLE SIZE 900x800mm 1000x800mm 1300x800mm 1300x1000mm
MAX. FRAME SIZE 1000x850mm 1100x850mm 1400x850mm 1400x1100mm
AIR PRESSURE 0.4~0.6mpa 0.4~0.6mpa 0.4~0.6mpa 0.4~0.6mpa
MAX. PRINTING SPEED 1200t/h 1200t/h 1100t/h 1000t/h
POWER 2.2kw 2.2kw 3.2kw 3.2kw
WEIGHT 550kg 580kg 620kg 800kg
MACHINE SIZE 1570x1080x1450mm 1570x1080x1450mm 1570x1380x1450mm 1850x1380x1450mm


Our customer' s success is our greatest accomplishment.
