Shenzhen Dowin Technologies Co.,Ltd
China Manufacturer with main products: Products include surge protective device (SPD) for power system, antenna system, signaling system. |

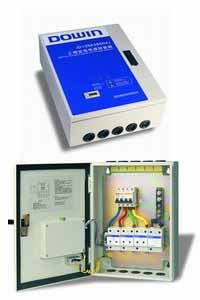

Surge Protective Device (SPD) protector
| Supply Ability: | 5000 pcs per month |
|---|---|
| Shipping: | in 30 days |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Place of Origin: | Guangdong Shenzhen in China |
|---|---|
| Packaging Details: | in paper cartons |
Specifications
JD150K385DH3 (J) MAIN FEATURE: Temperature control turn-off technology and over-current protection circuit avoid fire accident completely; Multi auto current-distributing tech makes it can endure lightning continuously and fit especially for high frequency lightning area; Low residual voltage, superior performance; Two colors LEDs indicate operating status syllabify and straightly; Remote alert monitor function.; Compact form, simple installation and maintenance; Good technics, long life even in bad circumstance The JD150K385DH3 series are designed for class I (class B) protection of single-phase AC power supply against lightning over-voltage destruction PARAMETERS Model JD120K385DH3(J) JD150K385DH3(J) Nominal voltage Un Single-phase 220V Max Continuous operating voltage Uc 385V Nominal discharge current In 50kA(8/20μs) 60kA(8/20μs) Maximum discharge current Imax 120kA(8/20μs) 150kA(8/20μs) Protection level Up(8/20μs) L-N mode U20kA≤1500V U30KA≤2000V U20kA≤1500V U25KA≤2500V N-PE mode U20kA≤600V U30KA≤1000V U20kA≤600V U25KA≤1200V Sensitivity of lightning counter ≤3kA(8/20μs) Response time ≤25ns Connecting cable section area 10mm2-35mm2 Dimensions 390mm*300mm*150mm Working environments Temperature - 40-+70, Humidity relative ≤95%, Altitude≤3km
Service Guarantee
-
Free Service Charge
ECVV doesn't charge any service fee to Buyers for buying this product.
-
ECVV Supply
ECVV is responsible for supply, and provides product quality inspection, fund supervision and supply chain services.
-
Product Quality Commitment
ECVV China Sourcing Agent will assess the reputation and supply ability of the factory and conduct field trips to select the high-quality Chinese factories for buyers.
-
Deposit Service Commitments
In order to improve the quality of service, ECVV will charge for a 100CNY deposit for the agent purchasing order, and the deposit will be part of subsequent purchasing costs.
After paying a deposit, if the purchasing order is not completed because of unsatisfied ECVV services, ECVV will refund your deposit.
surge arrester from this supplier
FOB Price: 0.10-10.00 USD/Piece
Min Order: 500 Pieces
FOB Price: 0.50-1000.00 USD/Other
Min Order: -1 Other
FOB Price: 2.00-9.00 USD/Other
Min Order: 1 Other
FOB Price: 0.10-10.00 USD/Piece
Min Order: 500 Pieces
