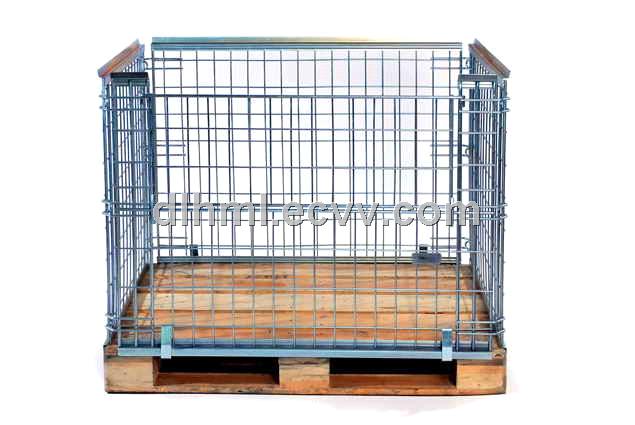

Euro foldable stackable storage metal steel wire mesh pallet cage

FOB Price: 37.00 - 45.00 USD/Set
Supply Ability: 1,000 Set/Sets per Week
Shipping: Dalian/Qingdao/Xiamen Port
Payment Terms: L/C, T/T
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Liaoning in China
Packaging Details: Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pall

Quick Details

  • Company Type: China Professional Manufacturer
  • Material: Mild Steel
  • Product warranty: 1 year
  • Exterior Dimension: 1200LX800WX1000H (mm)
  • Loading Capacity: 800 kg
  • Load in 40GP: 480 sets
  • Finish: Zinc/Powder coated/Hot dip galvanized
  • Product shelf life: up to 3 or 5 years against proper handling
  • Remark: Can make as customer size

Specifications

Specifications

Model No. Exterior dimension Interior dimension Wire Guage Dimension of Grid Loading Capacity Finish Loaded in 1x 40' HQ Container
 LxWxH(mm)  LxWxH(mm) mm mm kg
NF-1        1200x800x1000 850 Φ5-Φ12 60*103 800 ZINC 480
NF-2        1200x1000x1450 1300 Φ5—Φ10 65*105 1000 ZINC 280
NF-3        1200x1000x1200 1050 Φ5—Φ10 65*105 800 ZINC 460
NF-4        1200x1000x1000 850 Φ5—Φ10 65*105 800 ZINC 480

 Main Features of cage pallet

1.Collapsible-save space when not in use,ideal for return journeys

2.Bright electro zinc plated finish

3.Standard half-hinged gate access

4.Long lasting,economical alternative to disposable packing

5.Open wire mesh design allows for full visibility for inventory  checks,ventilation and cleaness

6.Four-way entry for easy use with lift trucks

7.Application:widely used in agricultural,electronic equipment

Company Introduction
Dalian Huameilong Metal Products Co.Ltd , established in 1993,
one of the largest manufacturers of transportation security facilities,

material handling equipments and welded wire mesh products in North China.We have already past the ISO 9001:2000 and B&V international well-known certification.

Corporate Culture: Quality is enterpriseslife and motivation and should be guaranteed by whole workers

FAQ
1, What is the material being used for your products?---Mild steel Q235, Q195

2, How is the goods being packed?Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard forklift truck or pallet jack.

3, What is the payment terms I can get?---TT or L/C at sight, DP etc

4, What kind of finish do you provide for your goods?---Electro galvanized ,hot dip galanized, painting or powder coating is available.

5, What is the loading capacity?--- In general, we have light duty(100~300kg) model,medium duty(400~800kg) model and heavy duty(1000~1700kg) model available for your choice.

6 Which product can be used in cold storage?---Mobile rack,wire container and roll cage are all widely used in cold storage.

7 I like your design, but couldnt find the right model from the products list, is custom size available?---Yes, we do custom products and projects.

8 I would like to have my own design products and qty is not that big, is it ok?Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be different.

9 I don' have drawing or picture available for th custom products, could you design it for me?---Yes, we can make the best suitable design for you but do need to know the details - such as a) dimension b) loading capacity c)stackability d)operation environment e)

10 What is the minimum quantity I can order?

---1x20'GP - qty is variable depend on the size.

11 What is your average production lead time?---2-3 weeks against formal order and deposit.

12 Do I get any guarantee from your company?

---3~10 years warranty in case thatA) Proper handling during operation, correctly forklift handling while stacking/un-stackingB) Overloading is prohibitedC) Environment request indoor, dry and not humid circumstance, do not contact with any corrosive chemical material (for zn plated and powder coated proucts, no limitation for hot dip galvanized)

13 What happen in case any quality problem is identified after arrival?

---We take full responsibility for any manufacturing defect, would either refund or reship good products to you.
