Easy Storage Technologies Co.,Ltd(The Original Manufacturer & Developer)
China Manufacturer with main products: Mobile Video Recorder, Digital Video Recorder, Video Capture Card, DVR Card, Standalone DVR, Camera |

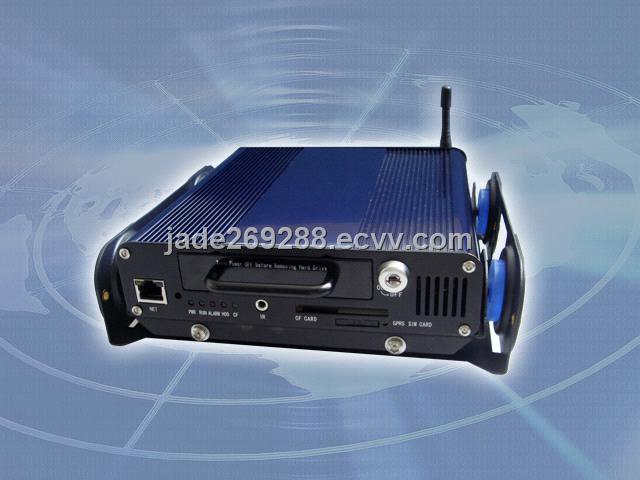

Original Manufacturer--mobile dvr with GPS & GPRS
| FOB Price: | 400.00 - 500.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000 Piece/Pieces per Week |
| Shipping: | 3 working days |
| Payment Terms: | L/C, T/T(Bank Transfer), Western Union |
Related products from verified members
| Place of Origin: | Guangdong in China |
|---|---|
| Packaging Details: | Export Standard |
Specifications
|
Key Features |
* Embedded digital video recorder for in-vehicle use
* Ultra compact case, extremely low weight, high temperature resistance and vibration resistant
most harsh environment for data safety.
most harsh environment for data safety.
* High quality MPEG2 compression, 4 levels of video quality, CIF (352x288) to full D1 (704x576)
Selectable
* Shock-resistant cradle, rugged design for maximum reliability
* Continuous record, alarm triggered recording
* IR remote controller or control panel
* Real time quad display and recording at 25fps (PAL) / 30fps (NTSC) per camera
* 2.5-inch removable hard drive and CF card recording
* Manages storage and recycles space automatically
* Remote access by LAN or Internet is supported by standard browser
* Vehicle status sensor displays and records time/date, vehicle speed, Route-ID,
left/right turn, brake, reverse, door open signals on video
* Motion detection supportable: 4 “Alarm Input” and 2 “Alarm Output” connections allow external
events to turn on recording or be turned on by motion detection
* Post recording of 0- 65535 seconds after ignition off
* Support wide range of voltage input (8V~32V)
* 12V, 1.5A power out connection for CCTV cameras
* Bookmark button for easy search and review of incidents
* Error-resistant file system design, compatible with FAT32 file system
* Embedded powerful central management software for controlling the system remotely
* GPRS function (quad bands) available for LIVE monitoring and GPS location info of each car
* Multi-layers password protection
* Highly efficient power management
* Self contained aluminum die-cast enclosure to protect from dust and moisture
* Optional accessories: GPS receiver, wired control panel, USB reader
|
Specifications |
|
Power In |
8V~32V,DC |
|
Power Out |
12V,DC,Max Current 1A |
|
Video Input |
4 channels/2 channels/1 channel,1.0Vp-p,75Ω,BNC |
|
Video Out |
1 channel,1.0Vp-p,75Ω,BNC |
|
Video Standard |
PAL/ NTSC |
|
Audio Input |
2 channels, Line In,50~400mv,50Hz~3500Hz |
|
Audio Out |
1 channel |
|
Compression |
MPEG2 |
|
Video Recording |
MAX Resolution:704*576,Frame Rate:25fps(PAL),30fps(NTSC) |
|
Storage |
1. Removable Hard Disk Drive(standard 2.5 inch for laptop)
2. CF Card |
|
Alarm Input |
4 Alarm Input |
|
Alarm Output |
2 Alarm Output |
|
Ethernet |
10/100M Base-T, RJ45 |
|
GPS |
NMEA 183 |
|
PTZ |
RS485 |
|
Language |
English / Chinese |
|
Product Size |
180*173*42 mm |
|
Weight |
2.80Kgs |
|
Power Consumption |
10W (15W when with Hard Drive) |
|
Working Condition |
Temperature:0℃~+50℃,Humidity:<90% |
