Ningbo Chengzhong Construction Machinery Co., Ltd.
China Manufacturer with main products: Concrete Vibrator, Plate Compactor, Concrete Mixer, Cut off Saw, Motor, Pressure Washer, Grinder, Power Trowel |
Home
>Products Catalog > concrete vibrator > OEM Service Precision CNC Machining Concrete Vibrator Flexible Shaft Needle Rod Poker Hose

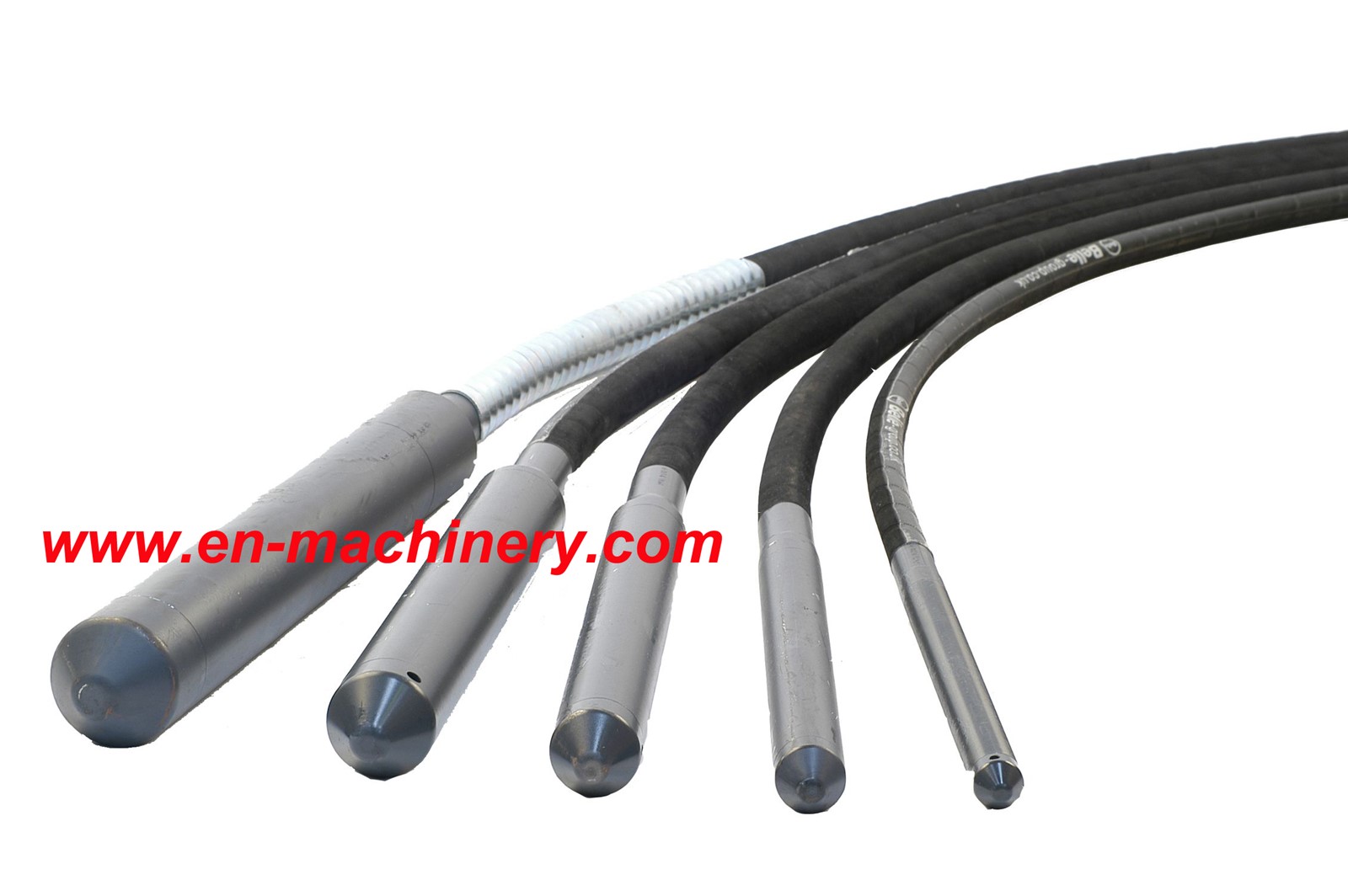

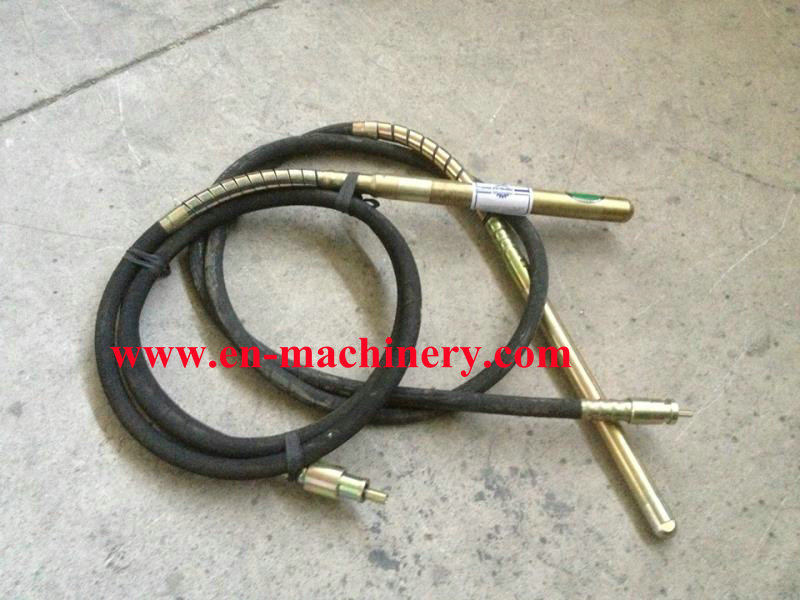

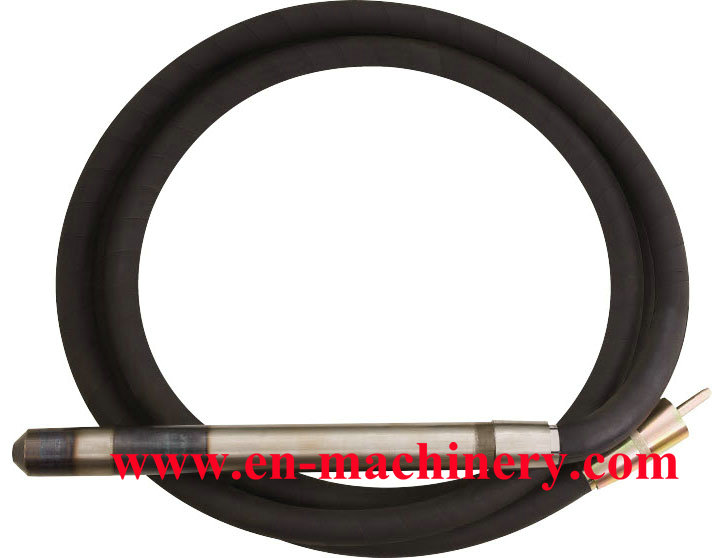

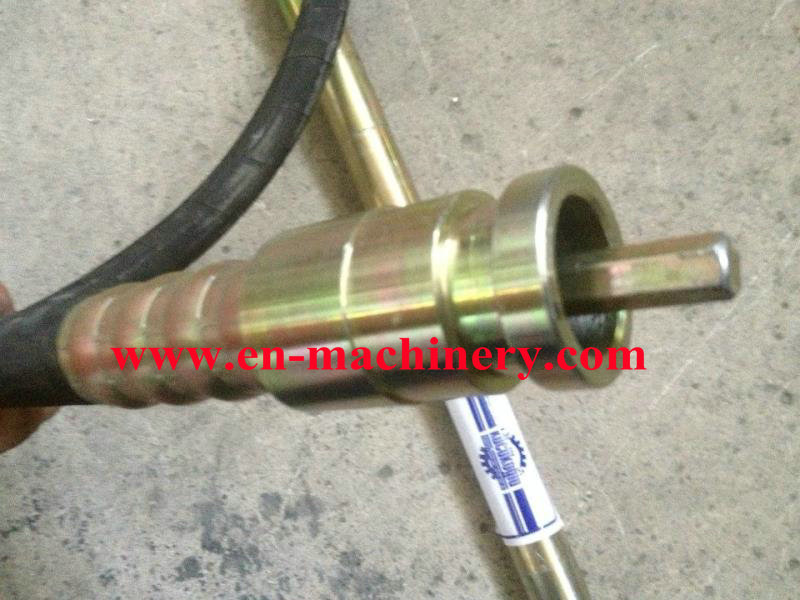

OEM Service Precision CNC Machining Concrete Vibrator Flexible Shaft Needle Rod Poker Hose
| Supply Ability: | 15,000 Piece(s) per Month |
|---|---|
| Shipping: | about 15 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | carton |
Quick Details
- After-sales Service Provided: No overseas service provided
- Drive Mode: Electric Vibrator
- Type: Internal
- Brand Name: chengzhong
- Condition: New
- Certification: CE
- Dimension(L*W*H): 72*65*4cm
- Weight: 12kgs
- Voltage: 110-220-380V
- Length of Flexible Shaft: 4-12M
- Vibrating Amplitude: 0.8-0.9-1.0-1.2
- Frequency: 195-200
- Model Number: ZN25
- Australia type vibrator: Malaysia type vibrator
- carton size:72*65*4cm: Length:4-12M
Specifications
We produce series of vibrator, 25mm, 28mm, 32mm, 35mm, 38mm, 45mm, 50mm, 51mm, 60mm, 70mm, 76mm driven by engine or electric motor, all coupling type.
OEM service precision CNC machining concrete vibrator flexible shaft
Concrete Vibrator Shaft
1Japanese, Dynapac, Chinese type are available;
2Gasoline, Diesel and electrica motor are available.
Concrete Vibrator Shaft
Functional Description:

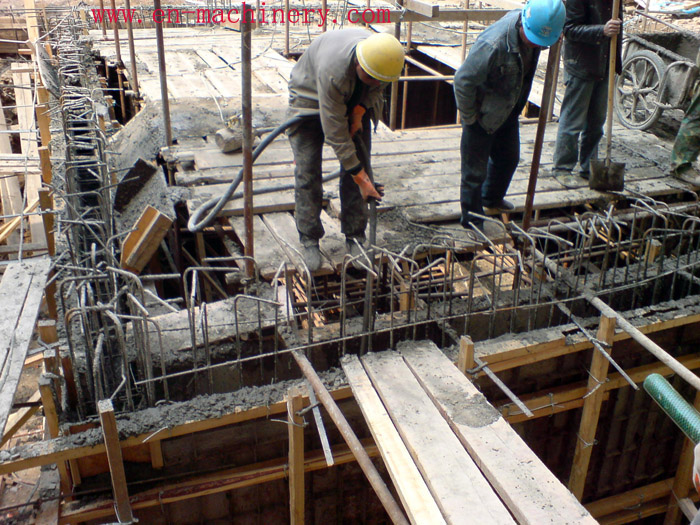

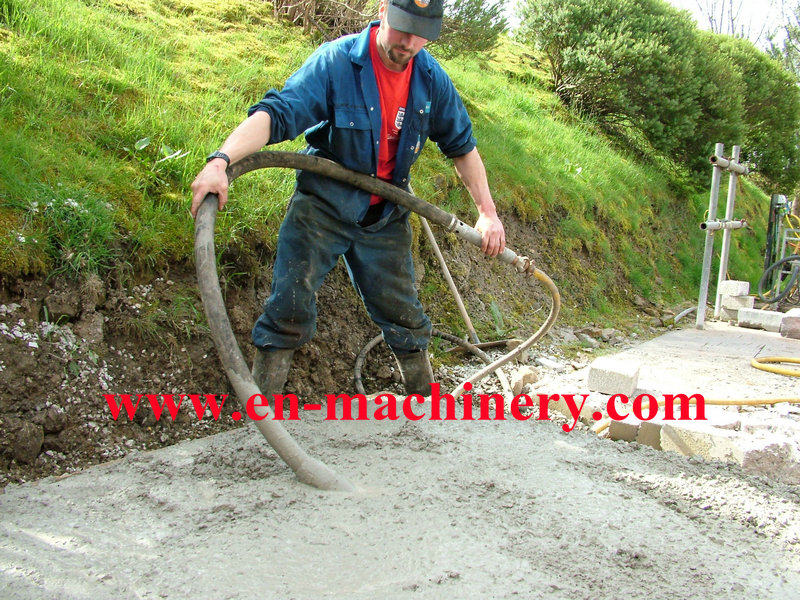

Apply to compact concrete, make it bind togeter tight and eliminat concrete phenomena such us honeycomb, further increase its strength to ensure the quality of concrete.
Main Features:
1. the tip of vibrator, which forged by high-quality 40 Cr-alloy steel with Salt bath furnace quench technology, mostly improving the mechanical capacity up to hardness of HRC52-58 degree;
2. Leeving: Use 45# carbon steel, handled by high-frenquency quenching and the hardness is up to HRC50~52 degree
3. Rolling element: handled by high-frenquency quench with high grade 40 Cr-alloy steel
4. Flexible pipe: Use high-quality native rubber and 65# Mn alloy spring steel and the thickness around 1.8MM.
Each concrete vibrator shaft are strictly tested by our engineer before sealed in the bag or packed in the carton box. so our quality can be guaranteed.
| Model | ZN25 | ZN35 | ZN38 | ZN50 | ZN70 |
| Vibrating Head Diameter(mm) | 25 | 35 | 38 | 50 | 70 |
| Vibrating Frequency(Hz) | 220 | 200 | 200 | 200 | 200 |
| Vibrating Amplitude(mm) | 0.7 | 0.9 | 1.0 | 1.0 | 1.2 |
| Motor Speed(r/min) | 4000 | 4000 | 4000 | 4000 | 4000 |
| Length(m) | 4-12 | 4-12 | 4-12 | 4-12 | 4-12 |
| Weight(kg) | 6 | 9 | 11.5 | 12.5 | 14 |
