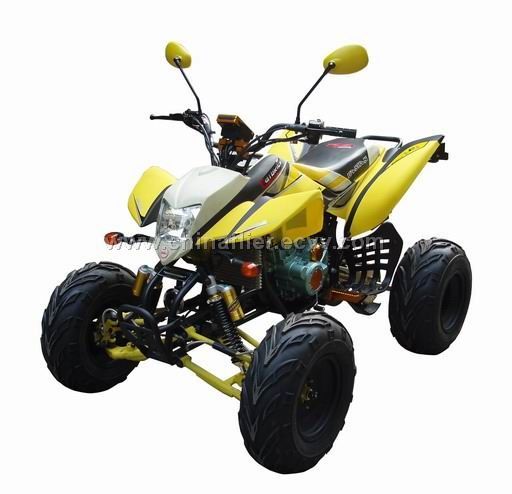

ATV - 200cc

Shipping: 10

Related products from verified members

Place of Origin: China
Packaging Details: Carton outside, hob inners

Specifications

1) Dimensions(LxWxH): 1800x1120x1130mm

2) Wheelbase: 1150mm

3) Engine type: 200cc, single cylinder, Water-Cooling, 4-stroke

4) Start mode: electric

5) Power: 9. 5kW/7, 500rpm

6) Max. Torque: 12. 1N. M/6, 500rpm

7) Max. Speed: ≥80km/h

8) Min. Ground clearance: 120mm

9) Dry weight: 167kg

10) Transmission mode: chain

11) Break type(F/R): disc/disc

12) Power source: 12V, 9A

13) Climbing degree: 20 degrees

14) Fuel tank capacity: 5. 5L

15) Front hanging: double arm-swing

16) Rear hanging: integral

17) Tires:

A)Front wheels: 21x7-10

B)Rear wheels: 20x10-10

18) Cylinder size: 63. 5 x 62. 2mm

19) Displacement: 197ml

20) Transmission:

4 gears with one reverse gear, manual clutch

21) Seat height: 850mm

22) Min. Turning radius: 2, 650mm

23) Parking trig: mechanical lock

24) Ignition mode: CDI

25) Load capacity: 150kg

26) Engine oil: 0. 9L

27) Gas cylinder number: 1

28) Max. Number of riders: 1

29) Lubrication: press splash

30) Compression proportion: 9. 2: 1

31) Product dimensions (L x W x H): 1, 680 x 1, 115 x 1, 120mm

Outer packing:

Carton dimensions: 1, 480 x 850 x 880mm

Conveyance:

Qty/20' GP: 20 units

Qty/40' GP: 44 units

Qty/40' HQ: 66 units
