Home >Products Catalog > Payment kiosk > Dual screen Kiosk:TD6 touchscreen self service kiosk for advertisement and payment

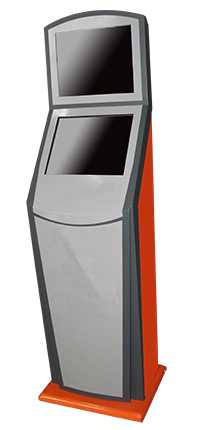

Dual screen Kiosk:TD6 touchscreen self service kiosk for advertisement and payment

FOB Price:	3,000.00 - 5,000.00 USD/Set
Supply Ability:	1,000 Set/Sets per Month
Shipping:	35 calendar
Payment Terms:	L/C, T/T, Western Union, MoneyGram, Other, Paypal

In Stock

Inquiry Now

Related products from verified members

PCI 3DES/DES Pin Pad for ATM & Kiosk

Price:

Min. Order:1 Piece
Parking Meter-Park Station for Payment with Sol...

Price:1.00 USD/Set

Min. Order:1 Set
21.5 inch floor standing touch screen kiosks, a...

Price:300.00-500.00 USD/Unit

Min. Order:1 Unit
Web Based Multiple Language Bank Wireless Ticke...

Price:780.00 USD/Set

Min. Order:1 Set
Interactive Kiosk

Price:1800.00-2400.00 USD/Set

Min. Order:1 Set
IP65 Sun-readable Outdoor Touchscreen Kiosk

Price:

Min. Order:
17 Inch Touch Screen Bank Note Receiver Self Se...

Price:1.00 USD/Unit

Min. Order:1 Unit

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Foam, Bubble, Crate, Plywood

Quick Details

Model Number: HD29
Brand Name: ZKTEK
Color: custom
Host PC: ZKTEK TN-X1225V3 CPU Intel XEON E3-1225V3.0, quad core 3.1GHz, 5GT/s FSB
LCD: LG L229H Type 22 inch TFT LCD
Touchscreen Monitor: ZKTEK C191 Touch technology 19 inch projective capacitive touch
Thermal Printer: ZKTEK JP80T Printer Type List Themal Printer with long duration thermal paper printing ability
Dye-sublimation Printer: MITSUBISHI CP9810DW-C Printer Type Dye Sublimation
Card Reader: CREATOR CRT310 Type Hibrid motorised automatic card reader:magnetic, smart IC card and RFID
Memory card reader: ZKTEK EX-5 Type of reader Hybrid memory card reader
Environment: 0-50C
Weight: tbd

Specifications

ZKTEK HD29 is a dualscreen kiosks with additional advertisement screen besides the regular touchscreen monitors.

MAIN FEATURES

Linux is a set of free Unix operating system, which is based on and similar to POSIX and UNIX.
Touchscren is well known high-tech electronics, A touchscreen is an electronic visual output that can detect the presence and location of a touch within the display area.
Rugged kiosk is used for the applications which needs high quality kiosks.

ZKTEK HD29 is a dualscreen kiosks with additional advertisement screen besides the regular touchscreen monitors.

With dual 19" screen, this kiosk can provide the avertisement display with the touchscreen function for service providers.

OEM and ODM is also welcome.

Applications:
- Billing Kiosk
- Marketing Kiosk
- Music Download Kiosk
- Multimedia Kiosk
- On-Line Banking Kiosk
- Order Entry Kiosk
- Bespoken Kiosk
- Prepaid Kiosk
- Redemption Kiosk
- Retail Kiosk
- Security Kiosk
- Self-Service Kiosk
- Ticketing Kiosk
- Tourism Kiosk
- Trade Show Kiosk
- Payment Kiosk
- Check In Kiosk
- Custom Kiosks
- Directory Wayfinder Kiosk
- Employee Self-Service Kiosk
- Gaming Kiosk
- Gift Registry Kiosk
- HR Kiosk
- Identification Verification Kiosk
- Information Kiosk
- Interactive Kiosk
- Internet Kiosk
- Internet Pay For Use Kiosk
- Kiosk OEM
- Kiosk ODM

Configurations

Dualscreen photo kiosk
Dualscreen kiosk

Dualscreen Dye-sublimation photo printing kiosk Specifications

Enclosure	ZKTEK AD	Type of enclosure	Dualscreen durable all-steel enlcosure
		Type of paint	Powder coated front, powder coated steel back covers
		Style	Ergonomically sleek and smart design
		-	Easy to install and operate with internal drawers
		Ventilation	Internal fans for ventilation
		Protection	Security mechanic locks
		Environment	Moistureproof,Antirust,Anti-acid,Static free
		Wheels	(optional)
Host PC	ZKTEK TN-X1225V3	CPU	Intel XEON E3-1225V3.0, quad core 3.1GHz, 5GT/s FSB
		Video core	Integrated Intel HD graphics graphic card support 1920*1080 full HD
		RAM	1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
		Storage	2* Serial ATA II, support 3Gb/s
		-	500G HDD(legacy 2.5″ hard driver)
LCD	LG L229H	Type	22 inch TFT LCD
		Brightness	300cd/m2
		Contrast	2000:1
		Max(native). resolution	1920x1080(HD)
		Response Time	6ms
		Dot pitch	0.197
		Interface	LVDS,VGA or DVI
Touchscreen Monitor	ZKTEK C191	Touch technology	19 inch projective capacitive touch
		Multi-touch points	1
		LCD display Resolution	1280x1024(LCD)
		Touch screen Resolution	4096x4096
		Durability	Scratch-free,More than 35,000,000 touches in one location without failure
		Thickness	6mm;
		Protection	Vandalism proof, antirust, anti-acid, anti-dust
		Surface Hardness	Mohs
		Touch force	<100g; Response Time:16ms; Agency Approval:CE, FCC
		Impact protection	Withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters
		Interface:	USB
		Power supply	(over USB)
		MTBF	>50000 hrs
		Light Transmission	90%～92%
Thermal Printer	ZKTEK JP80T	Printer Type	List Themal Printer with long duration thermal paper printing ability
		Paper width	80mm
		Paper roll diameter	120mm, retracted log paper: 120mm
		Paper thickness	60 to 120g/m2
		Print Speed	150mm/s
		Print resolution	203 dpi (8 dots/mm)
		Sensors	Automatic cutter only;out alarm/to be run out alarm,Jam
		Power supply	24VDC5A
		Interface	RS232 / USB / Ethernet
Dye-sublimation Printer	MITSUBISHI CP9810DW-C	Printer Type	Dye Sublimation
		Speed	8.0 S /15cm x 10cm ( 6?* 4?)
		Size	3.5'?' ~ 6'?'
		Quality	300.5 DPI( bi-line ), 256 bite, 16.7m color
		Capacity	600 sheets/roll, 15cm x 10cm ( 6?* 4?)
		Dimension	(WDH) 329mmx404mmx383mm
		Weight	21 KG (Ribbons and papers excluded)
		PowerSupply	AC 220-240 V 50/60 Hz
		Interface	USB2.0 (High Speed)
Card Reader	CREATOR CRT310	Type	Hibrid motorised automatic card reader:magnetic, smart IC card and RFID
		-	With shutter(optional)
		Magnetic card	ISO/IEC 7811 JIS X6301/6302 tr1&2&3 read
		IC card	ISO/IEC 7816 JIS X6303 read/write
		RFID(contactless) card	ISO 7816 read/write
		-	ISO/IEC 15693(NFC)
		Standards	EMV Ver.4.0 compliant for IC and magnetic card
		Interface	USB/RS-232
Memory card reader	ZKTEK EX-5	Type of reader	Hybrid memory card reader
		Support	CF/ CF II/ MD/ MS/ MS-PRO/ MS-DUO/
		-	MS-MG/ MS-PRO-MG/ MS-ROM/ SD/ RS-MMC/ Mini-SD
		-	MS-PRO-DUO/ T-Flash/ SM Cards/ MMC/ MMCII etc
		Read speed	480Mbps
		write speed	480Mbps
		OS System:	XP, WIN7, Linux2.6.X MacOS10.0
		Interface	USB2.0
Metal EPP	ZKTEK MKP2910	Type	3DES encrypted EPP
		-	Waterproof 16 keys stainless steel metal keypad
		Keys	laser print or chemical etch keys filled with color ink
		Super durability	over 2,000,000 times with 0.45mm knock gap
		Press strength	2N with temperature range -40℃~65℃
		Standards	Compatible with CE, RoHS, FCC
		Interface	RS-232 + USB or USB
Bill Acceptor	MEI SCL83	Bill validation width	62-85mm(W)
		Validation rate	98% or greater
		Validation speed	Approximately 3 seconds to stack
		Note insertion directions	Note Insertion - up to 46 notes
		Validation scan	scans 100% of both faces of each bill using six wavelengths
		Cassette	Up to 1200 street-grade notes(SCL83)
		Bezel Options	General
		Escrow	One note
		Language protocol	EBDS
		Operation temeprature	0-60 Cel
		Operation humidity	5%-95%
		Gross weight(with cashbox)	5.5KG
		Interface	RS232
		Power Supply	12V to 24V dc
Metal Keyboard	ZKTEK MKT2752	Type	64Keys stainless steel metal leyboard with trackball(IP65 NEMA 4X);
		Faceplate:	372*102mm
		Trackball Diameter	38mm
		Lettering	Sunk laser legends & characters in high quality ink
		Switch life	more than 2 million of operations
		Standards	Compatible with CE, RoHS, FCC
		Layout	Internet -English(EN04), customizable for all languages
		Interface	USB
Biometric	ZKTEK URU4500	Resolution	500dpi@8bit per pixel
		Speed	AuthenticationTime<1s
		Processor	400 MHz DSP;FingerPrint Area:14.2*0.4mm
		Enrollment Time	850 msec
		Interface	USB/RS232
OS	Microsoft Windows 7 Ult 32bit	Version	Windows 7 Ult
OS	Microsoft Windows 7 Ult 32bit	-	32bit
Power Supply	ZKTEK HF150	Power rate	150W
		Power output	24VDC5A
		Power input	100/240V AC @2A
Card Dispenser	CREATOR CRT531	Dispenser type	Friction dispense
		Card quantity	Approx 60~300 cards
		Material	Polyester Film Card;
		Thickness	0.2mm [min] ~ 2.0mm[max]
		Width	47.5 ~ 58.5 ?0.5mm; Length:76 ~ 98.5 ?0.5mm
		Card Dispensing Time	Approx. 1.5 seconds.
		Card Escrow	38pcs?pcs, card to be end: 7～50pcs?pcs
		Sensor	Card empty sensor
		Power	24VDC
		Interface	USB or RS232
Card Reader	ACS ACR122	Card frequency	13.56 MHz
		Card type	FeliCa and ISO 14443 standard A/B card
		-	MIFARE (Classics, DESFire)
		-	Compliant with ISO/IEC18092 (NFC)
		Speed	212 Kbps~ 242Kbps
		Max Range	100 mm
		Certificate	CE, FCC, RoHS Compliant
		Interface	USB2.0
Handset	ZKTEK HS1	Handset type	Vandalism-resistance handset with metal cable
Handset	ZKTEK HS1	-	With fork
UPS	SANTAK K1000PRO	Voltage range	170V~255VAC
		Power Rate	1000VA/600W
		Capacity	12VV/60WX1
		Transfergap	6ms;
		Overload power	1000W
		Self-protection	overload protection;Error led alert; RJ45/RJ11
		Interface	USB/RS-232
Camera	ZKTEK PHCOV5MP	Camera Type	CMOS
		Resolution	5MP active pixels
		Functions	Auto-focus
		Interface	USB2.0 High Speed(EHCI)
Audio	ZKTEK AUDIO5W	AUDIO	Stereo amplified speakers: dual channel 5W8Ohm
Package	ZKTEK Crate	Material	Plywood crate
		Wrapper	Film
		Foam	(only corners)
