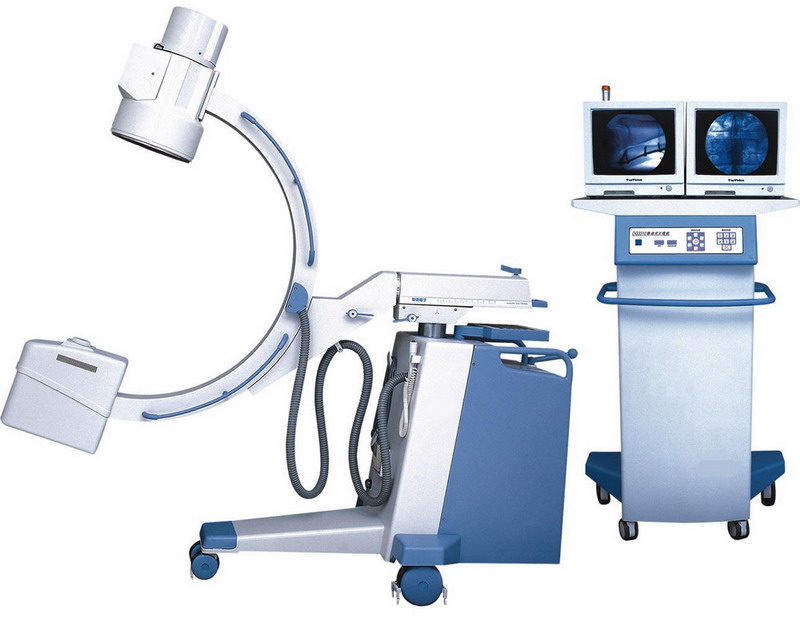

HF Mobile C arm X-ray Unit

Inquiry Now

Related products from verified members

Product Details

Place of Origin:	Jiangsu Nanjing in China

Specifications

Specifications HV Generator:110kV,3.5kW,40kHz Exposure mode:Fluoroscopy(Kv auto and manual)40-110kV 0.5-5mA Radiography40-110kV,30mA-60mA,1-250mAS X-ray tube: Fixed anode 0.6/1.5mm double focus Image Intensify:3 views (9",6",4.5")CCD360 rotation Image System 2* 14"monitors Recursive noise reduction end frme freeze 6/8 frame images storage Mechnical motion specifications Vertical travel 0~400mm Horizontal travel 0-200mmWag ?2.5 Revolution around horizontal axis: ?80 Movement along orbit: +90 degree to 25 degree Dimension Distance from Focus to Image intensify, 1000mmArc Depth: 630mm Means.(L譝譎) Mainframe 1800mm?00mm?850mmDisplay Shelf, 750mm?30mm?680mm Standard configaration Mainframe one setX-ray Generator one set 9"Image intensify one setHigh Resolution CCD camera one setMonitor two setsDigital Noise reductino system one set
