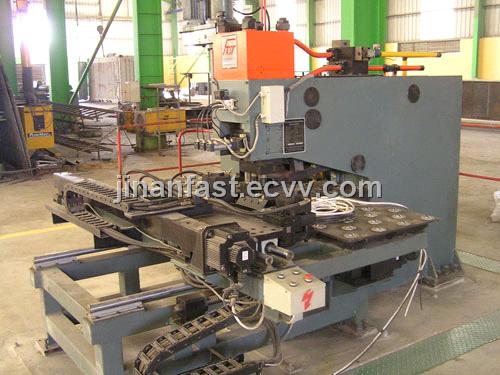

CNC Hydraulic Punching & Drilling Machine for Plate

FOB Price: 10.00 - 1000.00 USD/Set
Supply Ability: 10 Set/Sets per Month
Shipping: 60 days
Payment Terms: L/C, T/T(Bank Transfer)
In Stock

Related products from verified members

Place of Origin: Shandong in China
Packaging Details: Wooden case

Specifications

Jinan Fast CNC Machinery Co., Ltd. is a professional manufacturer and exporter of CNC machines in China for many years.

We have exported our cnc machines to Russia,India,Indonesia,Jordan and so on.

CNC Hydraulic & Drilling Machine CJ100/CJZ100 :
The movements in X and Y axes are controlled by servo motor and lead ball screw. The punching position is controlled by biaxial NC controlling system. The processing data can be input into the controlling system and disolyed on CRT screen.
Model: CJ100
1. Punching force(kN): 1000
2. Printing force(kN): 800
3. Thickness range of workpiece(mm): 6-25
4. Max. Workpiece dimension(mm): 1500*800
5. Number of station: 3
6. Max. Pinching diameter(mm): 31.5
7. Min. Margin distance from punching center(mm. Punching diameter 25.5): 25
8. Number of letter(mm): 14or 18
9. Size of letter(mm): 14*10
10. Working accuracy: GB2694-81
11. Overall dimension(mm. FR*LR*-H)3020*2522*1875

GB/T19001-2000 ---- ISO9001: 2000
Technical Charecteristics:
1. Integrated machine with machanical, electrical and hydraulic systems;
2. PLC control and servo-motor feed-in;
3. Self-diagnostic function;
4. Easy programming and connectable with data generated directly from copying the specimen.

Advantages:
1. Modular assembling for main functional parts, easy maintenance;
2. Punching, printing and drilling operations on one plate;
3. Efficient drilling operation by fast approach, slow working and fast return program;
4. On programming, either input punching diameter, location and quantity of workpiece, or network locally with design department to interchange data base;
5. Constant workpiece accuracy and good operating condition.

Welcome any inquiry for our products, and we can receive the order totally according to your requirements depending on our powerful technical strength.Thanks a lot.
