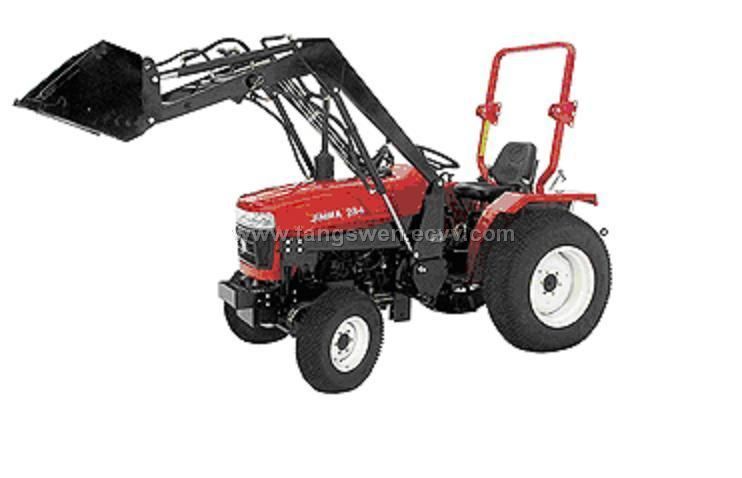

Front End Loader (JMZL20) SafeBuy Supplier Member

Place of Origin: Jiangsu in China

Specifications

Front End Loader

Below are the Specifications of Front End Loader:

* Recommended Tractor HP: 20-25

* Front End Loader Bucket size: 50"

* Bucket Capacity: 7.06 cubic feet

* Maximum lift height: 98"

* Clearance W/Bucket Dumped: 80"

* Reach at Maximum Height: 16"

* Maximum Dump Angle: 16 degrees

* Reach W/Bucket on Ground: 59"

* Bucket Rollback: 17 degree

* Digging Depth: 6"

* Overall Height in Carry Position: 61"

* Lift capacity to full height: 875 Lbs.

* Breakaway Capacity: 2200 Lbs (load at which entire system will collapse)

* Hydraulic Control Valve: Two Spool Selective Control Valve for Loader and Bucket Cylinders.

* Lift Bucket and Cylinders: Double Acting

* Bucket Control: Hydraulic Twin Cylinder

* Bucket Cylinder Size (Twin) 2" Bore X 23" Stroke

* Lift Cylinder Size: 2" Bore X 23" Stroke

* Approximate Weight (Less Mounts) 597 Lbs

* Raising Time: 6.5 Seconds

* Lower Time: 5.0 Seconds

* Bucket Dump Time: 5.0 Seconds

* Bucket Rollback Time: 4.0 SecondsActual time sequence may vary with engine RPM


We have more styles,  contact us to get more information.Or if you have special demands, please send your detailed drawing to us.
