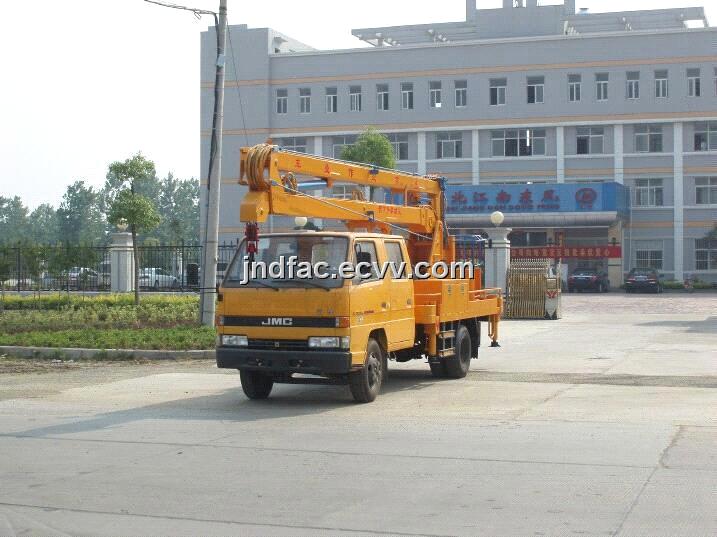

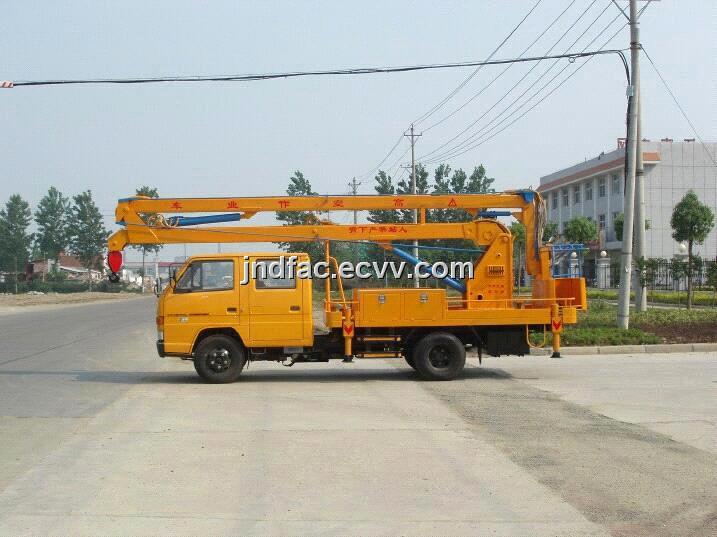

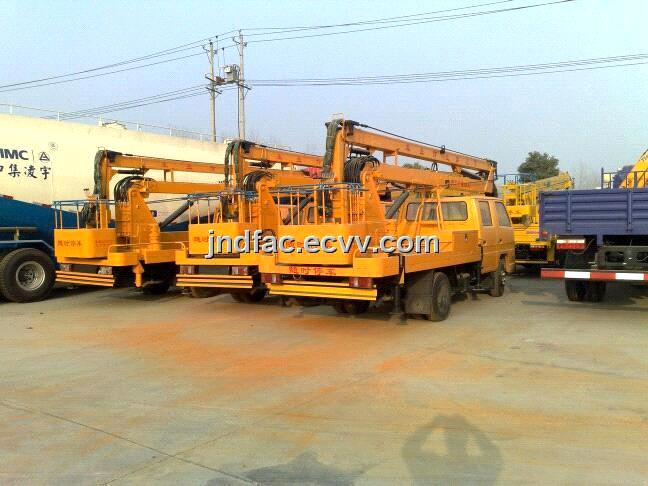

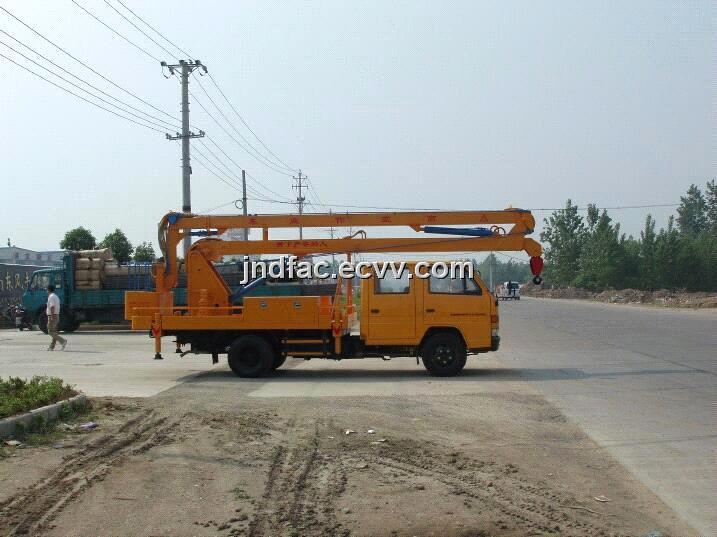

16M JMC Aerial Device Bucket Truck

FOB Price:	33,000.00 - 37,000.00 USD/Set
Supply Ability:	20,000 Set/Sets per Year
Shipping:	Bulk shipment or Roro shipment
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hubei in China
Packaging Details:	Naked ,Waxed

Specifications

Aerial Platform Working Truck is also called Overhead working truck.

16M JMC Aerial Device Bucket Truck

1. Max working height 16m
2. Bucket load 200kg
3. Articulated boom
4. Hook is optional, load capacity1 ton.
5. CCC aproved

Main features:

1. This aerial work platform is equipped on JMC Brand chassis, Right hand drive can make

2. Both the turntable and the bucket are equipped with electromagnetic proportional control device with good micromotion performance.

3. Interlocking function between boom and outrigger , which can prevent danger caused by wrong operation sequence.

Brand	Jiangte
Vehicle name	16M JMC Aerial Work Platform
Engine model	JX493ZLQ3 JX493ZLQ3A	Engine make	JMC
Engine displacement(ml)	2771 2771	Engine power(kw)	85 75
Overall dimension(LWH)(mm)	7600× 1950× 2995
G.. V. W. (Kg)	5800
Curb weight(kg)	5475	Payload weight(kg)
Approach/Departure angle	27/14	Front/Rear suspension	1015/1875
Wheelbase(mm)	3360	Axle load	2140/3285
Axle number	2	Leaf spring	7/5+5
Tire number	6	Tire size	7.00R16LT, 7.00-16LT
Front track	1385	Rear track	1425
Chassis model	JX1060TSG23
Upper load parameter
Max working height	16.2m
Max bucket floor height	14.5m
Max work radius	8.1m
Bucket load	200kg
Hook load	Optional , Hook load capacity 1Ton
Traffic warning light	Optional
Boom type	3 section of articulated boom, 360° rotation
Outriggers	4Pcs , H type
