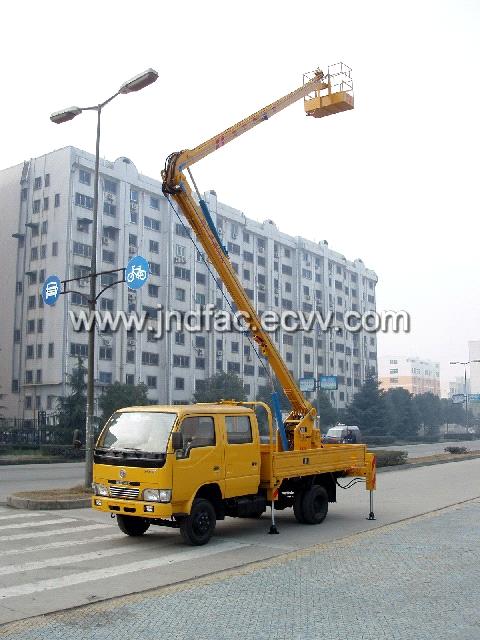

Dongfeng 10-12m Aerial Platform Truck

FOB Price:	15,000.00 - 30,000.00 USD/Set
Supply Ability:	5,300 Set/Sets per Year
Shipping:	12 workdays
Payment Terms:	L/C, T/T(Bank Transfer)

In Stock

Inquiry Now

Product Details

Place of Origin:	Hubei in China
Packaging Details:	WAXED

Specifications

----- engine

Model 4100QBZL

Power (kw):66

Displacement (ml):3707

Factory: KUIMING YUNNEI DRIVE STORE LIMITED COMPANY

------ chassis

Outline dimensions (mm):7400*1890*3100

wheelbase (mm):3300

Tire :6.50-16

Electrolic (V):24

Cab : The allmetal closed cab of forward control cab , adjustable in front and at the back of driver's seat, panoramic curved surface type windscreen

------ Special Function

The largest work height:10-12m

The largest work amplitude:5.5m

The bucket rated load:200kg

Rotating angle:360

Slewing speed:0~2r/min

Rate rise weight:1000kg

Max rise height:8m

Hydraulic aerial cage refitted from EQ1042N14DJ3Achassis,The completed truck appearance is esthetic, powerful, safety coefficient is high, have safe function of multiple advanced work, guarantee the attenbant's work's security, it is the municipal administration to manage

Production street sprinkler,tank truck,garbage truck,Sewage Dredging Truck,high pressure washer truck,chemical liquid truck,powder material truck (bulk cement truck ),crane with automobile,Hydraulic aerial cage,street wrecker,fire truck,refrigerated van,Kept temperature van,Van truck,sweep street truck,concrete mix truck,electric mobile machinery automobile,dump truck,semi-trailer truck and so on .

If you need please give me an E-mail ,thanks

Hydraulic aerial cage,aeral platform ,chinese aeral platform,chinese Hydraulic aerial cage
