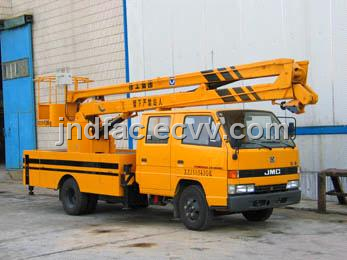

Aerial Working Truck (14m)

In Stock

Inquiry Now

Place of Origin:	Hubei in China
Packaging Details:	nuded,waxed,in bulk or roro ship

Specifications

Basic Information
Vehicle name	ISUZU Aerial working truck		Chassis:	JX1050DSL2
Outline size(L×W×H) (mm)	6500×1980×3000		Cargo inline size (L×W×H)(mm):	/
Rating mass(kg)	/		Empty mass(Kg):	4765
Full mass(kg)	5250		Emission standard	Euro 2
Engine Information
Model	JX493ZQ4A		Type	In-line four cylinder
Power/displacement(KW/ML)	62/2771		Manufacture	Guangxi Yuchai machinery joint stock company
Chassis Information
Wheelbase(mm):	3360		Axle load(kg) F/R	Front :3600/Rear :9000
Tire	7.00R16-10PRLT		Max speed (km/h):	90
Front overhang(mm)	1385		Rear overhang(mm)	1425
Front track(mm)	1015		Rear track(mm)	1775
Approach angel(°)	27		Departure angle(°)	12
Steering	Power steering		Brake	Spring brake
Cabin	The cab is all-metal close tipe and flat-end,the seat is djustable back and forward
Special function
Max working height(m)	14	Max working range(m)			5.5
Cage rating load(kg)	200	Turning angle(°)			360
Turning speed (r/min)	0-2	Rating lifting weight(kg)			1000
Max lifting height	5.3	Operate up and down(select)
