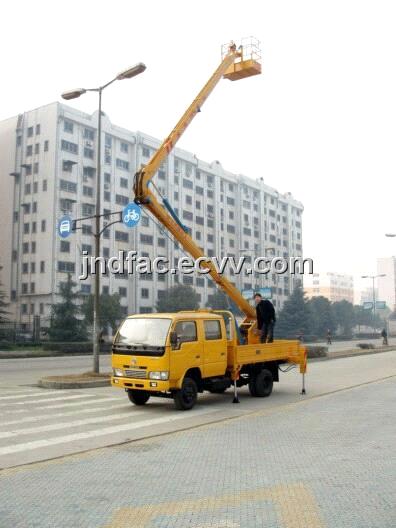

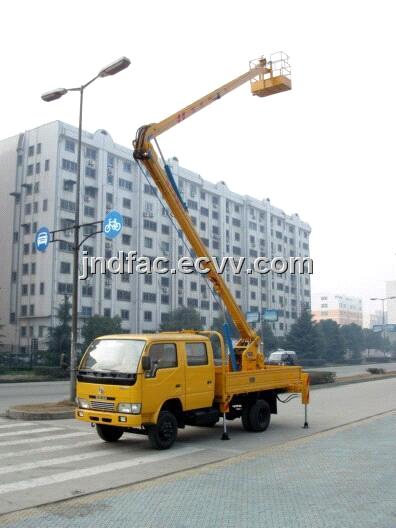

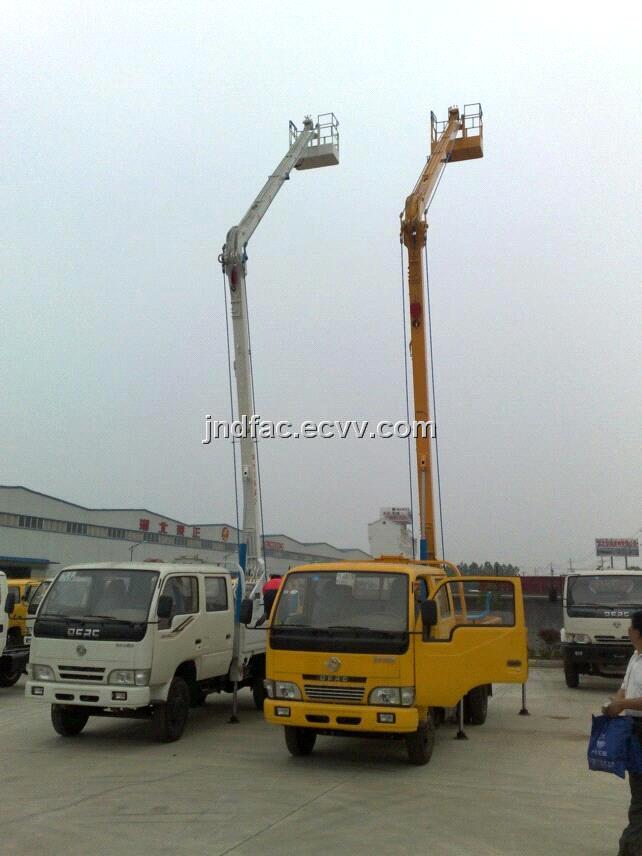

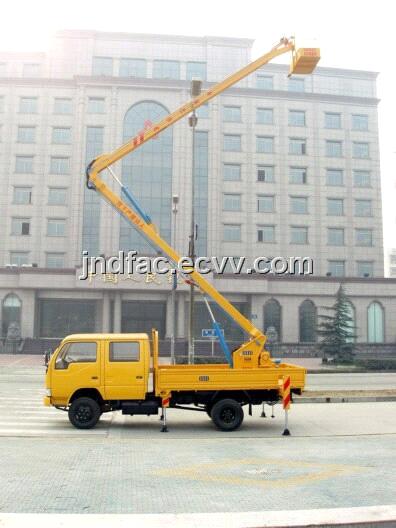

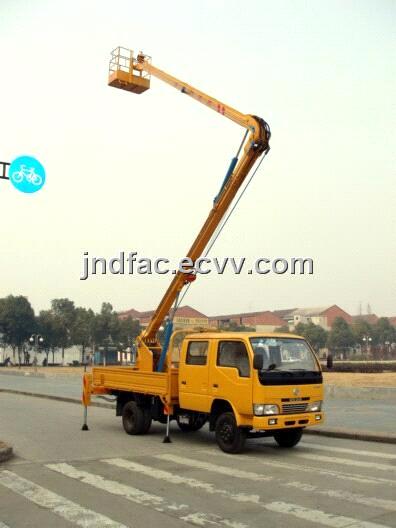

16M Dongfeng Truck Mounted Boom Lift

FOB Price:	28,000.00 - 34,000.00 USD/Set
Supply Ability:	300 Set/Sets per Month
Shipping:	Bulk shipment or roro shipment
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hubei in China
Packaging Details:	naked , waxed before shipment

Specifications

16M Dongfeng Truck Mounted Boom Lift
1.DongFeng Aerial Work Platform Truck
2.Hook optional, 360 rotate, load 1ton
3.12 months warranty
4. Bucket load 200kg

Professional Aerail platform manufacturer in China , Max working height from 12m to 24 m . a wide range to choose.

Feature —1 .interlocking function,safe and reliable

2.large outrigger span , good stability

3. the work platform can slewing ±90°, which is convenient for the aerial work

4.two-way electricm control of the gyration platform and platform,equipped with the gyration platfrom manual emergency operation.

Brand	Jiangte
Vehicle name	16M ISUZU Aerial Work Platform
Engine model	YN30CR YC4F90-30	Engine make	Yunnan Kunming Engine Yuchai Engine
Engine displacement(ml)	2977 2659	Engine power(kw)	76 66
Overall dimension(LWH)(mm)	7615×1990×2995
G..V.W.(Kg)	5495
Curb weight(kg)	5170	Payload weight(kg)
Approach/Departure angle	19/13	Front/Rear suspension	1032/1983
Wheelbase(mm)	3300	Axle load	2470/3025
Axle number	2	Leaf spring	8/9+5,6/8+4
Tire number	6	Tire size	7.00-16,6.50-16
Front track	1404	Rear track	1458
Chassis model	EQ1050NJ20D3
Upper load parameter
Max working height	16.2m
Max bucket floor height	14.5m
Max work radius	8.1m
Bucket load	200kg
Hook load	Optional , Hook load capacity 1Ton
Traffic warning light	Optional
Boom type	3 section of articulated boom,360°rotation
Outriggers	4Pcs , H type

Other product: Fire fighting truck , Aerial working platform truck , Road wrecker truck , Road sweeper truck , Garbage truck , Tractor , Semi-trailer truck, Bulk Cement truck ,Oil tank truck ,Chemical liquid truck, street sprinker .

If you are interested in our products , pls feel free to contact me
