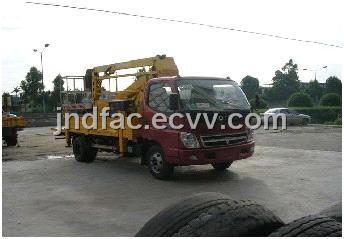

18M Foton Truck Mounted Aerial Platform

FOB Price:	38,000.00 - 43,000.00 USD/Set
Supply Ability:	500 Set/Sets per Month
Shipping:	waxed before shipment
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hubei in China
Packaging Details:	waxed before shipment

Specifications

18M Foton Truck Mounted Aerial Platform
Articulated boom,3 booms
Bucket load 200kg
Engine power 120hp
Single row cab

Truck Aerial Platform Feture:

Mounted on truck

Max working height 18m

We provide Isuzu , Nissan , DongFeng , JAC , Foton ,JMC aerial lift truck , from 14 meter to 24 meter , telescopica boom , articulated boom optional .

The vehicle specification:

Brand	Jiangte
Vehicle name	18M Foton Truck Mounted Platform
Engine model	CY4102-C3C	Engine make	Dongfeng Chaoyang Diesel Engine Co., Ltd.
Engine displacement(ml)	3856	Engine power(kw)	88kw/120hp
Overall dimension(LWH)(mm)	7126×2005×2930
G..V.W.(Kg)	5895
Curb weight(kg)	5500	Payload weight(kg)
Approach/Departure angle	22/14	Front/Rear suspension	1120/2206
Wheelbase(mm)	3800	Axle load	2035/3860
Axle number	2	Leaf spring	9/11+7
Tire number	6	Tire size	7.50-16,7.50R16,8.25-16,8.25R16
Front track	1685	Rear track	1600
Chassis model	BJ1069VCJEA-D
Upper load parameter
Max working height	18m
Max bucket floor height	16.3m
Max work radius	9m
Bucket load	200kg
Hook load	Optional , Hook load capacity 1Ton
Traffic warning light	Optional
Boom type	3 section of articulated boom,360°rotation
Outriggers	4Pcs , H type

Other product: Fire fighting truck , Aerial working platform truck , Road wrecker truck , Road sweeper truck , Garbage truck , Tractor , Semi-trailer truck, Bulk Cement truck ,Oil tank truck ,Chemical liquid truck, street sprinker .Duumper , Refrigerator van , Concrete mixer truck , Vacuum sewage Suctiong Truck.
