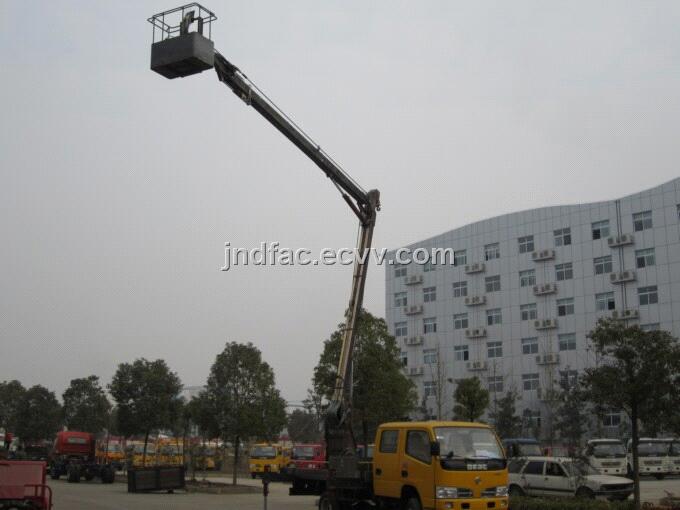

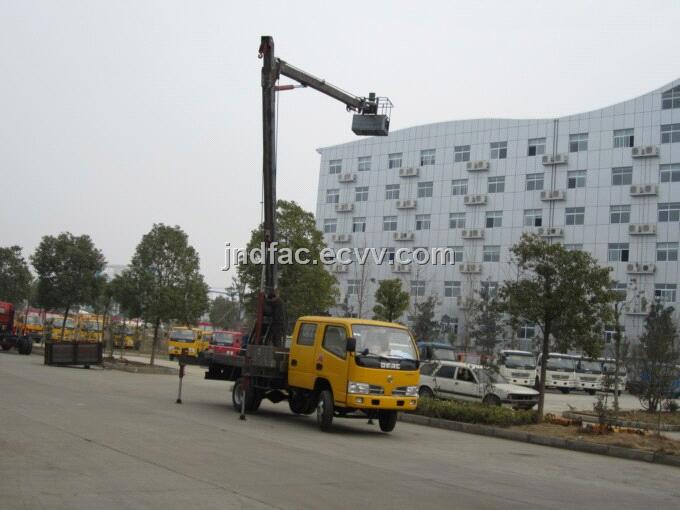

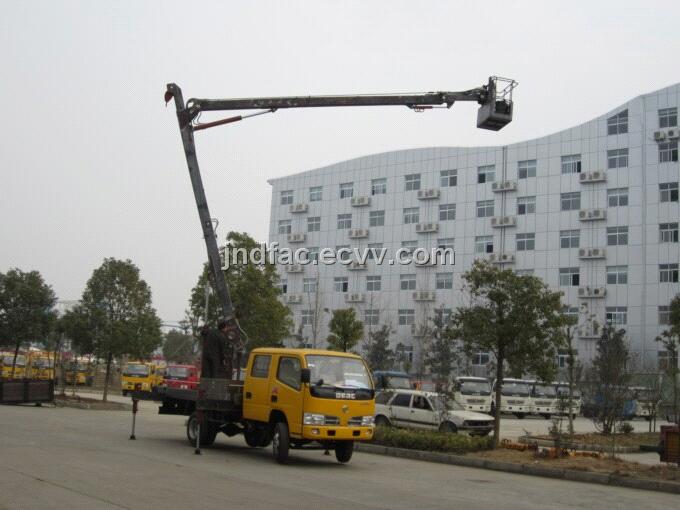

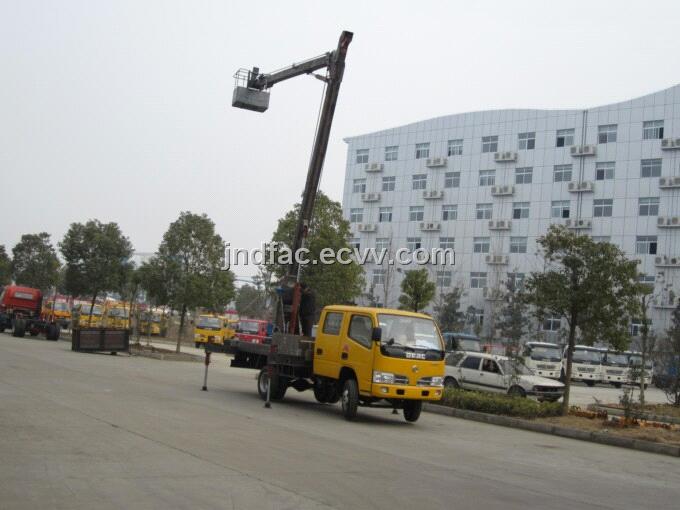

13.5m Articulated Boom Aerial Lift Truck
| FOB Price: | 20,000.00 - 23,000.00 USD/Set |
|---|---|
| Supply Ability: | 500 Set/Sets per Month |
| Shipping: | ro-ro shipment |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | naked |
Specifications
13.5m Articulated Boom Aerial Lift Truck
Crew cab 3+3 persons
working height 13.5meter
2/3 Articulated booms
Basket load 200kg
interlock function avoid dangerous when incorrect operation.
1. We provide Telescopic boom aerial lift truck , Articulated boom aerial lift truck , The lifting arms of some cherry pickers are capable of telescoping to adjust the reach of the device, usually with automatic safety controls to prevent tipping over. Articulated boom lifts are more appropriate than stick booms when operating in tight spaces or when clearing nearby obstacles is necessary.
2. Over years of aerial platform produce experience , All bucket truck products passed CCC & ISO, because we consider SAFE as the most important , we adopted high qualtiy hydraulic system .
3.We can provide DongFeng , Foton , JAC , JMC ., Isuzu , Nissan bucket truck.
The specification:
|
Brand
|
Jiangte
|
|
|
|
Vehicle name
|
13.5m Articulated Lift Platform Truck
|
|
|
|
Engine model
|
CY4102-C3F
|
Engine make
|
DongFeng Chaoyang
|
|
Engine displacement(ml)
|
3856
|
Engine power(kw)
|
70kw/95hp
|
|
Overall dimension(L*W*H)(mm)
|
6750×1950×2990
|
|
|
|
G..V.W.(Kg)
|
4325
|
|
|
|
Curb weight(kg)
|
4000
|
Payload weight(kg)
|
|
|
Approach/Departure angle
|
19/15
|
Front/Rear suspension
|
1032/2018
|
|
Wheelbase(mm)
|
3300
|
Axle load
|
1730/2595
|
|
Axle number
|
2
|
Leaf spring
|
8/9+5
|
|
Tire number
|
6
|
Tire size
|
7.00-16
|
|
Front track
|
1506
|
Rear track
|
1466
|
|
Chassis model
|
EQ1042NJ20D3
|
||
|
Upper load parameter
|
|||
|
Max working height
|
13.5m
|
||
|
Max bucket floor height
|
12.8m
|
||
|
Max work radius
|
5.5m
|
||
|
Bucket load
|
200kg
|
||
|
Hook load
|
Optional , Hook load capacity 1Ton
|
||
|
Traffic warning light
|
Optional
|
||
|
Boom type
|
3 section of telescopic boom,360°rotation
|
||
|
Outriggers
|
4Pcs , H type
|
||
Our factory products line:
Fire truck; Road wrecker/recovery tow truck/ Car carrier/; Aerial work platform ; Road sweeper; Garbage truck; Watering cart ; Oil/Fuel tanker truck; Truck mounted crane; Concrete mixer truck ; Bulk powder transport truck ; Dumper ; Sewage suction truck etc.
Fire truck; Road wrecker/recovery tow truck/ Car carrier/; Aerial work platform ; Road sweeper; Garbage truck; Watering cart ; Oil/Fuel tanker truck; Truck mounted crane; Concrete mixer truck ; Bulk powder transport truck ; Dumper ; Sewage suction truck etc.
For more information pls contact
