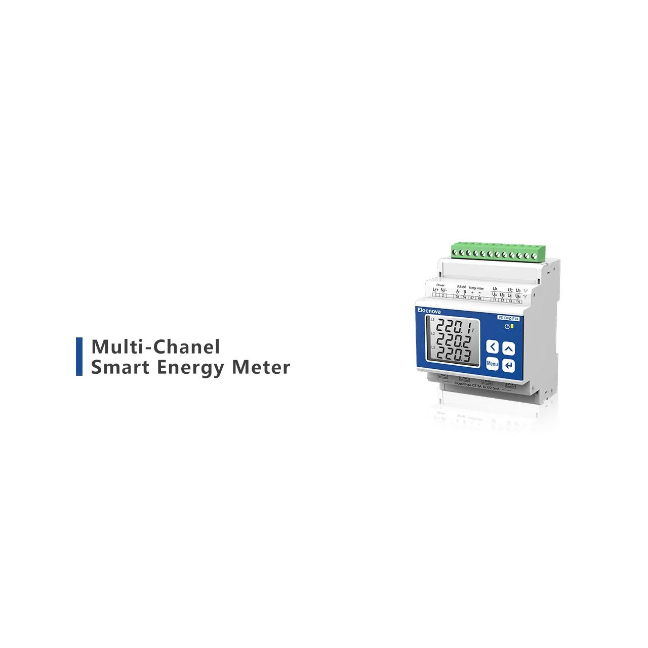

850/900/1800/1900 MHz Communication Energy Accuracy 0.5s 31st Harmonic Remote Power Monitoring Power Meter

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Brand Name: Elecnova
color: White
Theory: /
Resolution: /

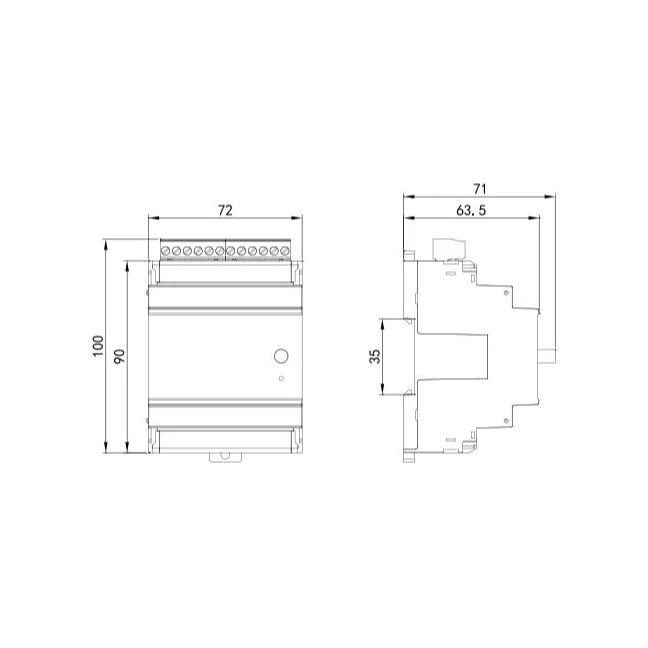

Size: 90*72*63.5mm
Model Number: PD194Z-E14C

Specifications

Basic Info.

Model NO.

PD194Z-E14C

Task

Adjust

Structure

Combination

Mathematical Model

Linear

Signal

Continuous

Function

Monitoring, Measurement

Certification

ISO: 9001, CE

Condition

New

Customized

Material

Stainless Steel

Accuracy Class

0.5s

Output Voltage

AC 250V/DC 30V

Measuring Energy Range

0-99999

Rated Voltage

AC 100V, AC 380V

Rated Current

Optional External CT

Communication

RS485, Lora

Display

LCD

Mounted Type

DIN Rail Mounted

Application

Multi Channel Power Meter

Frequency

50-60Hz

OEM

Avaliable

Specification

90*72*63.5mm

Trademark

ELECNOVA

Origin

China

Production Capacity

20000PCS/Per Month

Product Description

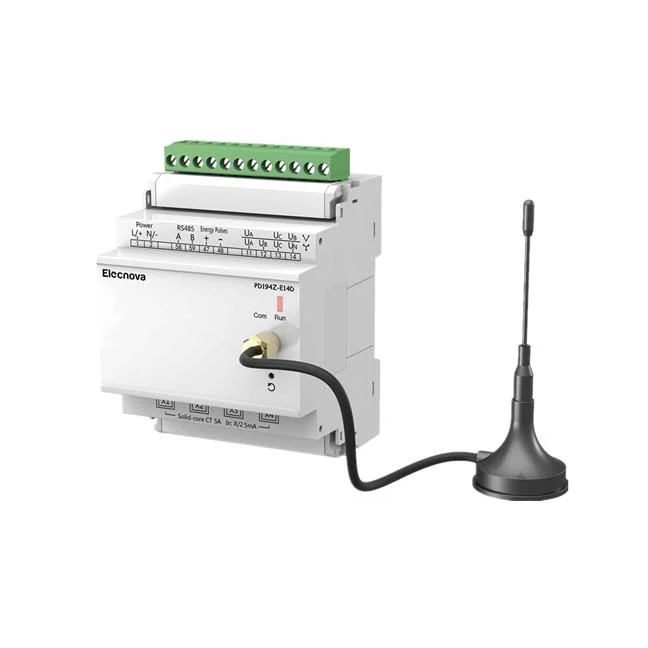

Product Name: 850/900/1800/1900 MHz communication energy management meter GPRS communication 31st harmonic remote power monitoring energy meter

this series of multi-function powermeters support all-parameter measurement, bi-directional energy metering, four-quadrant reactive metering and harmonic analysis. They can be connected to power monitoring system and energy management system to realize remote data monitoring.

Technical Specifications

Accuracy		Voltage,current:0.2%;power:0.5%,frequency:±0.01HZ;Active energy:0.5s
Data update rate		1s
Signal Input	Rated current	External CT
	Rated voltage	AC 3x220V/380V
	Overload	Continuous:2In,instantaneous:10In/5s Continuous:1.2Un,instantaneous:2Un/1min
	Energy consumption	≤0.1VA
	Fequency	45~65HZ
Communication Port	GPRS	850/900/1800/1900 MHz
Energy pulse		Optocoupler isolation,pulse width 80ms±20%
Digital Input		Optocoupler isolation,passive dry contact
Relay Output		Contact capacity AC250V 5A or DC 30V 5A
Auxiliary power supply	Working range	AC/DC 80~270V
Auxiliary power supply	Energy consumption	≤5VA
Environment condition	Working temperature	-10~55C
	Storage temperature	-25~70C
	Relative humidity	≤93%RH
	Altitude	≤2500m
Safety	Insulation	Signal power supply output terminal to case resistance ≥100MΩ
Safety	Withstand voltage	Power supply,input and output ≥2kv
Protection level		IP54

Typical Wiring
85090018001900 MHz Communication Energy Accuracy 05s 31st Harmonic Remote Power Monitoring Power Meter

Optional CT

Application
85090018001900 MHz Communication Energy Accuracy 05s 31st Harmonic Remote Power Monitoring Power Meter
