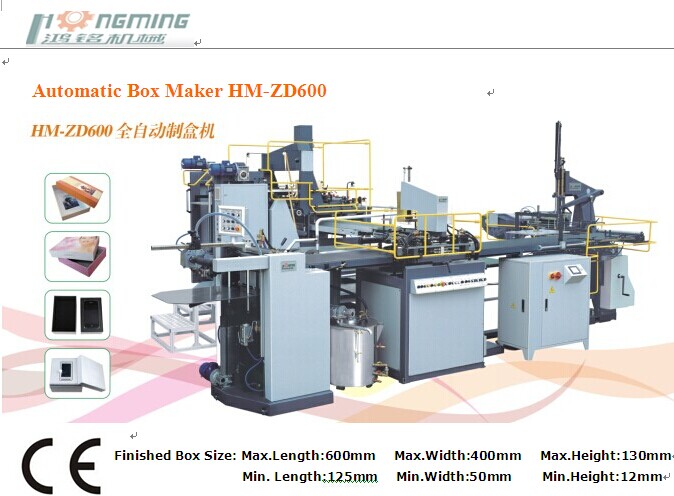

Automatic box maker HM-ZD600

Supply Ability:	12 Set/Sets per Month
Shipping:	40days after get down payment before production
Payment Terms:	L/C, T/T

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	wooden box sindyshuai (at) dghongming.com

Quick Details

Automatic Box Maker HM-ZD600

1.Suitable for all kinds of rigid boxes automatic production.

2. The whole computer parameters set,auto display error and stop the machine working.(Standard)

3. Automatic sending and suck in the coverpaper and cardboard.(Standard)

4. 24 hous control glue pre-heating.(Standard)

5.Four angle clinging and heating, single man-machine control system for the whole machine.(Standard)

6. Introduce Panasonic PLC and man-machine control system for the whole machine.(Standard)

7. Rectification and positioning system (positioning inaccuracy +-0.2mm). (Standard)

8. Box automatically leading and suction device. (standard)

9. Remodel for automatic production of different kinds of boxes.(Optional)

10. Automatic Control System for glue viscosity(America). (Optional)
Technical Parameters

Model		HM-ZD600
Paper Wrap Size (L=Length, W=Wide)	Widest (W)	610mm
	Narrowest(W)	95mm
	Longest (L)	850mm
	Shortest (L)	180mm
Box Size L=Length W=Wide H=Height T=Thichness	Longest(L)	600mm
	Shortest (L)	125mm
	Widest(W)	400mm
	Narrowest(W)	50mm
	Highest (H)	130mm
	Lowest (H)	12mm
	Thick (T)	3mm
	Thinnest(T)	1.0mm
Thickness of Paper(m^2/g)	Range	80g-160g/m²
Size of Folding Edge	Range	10mm-20mm
Speed		20-30pcs/min
Power		17KW
Net Weight		5800kg
Machine Overall Dimension		680045003300mm

Hongming Machinery specially manufacture rigid box machine/rigid box making machine/ rigid box maker/rigid box line/Automatic shoe box making machine
