Hubei Jiangnan Special Automobile Co., Ltd.
China Manufacturer with main products: Fire Truck, Aerial Platform Truck, Wrecker Truck, Garbage Truck, Sweeping Truck, Oil Truck, Water Truck, Vacuum Suction Truck |
16th

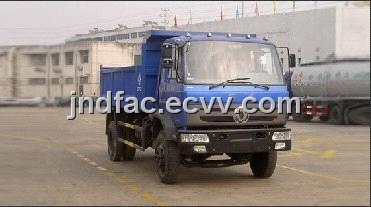

Single Axle Dump Truck
| FOB Price: | 20,000.00 - 120,000.00 USD/Set |
|---|---|
| Supply Ability: | 2,000 Set/Sets per Year |
| Shipping: | within 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | Southeast Asia, Africa, Mid East |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | according to customer's demand |
Specifications
| Technique parameter | |||
| Name | Dongfeng single axle dump truck | L×W×H mm | 6850,6950,6975,7000×2450×2850(mm) |
| Chassis Model | EQ3070GSZ3GJ | Cargo body Dimension(mm) | 4300,4500,4600,4750×2300×600,800(mm) |
| total mass | 7440(Kg) | Approach/Departure angle | 26/16,26/18(°) |
| Rated mass | 2995(Kg) | front/rear suspension | 1250/1650,1250/1750,1250/1525,(mm) |
| curb mass | 4250(Kg) | Max. speed | 85(km/h) |
| Engine | manufacturer | displacement(ml) | power(kw) |
|
YC4E140-31 YC4E160-31 YC4E140-33 YC4E160-33 YC6J160-33 |
Guangxi Yuchai Machinery Co., Ltd. |
4260 4260 4260 4260 6494 |
103 118 105 118 118 |
| Emission standards | GB3847-2005,GB17691-2005EuroⅢ | ||
| Axle | 2 | front tread | 1900,1940/1800,1860(mm) |
| wheelbase | 3950,4200 | rear tread | 1800,1860(mm) |
| tyre | 6 | tyre size | 8.25-20 |
| fuel type | diesel | spring | 9/11+8 |
| axle load | 2350/5090 | cab passenger | 3 |
| Note | |||
|
Special
performance |
Our company specializes in producing Dongfeng dump truck, Dongfeng Tianlong dump truck, Dongfeng 8*4 dump truck, SINO TRUK dump truck and Foton Auman dump truck etc. We can modify dump truck on the chassis customer brought.
Dump truck is also called tipping wagon or engineering truck, which consists of chassis, hydraulic lifting mechanism, and PTO device and cargo tank. It can be divided into light series, small tonnage series and medium tonnage series, and it is widely used in construction, municipal engineering, road construction, sanitation, mines, lime kilns, stones factory, cement, starch factory, brick factory, fire-resistant plants, coking plant, phosphate fertilizer plant, fertilizer plants, mineral processing plant, building teams, stations, coal field, bee coal field and port. The truck can save manpower and reduce labor intensity.
|
||
|
|
|||
