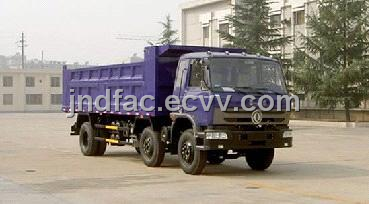

Dongfeng Three Axles Dump Truck

FOB Price:	20,000.00 - 120,000.00 USD/Set
Supply Ability:	2,000 Set/Sets per Year
Shipping:	within 30 days
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	Southeast Asia, Africa, Mid East
Place of Origin:	Hubei in China
Packaging Details:	according to customer's demand

Specifications

Technique parameter
Name	Dongfeng three axles dump truck	L× W× H mm	8570,8070× 2490× 2990(mm)
Chassis Model	EQ3250TSZ3GJ	Cargo body Dimension(mm)	6000,5500× 2300× 1050,1150(mm)
total mass	24140(Kg)	Approach/Departure angle	26/16,26/18(° )
Rated mass	11875,11995(Kg)	front/rear suspension	1205/1915,1205/1715(mm)
curb mass	12070,11950(Kg)	Max. speed	85(km/h)
Engine	manufacturer	displacement(ml)	power(kw)
ISDe210 30 YC6J220-33 YC6J220-31 B220 30 B190 33 B210 33 YC6A220-33 YC6J190-33	Dongfeng Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Co., Ltd.	6700 6494 6500 5900 5900 5900 7255 6494	155 162 162 162 140 155 162 140
Emission standards	GB3847-2005, GB17691-2005EuroⅢ
Axle	3	front tread	1940/1940/1860(mm)
wheelbase	1950+3500,1950+3200	rear tread	1860(mm)
tyre	8	tyre size	10.00-20,10.00R20,11.00-20,11.00R20
fuel type	diesel	spring	8/8/10+8
axle load	6400/6620/11120,6500/6660/10980	cab passenger	3
Note
Special performance	Our company specializes in producing Dongfeng dump truck, Dongfeng Tianlong dump truck, Dongfeng 8*4 dump truck, SINO TRUK dump truck and Foton Auman dump truck etc. We can modify dump truck on the chassis customer brought. Dump truck is also called tipping wagon or engineering truck, which consists of chassis, hydraulic lifting mechanism, and PTO device and cargo tank. It can be divided into light series, small tonnage series and medium tonnage series, and it is widely used in construction, municipal engineering, road construction, sanitation, mines, lime kilns, stones factory, cement, starch factory, brick factory, fire-resistant plants, coking plant, phosphate fertilizer plant, fertilizer plants, mineral processing plant, building teams, stations, coal field, bee coal field and port. The truck can save manpower and reduce labor intensity.
Contact with us to get more information and pictures, and we will serve you best!
