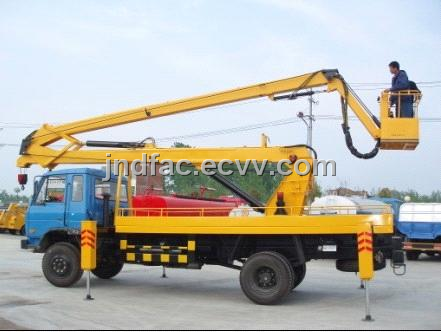

Dongfeng Aerial Platform Truck - 14M

FOB Price:	20,000.00 - 120,000.00 USD/Set
Supply Ability:	3,000 Set/Sets per Year
Shipping:	within 30 days
Payment Terms:	L/C, T/T(Bank Transfer), Western Union

In Stock

Inquiry Now

Place of Origin:	Hubei in China
Packaging Details:	according to customer's demand

Specifications

Technique parameter
Name	Dongfeng aerial platform truck	L× W× H mm	9420× 2470× 3750(mm)
Chassis Model	EQ1120GLJ	Cargo body Dimension(mm)	× × (mm)
total mass	11395(Kg)	Approach/Departure angle	34/13(° )
Rated mass	(Kg)	front/rear suspension	1250/3070(mm)
curb mass	11200(Kg)	Max. speed	90(km/h)
Engine	manufacturer	displacement(ml)	power(kw)
ISDe185 30 ISDe180 30 YC6J180-30 YC4E160-30 YC6J180-31 B190 30 EQD160-30 B170 30 YC6J180-33 B180 33 YC4E160-33	Dongfeng Cummins Guangxi Yuchai Dongfeng Auto	6700 4500 6500 4260 6500 5900 6234 5900 6494 5900 4260	136 132 132 118 132 140 118 125 132 132 118
Emission standards	GB3847-2005, GB17691-2005 EuroⅢ
Axle	2	front tread	1900,1940/1800,1860(mm)
Wheelbase	5100 mm	rear tread	1800,1860(mm)v
Tyre	6	tyre size	9.00-20,10.00-20
Fuel type	diesel	spring	8/10+8
Axle load	4490/6905 kg	cab passenger	3
Note
Special performance	Our trucks adopt DONGFENG , JMC, JAC, FOTONand other brand original chassis, with high-strength manganese steel coat as a major force structure. The dual function of interlocking , emergency engine off and restart function to ensure the operational safety . Uper, middle and lower operation are all convenient and flexible. With lifting carnes. And 14— 30meters working height for option.
