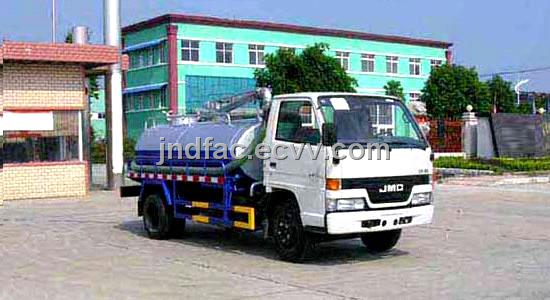

JMC Absorb-Feces Truck - 3500L

FOB Price:	20,000.00 - 120,000.00 USD/Set
Supply Ability:	4,000 Set/Sets per Year
Shipping:	within 30 days
Payment Terms:	L/C, T/T(Bank Transfer), Western Union

In Stock

Inquiry Now

Product Details

Place of Origin:	Hubei in China
Packaging Details:	according to customer's demand

Specifications

Technique parameter
Name	JMC absorb-feces truck	L×W×H mm	6020,6140×1900×2150(mm)
Chassis Model	JX1060TG23	Cargo body Dimension(mm)	××(mm)
total mass	5790(Kg)	Approach/Departure angle	27/17(°)
Rated mass	2680,2505(Kg)	front/rear suspension	1015/1645,1015/1765(mm)
curb mass	2980,3155(Kg)	Max. speed	100(km/h)
Engine	manufacturer	displacement(ml)	power(kw)
JX493ZLQ3 JX493ZLQ3A	JMC Motors Co., Ltd.	2771 2771	85 75
Emission standards	GB17691-2005EuroⅢGB3847-2005
Axle	2	front tread	1385/1425(mm)
wheelbase	3360	rear tread	1425(mm)
tyre	6	tyre size	7.00R16LT,7.00-16LT
fuel type	diesel	spring	7/5+5
axle load	1950/3840	cab passenger	2
Note	Tank capacity3.5m³ Tank dimension (length×long axle ×short axle)1552×912×3700
Special performance	Our company specializes in producing Dongfeng Xiaobawang absorb-feces truck, Dongfeng Duolika absorb-feces truck, Dongfeng 140 absorb-feces truck, Dongfeng 145 absorb-feces truck, Dongfeng 153 absorb-feces truck, and Jiefang 140 absorb-feces truck etc. We can modify absorb-feces truck on the chassis that customers brought. The truck mounts import anti-overflow device, which keeps dejecta and sewage from backing up into vacuum pump system. The tank is designed as a turtle style and will never become deformed. The vacuum pump is from Hangzhou Weilong ,which is top 1 in China. Absorb-feces pipe can rotates 360°. It has tow kinds of exhausting way: one is automatic and the other is pressure exhausting. There is ball float level controller and burglar alarm. It is easy to absorb, and has the advantages of high degree of vacuum and long suction, which can meet customer’s different demands. We can add sprinkling device on the truck according to customer’s requirement and the tank of feces and water are separated. It can be a dual-purpose vehicle.
Contact with us to get more information and pictures, and we will serve you best!
