Hubei Jiangnan Special Automobile Co., Ltd.
China Manufacturer with main products: Fire Truck, Aerial Platform Truck, Wrecker Truck, Garbage Truck, Sweeping Truck, Oil Truck, Water Truck, Vacuum Suction Truck |
16th

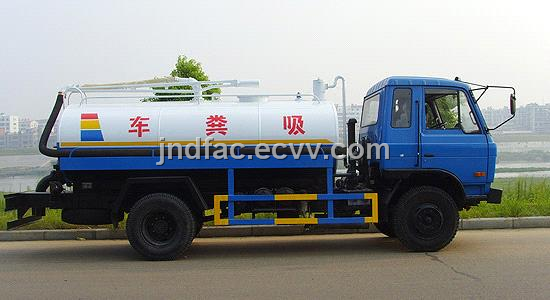

Dongfeng Flat Head Absorb-Feces Truck (7400L)
| FOB Price: | 20,000.00 - 120,000.00 USD/Set |
|---|---|
| Supply Ability: | 4,000 Set/Sets per Year |
| Shipping: | within 30 days |
| Payment Terms: | L/C, T/T(Bank Transfer), Western Union |
| Place of Origin: | Hubei in China |
|---|---|
| Packaging Details: | according to customer's demand |
Specifications
| Technique parameter | |||
| Name | Dongfeng flat head absorb-feces truck | L×W×H mm | 7300×2470×2850(mm) |
| Chassis Model | EQ1121GKJ | Cargo body Dimension(mm) | ××(mm) |
| total mass | 12450(Kg) | Approach/Departure angle | 30/28(°) |
| Rated mass | 6200(Kg) | front/rear suspension | 1250/2100(mm) |
| curb mass | 6055(Kg) | Max. speed | 85(km/h) |
| Engine | manufacturer | displacement(ml) | power(kw) |
|
YC6J160-31 ISDe160 30 YC6J160-33 YC4E160-33 B170 33 B190 33 |
Guangxi Yuchai Machinery Co., Ltd. Dongfeng Cummins Engine Co., Ltd. |
6500 4500 6500 4260 5900 5900 |
118 118 118 118 125 140 |
| Emission standards | GB3847-2005,GB17691-2005EuroⅢ | ||
| Axle | 2 | front tread | 1900/1800(mm) |
| wheelbase | 3950 | rear tread | 1800(mm) |
| tyre | 6 | tyre size | 9.00-20,9.00R20,10.00-20,10.00R20 |
| fuel type | diesel | spring | 8/10+8 |
| axle load | 4300/8150 | cab passenger | 3 |
| Note |
Tank capacity:7.4m³
Tank dimension (length×long axle ×short axle)(mm):4200/3800×2100×1350.
|
||
|
Special
performance |
Our company specializes in producing Dongfeng Xiaobawang absorb-feces truck, Dongfeng Duolika absorb-feces truck, Dongfeng 140 absorb-feces truck, Dongfeng 145 absorb-feces truck, Dongfeng 153 absorb-feces truck, and Jiefang 140 absorb-feces truck etc. We can modify absorb-feces truck on the chassis that customers brought.
The truck mounts import anti-overflow device, which keeps dejecta and sewage from backing up into vacuum pump system. The tank is designed as a turtle style and will never become deformed. The vacuum pump is from Hangzhou Weilong ,which is top 1 in China. Absorb-feces pipe can rotates 360°. It has tow kinds of exhausting way: one is automatic and the other is pressure exhausting. There is ball float level controller and burglar alarm.
It is easy to absorb, and has the advantages of high degree of vacuum and long suction, which can meet customer’s different demands. We can add sprinkling device on the truck according to customer’s requirement and the tank of feces and water are separated. It can be a dual-purpose vehicle.
|
||
|
|
|||
|
Contact with us to get more information and pictures, and we will serve you best!
|
|||
