Hubei Jiangnan Special Automobile Co., Ltd.
China Manufacturer with main products: Fire Truck, Aerial Platform Truck, Wrecker Truck, Garbage Truck, Sweeping Truck, Oil Truck, Water Truck, Vacuum Suction Truck |
16th

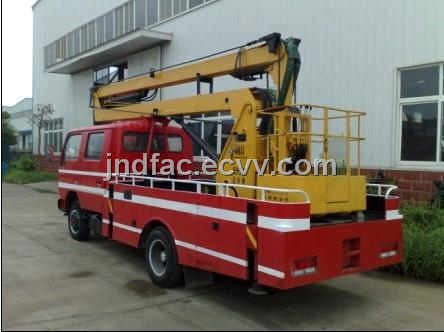

Dongfeng Jinba Aerial Platform Truck - 14m
| FOB Price: | 20,000.00 - 120,000.00 USD/Set |
|---|---|
| Supply Ability: | 2,000 Set/Sets per Year |
| Shipping: | within 30 days |
| Payment Terms: | L/C, T/T(Bank Transfer), Western Union |
| Place of Origin: | Hubei in China |
|---|---|
| Packaging Details: | according to customer's demand |
Specifications
|
Technique parameter
|
|||
|
Product Name
|
Dongfeng Jinba aerial platform truck
|
L× W× H mm
|
7400× 1980× 3110(mm)
|
|
Chassis Model
|
EQ1042NJ20D3
|
Cargo body Dimension(mm)
|
× × (mm)
|
|
total mass
|
4325(Kg)
|
Approach/Departure angle
|
19/11(° )
|
|
Rated mass
|
(Kg)
|
front/rear suspension
|
1032/1968(mm)
|
|
curb mass
|
4000(Kg)
|
Max. speed
|
90(km/h)
|
|
Engine
|
manufacturer
|
displacement(ml)
|
power(kw)
|
|
YC4F90-30
CY4102-C3F YN27CR YN30CR SD4BW70-3R 4D22E YCND27-90-30 YCND27-100-30 CY4100-E3F 4JB1TI |
Guangxi Yuchai Dongfeng Chaoyang Chengdu Yunnei Anhui Yuchai Jiangsu Sida
|
2659
3856 2672 2977 2545 2156 2659 2659 3707 2771 |
66
70 66 76 70 65 66 75 73 75 |
|
Emission standards
|
GB3847-2005, GB17691-2005 EuroⅢ
|
||
|
Axle
|
2
|
front tread
|
1900/1800(mm)
|
|
wheelbase
|
3300 mm
|
rear tread
|
1800(mm) v
|
|
tyre
|
6
|
tyre size
|
9.00-20
|
|
fuel type
|
diesel
|
spring
|
8/11+8
|
|
axle load
|
2100/2225 kg
|
cab passenger
|
3
|
|
Note
|
The front protraction of the davit arm is 1100 mm.
The load capacity of working deck: 200 kg
The working height: 14 m
|
||
|
Special
performance
|
Our trucks adopt DONGFENG , JMC, JAC, FOTONand other brand original chassis, with high-strength manganese steel coat as a major force structure. The dual function of interlocking , emergency engine off and restart function to ensure the operational safety . Uper, middle and lower operation are all convenient and flexible. With lifting carnes. And 14— 30meters working height for option.
|
||
|
|
|
||
|
|
|||
