Huayin Technology Co., Ltd.
China Manufacturer with main products: Self-Service Touch Kiosk, Multi-Functional Touch Kiosk, Digital Signage, Outdoor Advertisement Kiosk, Multi-Points Touch Kiosk, Touch Pos... |
15th

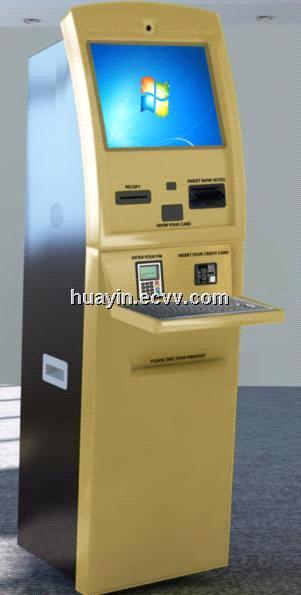

Multi-Payment Touch Kiosk
| FOB Price: | 500.00 - 1,000.00 USD/Set |
|---|---|
| Supply Ability: | 1,000 Set/Sets per Month |
| Shipping: | Shenzhen |
| Payment Terms: | L/C, T/T, Western Union, Other, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | plywood package |
Quick Details
- Model Number: HY-FB007
- Brand Name: HY
Specifications
SPECIFICATIONS
1.metal keyboard kiosk
2.ISO9001
3.CE & FCC
4.cold rolled steel
5.water-proof,anti-dust
Payment metal keyboard kiosk is developed specifically for Payment use in Bank, Hospital, Railway Station, Metro Station, Parking Lot, Theatre, Shopping Mall, etc.
Self payment metal keyboard kiosk is manufactured in Cold-Roll Steel Sheets using steel plate of 1,5mm to 2.5mm which ensures the stability and rigidity of all structure.
Payment machines are including touch screen self payment kiosk, touch screen bill payment kiosk, self service payment kiosk, payment terminal atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk , pinpad payment kiosk,metal keyboard kiosk,etc.
Standard hardware components List of LKS self payment metal keyboard kiosk is as following:
|
Components |
Details |
|
|
PC system |
Industrial Board |
Seavo/ Gigabyte/Advantech AIMB 562 |
|
CPU |
Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7 |
|
|
RAM |
2GB /4 GB / 8GB |
|
|
HDD |
500G |
|
|
Interface |
6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card |
|
|
PC Power Supply |
HUNTKEY/Great Wall |
|
|
LCD monitor |
Screen Size |
17 inch/19inch ( optional from 8inch to 65inch) |
|
Brightness |
250cd/m2 |
|
|
angle |
horizontal 100°above;Vertical 80°above |
|
|
Contrast |
1000:1 |
|
|
Backlight tube life |
more than 40,000hours |
|
|
Max. resolution |
1280×1024 |
|
|
Touch screen |
Screen Size |
17/19 inch Diagonal ( optional from 8inch to 65inch) |
|
Resolution |
4096x4096 |
|
|
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times |
||
|
Bank/Credit Card Reader |
Interface |
RS232 |
|
Card Type |
Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card |
|
|
Power Voltage |
DC 24V±5% |
|
|
Card Entry method |
Magnetic signal, Optoelectronic signal and rear card signal |
|
|
Encrypted Pinpad |
Keylift~span |
2,000,000 cycles |
|
Key force |
2~3N |
|
|
Key trip |
>2.5mm |
|
|
Protection level |
ip65 |
|
|
Cashcode Bill acceptor |
Validation Rate |
96% or higher |
|
Banknote Insertion |
Four-way |
|
|
Escrow |
One banknote |
|
|
Capacity |
1000 notes Max |
|
|
Coin Acceptor |
Coin Acceptance |
Max 32 coin types, in 2*16 or 1*32 channels |
|
Detection ability of counterfeit Coins |
with high detection ability of counterfeit coins |
|
|
Accepting Speed |
2 Coins/Sec |
|
|
Supply Voltage |
10V-16V DC |
|
|
Epson receipt thermal printer |
Autocutter |
included |
|
Technology |
Thermal printing |
|
|
Paper width |
80mm |
|
|
Printing speed |
150mm/s |
|
|
Data buffer |
4KB |
|
|
Interface |
RS232 ,USB |
|
|
UPS |
Input voltage |
145-290va |
|
Output voltage |
200-255va |
|
|
Max time for supplying a single PC |
3~20minutes (for single PC) |
|
|
Digital Power Supply |
AC input voltage range |
100~240VAC |
|
Frequency |
50Hz to 60Hz |
|
|
AC input voltage range |
100~240VAC |
|
|
Frequency |
50Hz to 60Hz |
|
|
Accessories |
Wire-lan port, USB ports, speakers, fans, cables, screws, etc. |
|
|
Operation System |
Windows 7 or Windows XP operation system without license |
|
|
KIOSK Cabinet |
Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. |
|
|
Packing |
Security Packing method with bubble foam and wooden case |
|
Other Optional hardware components List of payment metal keyboard kiosk is as following:
- Cash dispenser
- Coin dispenser
- Advertising screen
- Barcode scanner
- Passport reader
- Web camera
- A4 Laser printer
