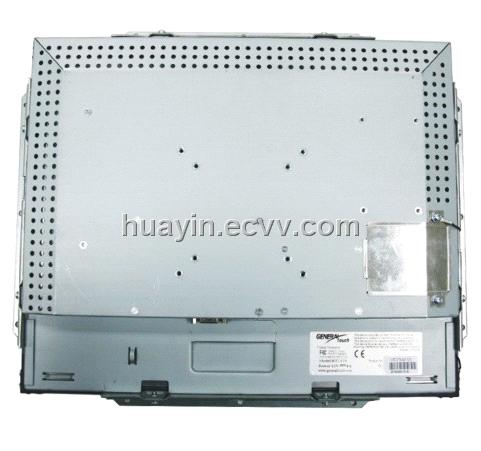

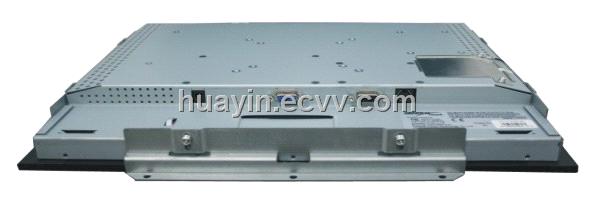

Open-Frame Touch Monitor SafeBuy Supplier Member

FOB Price: 200.00 - 300.00 USD/Piece
Supply Ability: 10,000 Piece/Pieces per Month
Shipping: Shenzhen
Payment Terms: L/C, T/T, Paypal, Western Union, MoneyGram
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: industrial carton

Specifications

Open-frame LCD monitors are designed for easy integration into kiosks, gaming and amusement products where compact displays are required. All aspects of the design from the mechanical parts to future upgrading of the LCD panels can be controlled so as not to change the overall form, fit and function which in turn means no external changes for our customers.

The OTL173 features pending IP6X glue seal at bezel edge to protect against dirt, dust, spill & liquids.
When design space is limited, the OTL173’ s slim profile and optional mounting solutions make it the ideal choice.


Features:
Slim profile with unique narrow borders Long lasting product cycle: Mechanical parts controlled in house by GeneralTouch so that future upgrades do not bring external size changes.
Multiple mounting options including Open-frame and VESA mounting
Supplied with GeneralTouch’ s unique SAW touch screens
Fast Touch response time
Supplied with Serial or USB touch interface
Multilingual and detachable On Screen Display (OSD)

Model
OTL173
Description
17" TFT Open Frame Touch Monitor (15", 19" for option)
Case/Bezel Color
Black
Display Type
4:3 Ratio 17" Active Matrix TFT LCD
Touch Technology
Surface Acoustic Wave (SAW)
Mounting Options
Rear Mount, VESA 75mm and 100mm, included
Monitor Dimesions
406x383x49(mm)
Active Display Area
338mm x 270mm
Optimal (Native) Resolution
1280x1024 @ 60Hz
Sychronization Range
30-80kHz horizontal, 55-75Hz vertical
Pixel Pitch
0.264x0.264mm
Plug & Play
VESA DDC 1/2B
On-Screen Display (OSD)
Remote OSD with 1.2mCable
Temperature Range
Operating: 0° C to 40° C, Storage: -20° C to 60° C
Relative Humidity
Operating: 20%-80%, Storage: 10%-90%
Power Supply
External: power brick
Input Voltage
AC: 85-265V, 47-63Hz
Input connector
DC: Power Jack 2.5mm pin diameter
Power Consumption
50W Max
Weight(approximately)
5.6kg/10kg
Shipping Carton Dimensions
550 x 455 x 190(mm)
Touchscreen Interface
Dual Serial/USB
Agency Approvals
FCC, CE, RoHS, CCC
Warranty
3 years *
Colors
16.7million
Brightness
250 cd/m2 (LCD Panel)
Viewing Angle
160° (80° /80° )
(from center, CR> =10)
160° (80° /80° )
Contrast Ratio
500:1
Pixel Response Time
8ms
Backlight Lamp Life
50,000
Input Video Format
Analog (VGA)/optional DVI
Touch Response Time
10.4ms/10ms
