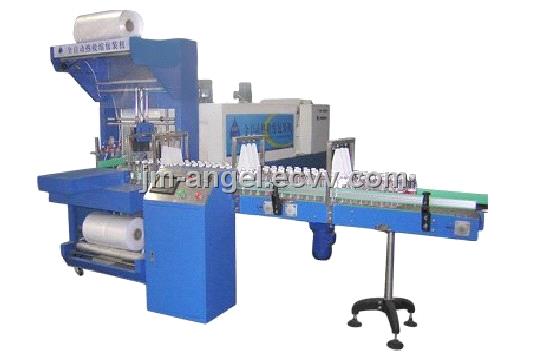

Full-Automatic Packing Machine

Inquiry Now

Semi auto toilet rolls packing machine

Price:9,600.00-15,000.00 USD/Set

Min. Order:1 Set
Fully Automatic Wet Tissue Packing Machine (VPD...

Price:1.00-100000.00 USD/Set

Min. Order:1 Set
Medicine Powder Bottle Packing Machine

Price:18,800.00-20,000.00 USD/Set

Min. Order:1 Set
China Coal Group FQS4525C Continuous Seal-Cut-S...

Price:1.00-10,000.00 USD/Set

Min. Order:1 Set

Place of Origin:	Guangdong in China
Packaging Details:	wooden case

Specifications

1. The technical parameters:

● Device Model: JMB-250A type

● packing maximum size: L600 × W400 × H350mm

● shrink film material: PE, PVC, POF

● shrink film thickness :0.03-0 . 15 mm

● thermal furnace maximum temperature: 160 - 260 ° arbitrary regulation.

● the maximum yield per minute :6-12 package

● equipment power: 18Kw

● The actual power: 15Kw / h

● Power Requirements: 380/220V

● Weight: 1.2T

● Fan: 0.75Kw 2 units 380V, 65W 4 sets 220V

2. The product description:

● Frequency Control, two-grade conveying bottle device.

● pushing the bottle, the heat sealing and cutting entire operation adopts pneumatic mechanism.

● sensor switch control film length.

● touch screen, PLC control system has greatly increased the reliability of equipment operation.

● Double Wind air circulation fan is to ensure the temperature balanced in shrinking area.

● Large air flow cooling system is to ensure rapid stereotypes.

● High temperature Teflon fiberglass conveyor belt, transmission smooth, high strength wear-resistant.

● frequency conversion stepless timing belt conveyor.

● Conveyor height can be produced according to user requirements, adjustment range ± 100mm

● feeding bottle machine meets the direction which the users required, may be extended or shortened

● wing-shaped stainless steel iron heating system is durable.
